Home >> Subaru >> 1988 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Idle Speed >> Idle Speed W/Computer Control Specifications

Idle Speed W/Computer Control Specifications

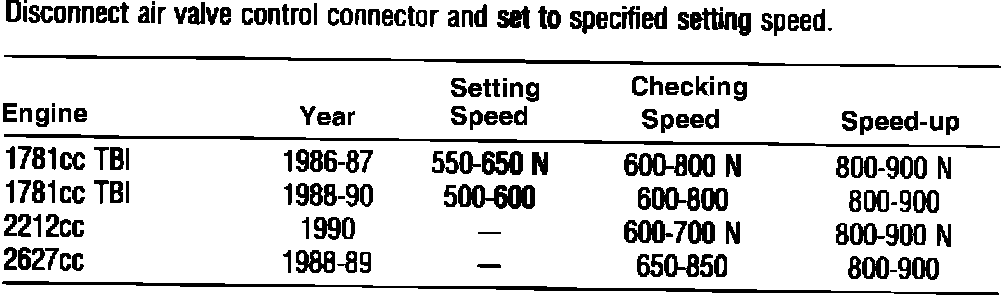

Fig. 6 Idle Speed W/Computer Control Specifications:
