Ignition Coil: Testing and Inspection

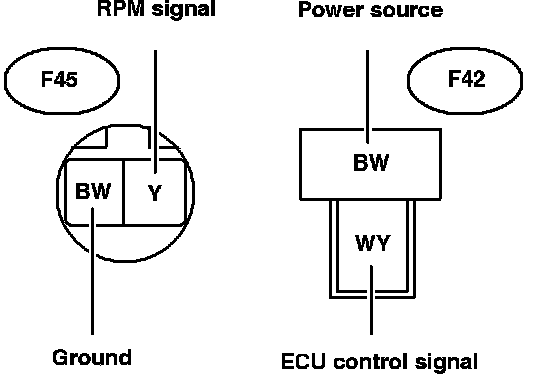

Ignition Coil Terminals:

1. Disconnect coil connector and remove coil from engine.
2. Measure resistance of coil primary and secondary windings as follows:

PRIMARY
Terminal(connector): Resistance:
F42(BW) & F45(Y) 0.84 - 102 Ohms

SECONDARY
Terminal: Resistance:
F42(BW) & secondary 8k - 12k Ohms
