L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Testing and Inspection
Fuel Pump: Testing and Inspection

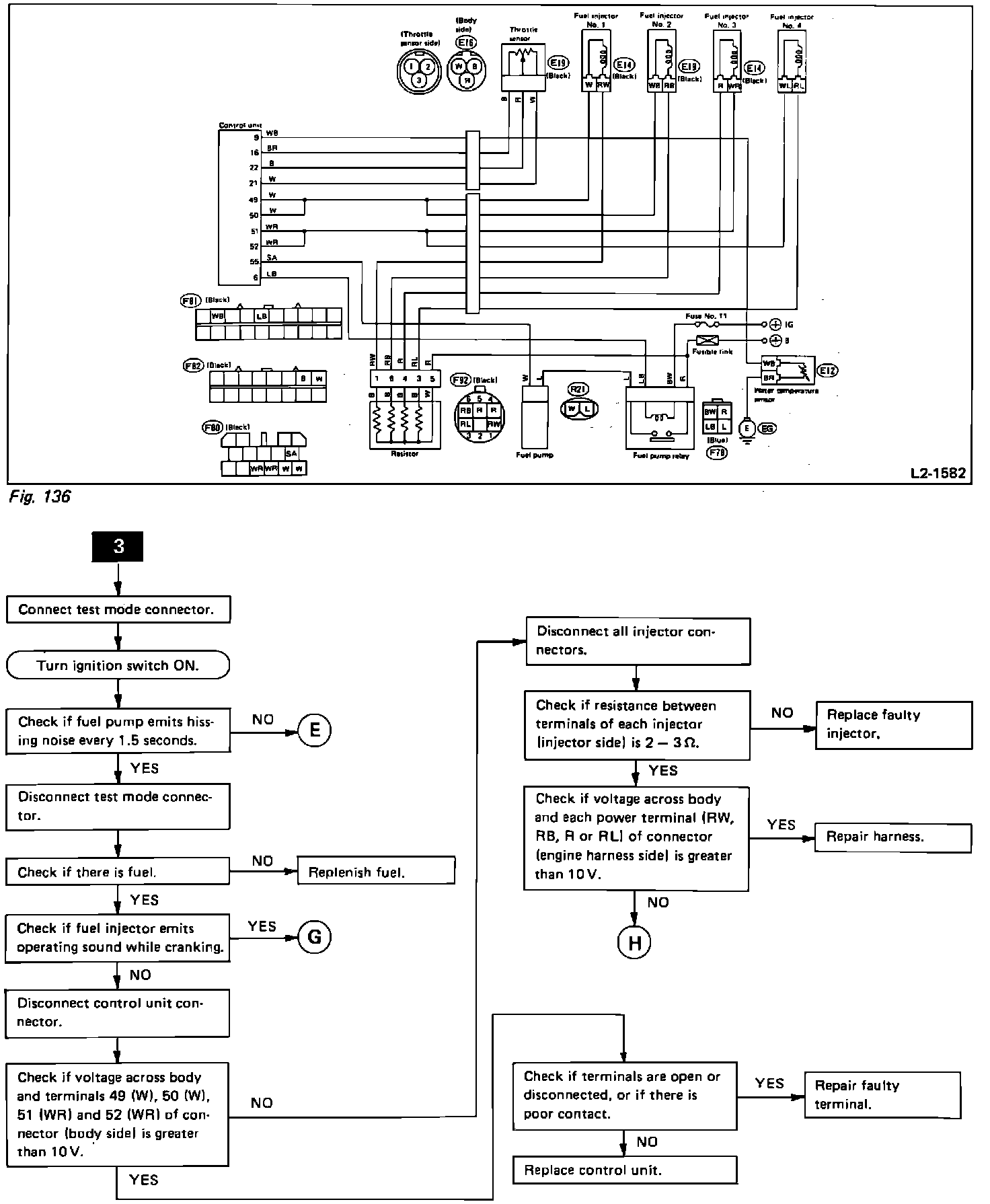

Fuel Pump Circuit Diagnostic Chart 1 Of 5:

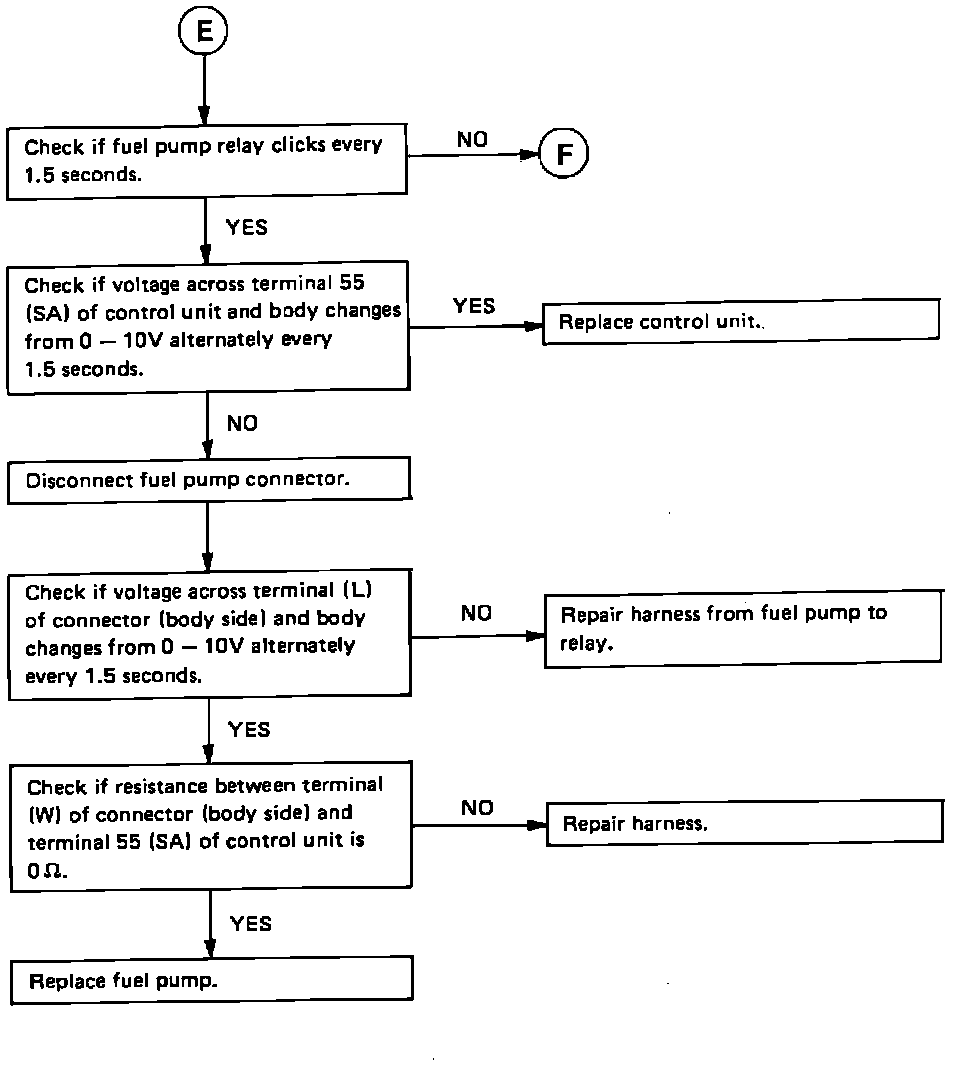

Fuel Pump Circuit Diagnostic Chart 2 Of 5:

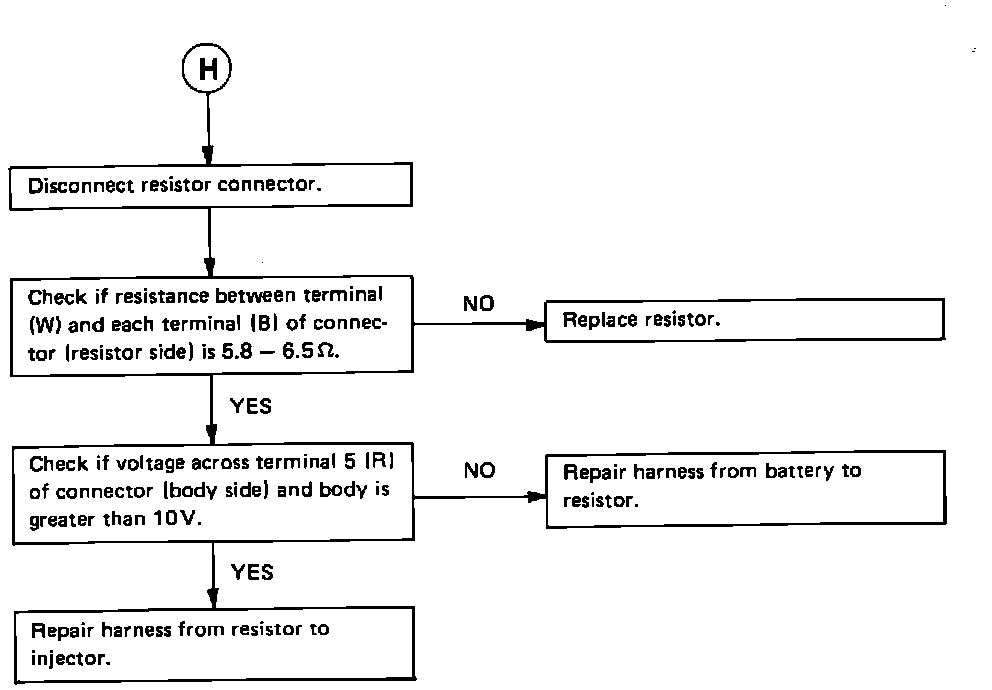

Fuel Pump Circuit Diagnostic Chart 3 Of 5:

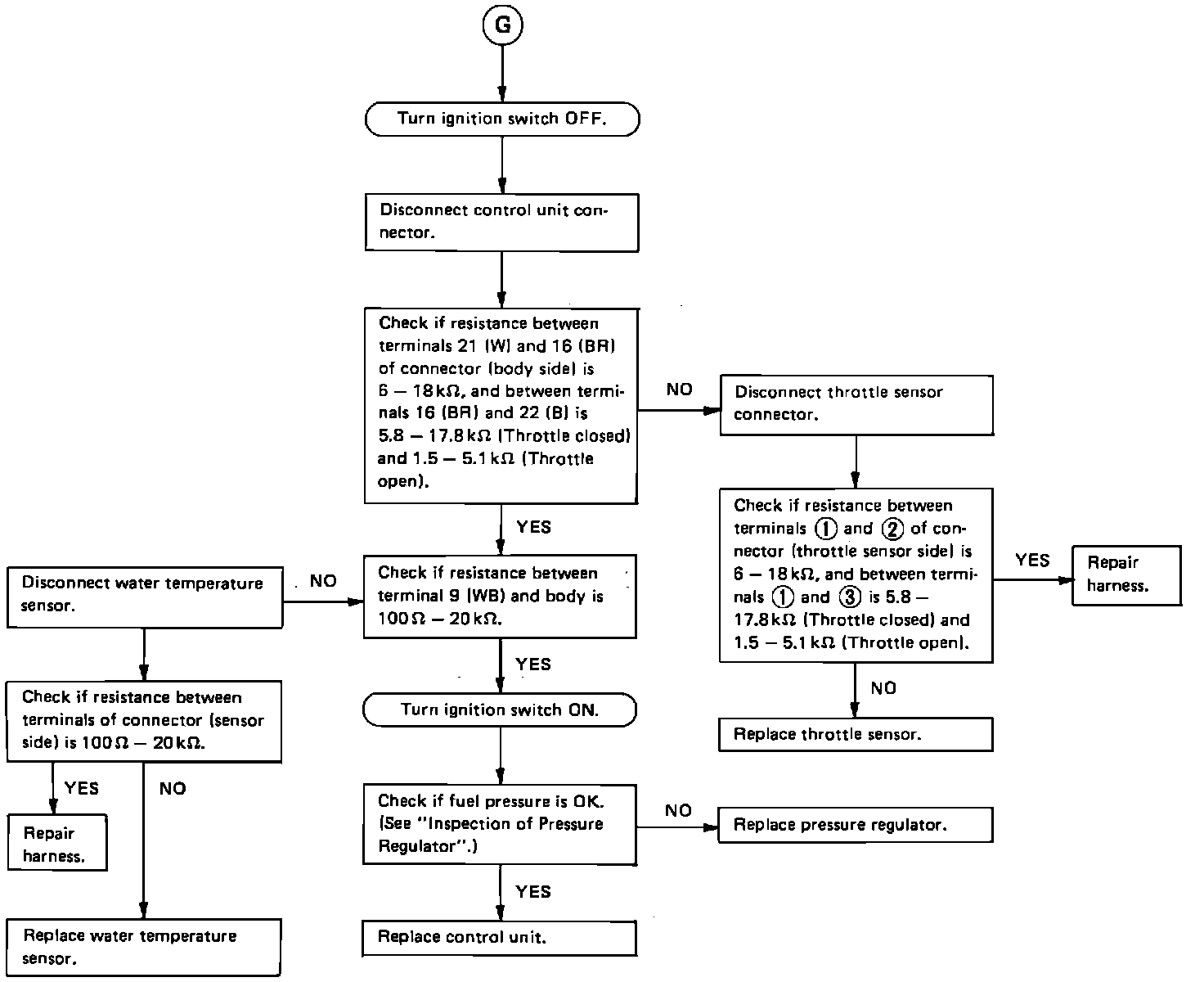

Fuel Pump Circuit Diagnostic Chart 4 Of 5:

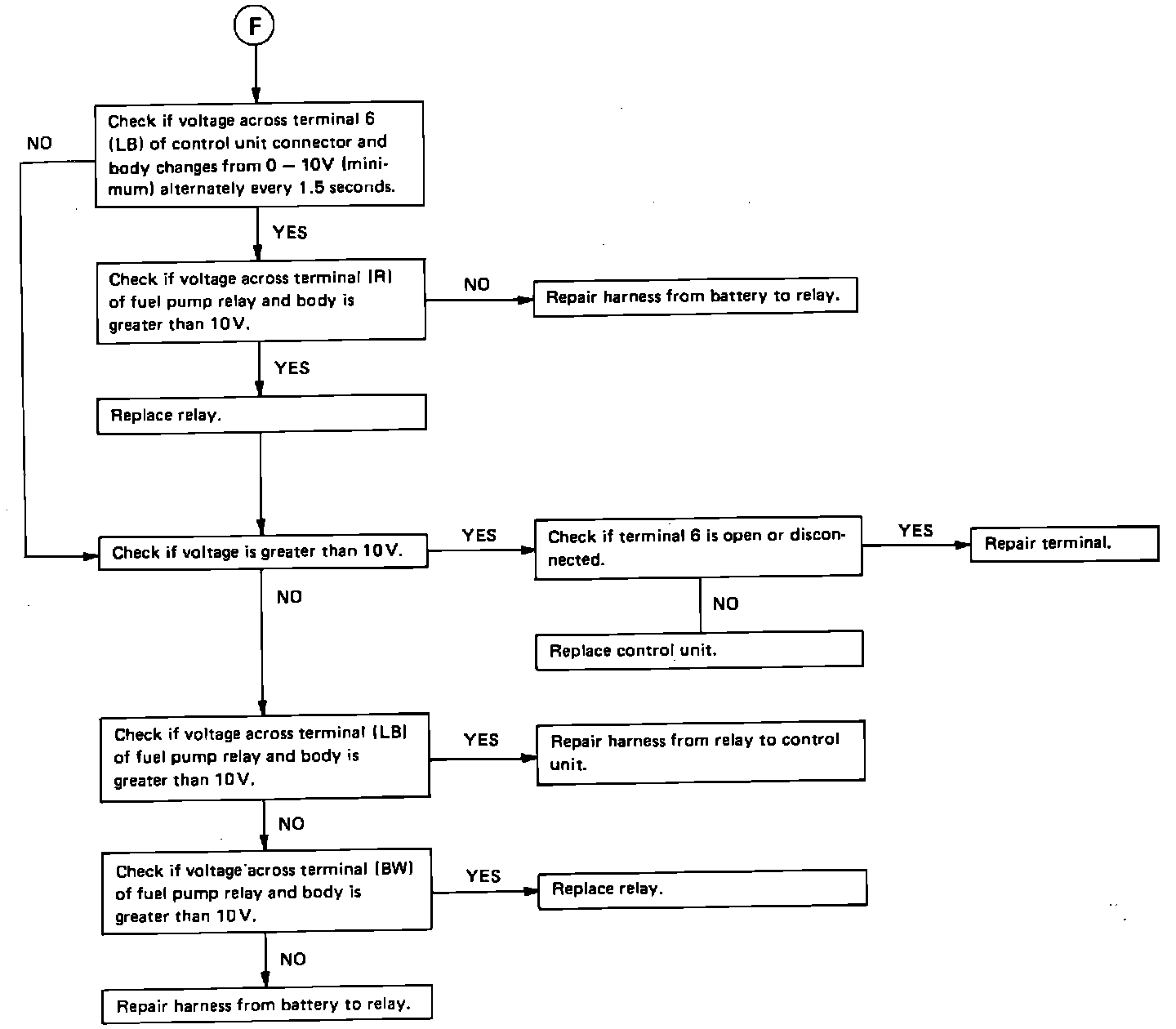

Fuel Pump Circuit Diagnostic Chart 5 Of 5:
