Ignition Control System
Ignition Control System

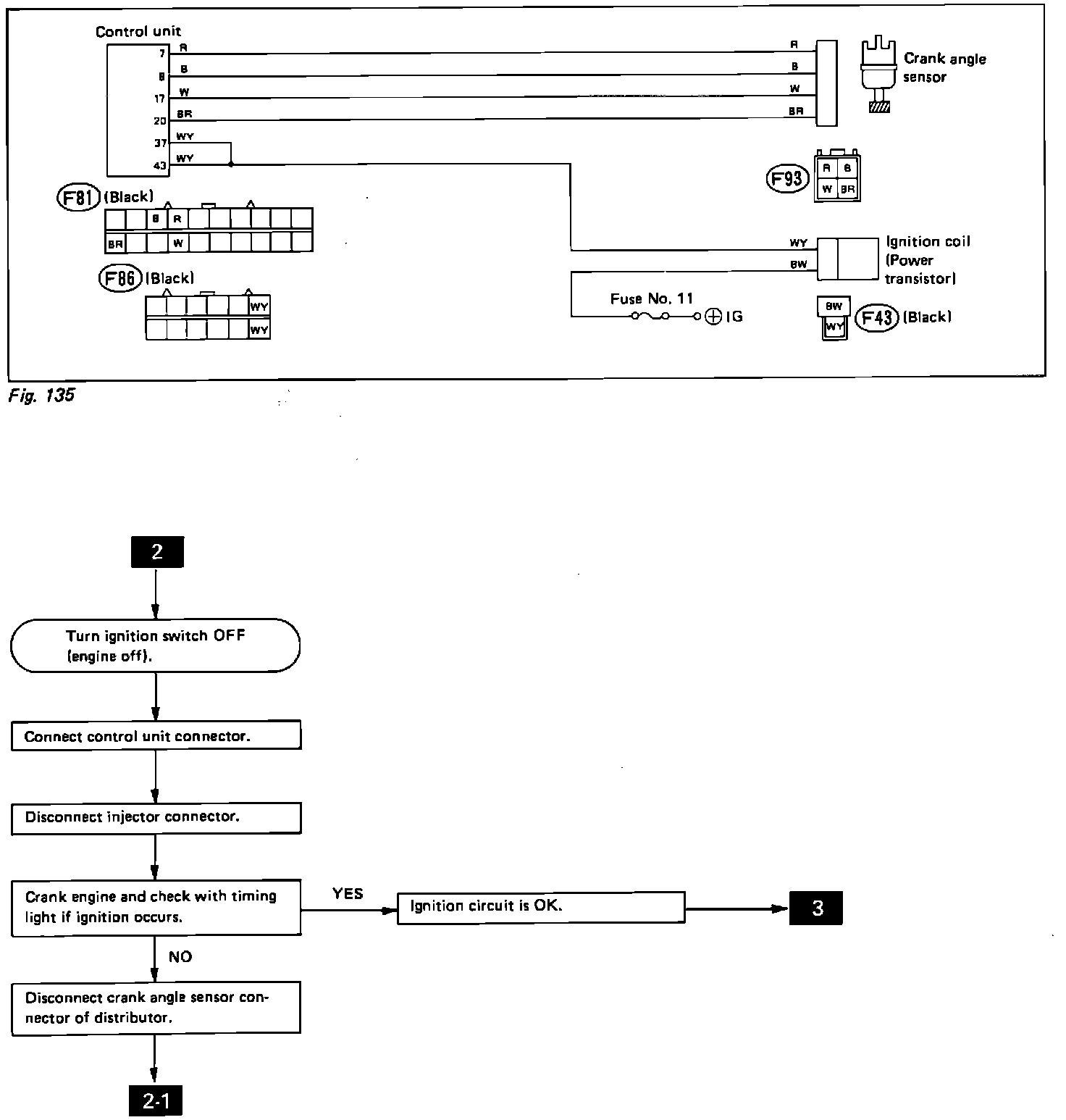

Ignition Control System Diagnostic Chart 1 Of 3:

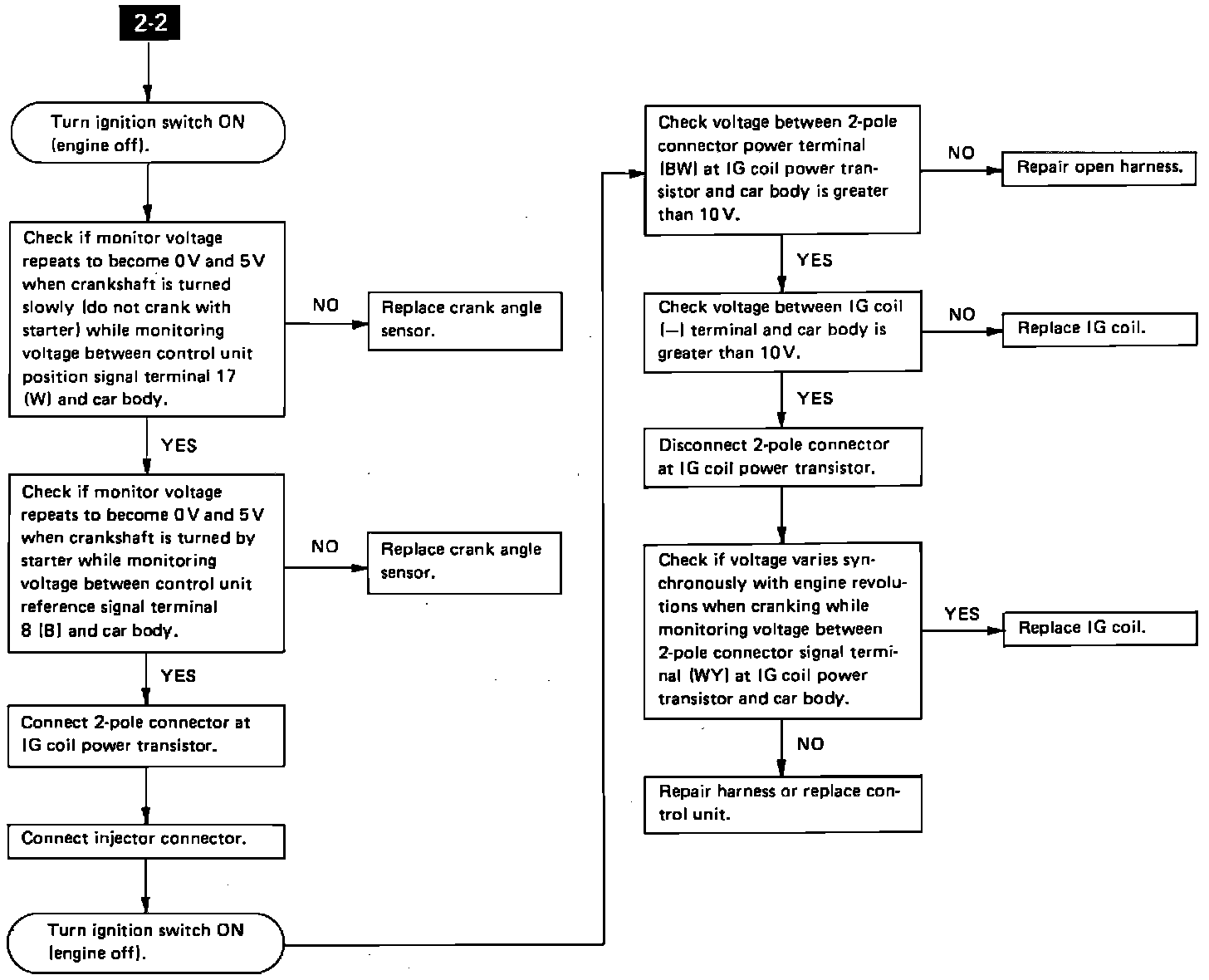

Ignition Control System Diagnostic Chart 2 Of 3:
Ignition Control System Diagnostic Chart 3 Of 3:
