Subaru
>>
1988
>>
L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ECM Power and Ground Supply
ECM Power and Ground Supply

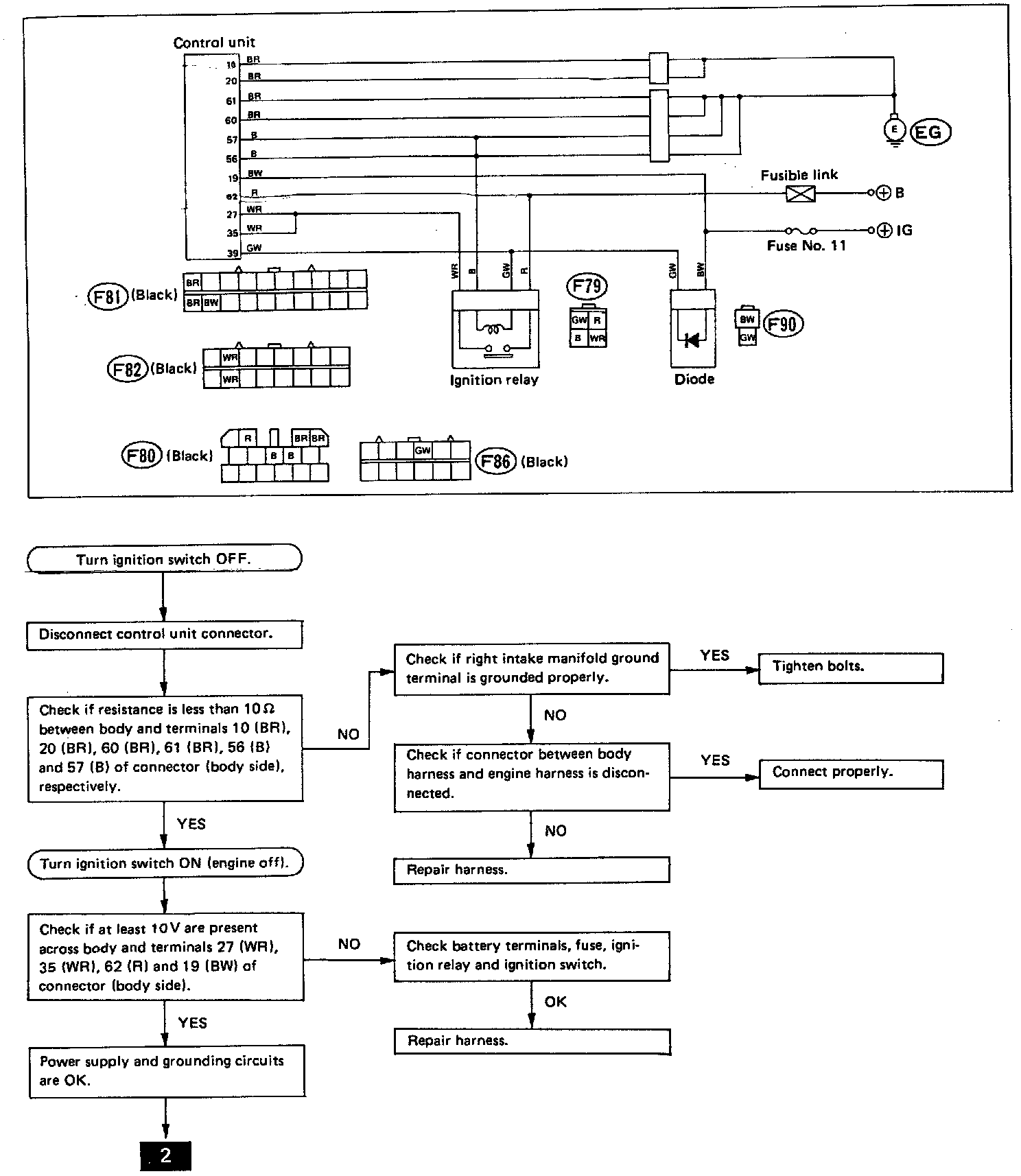

Fig. 25 EGI system troubleshooting chart. Ground & control unit power supply:
