Home >> Subaru >> 1988 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Lighting System Except XT >> Analog Meter Less Tachometer

Analog Meter Less Tachometer

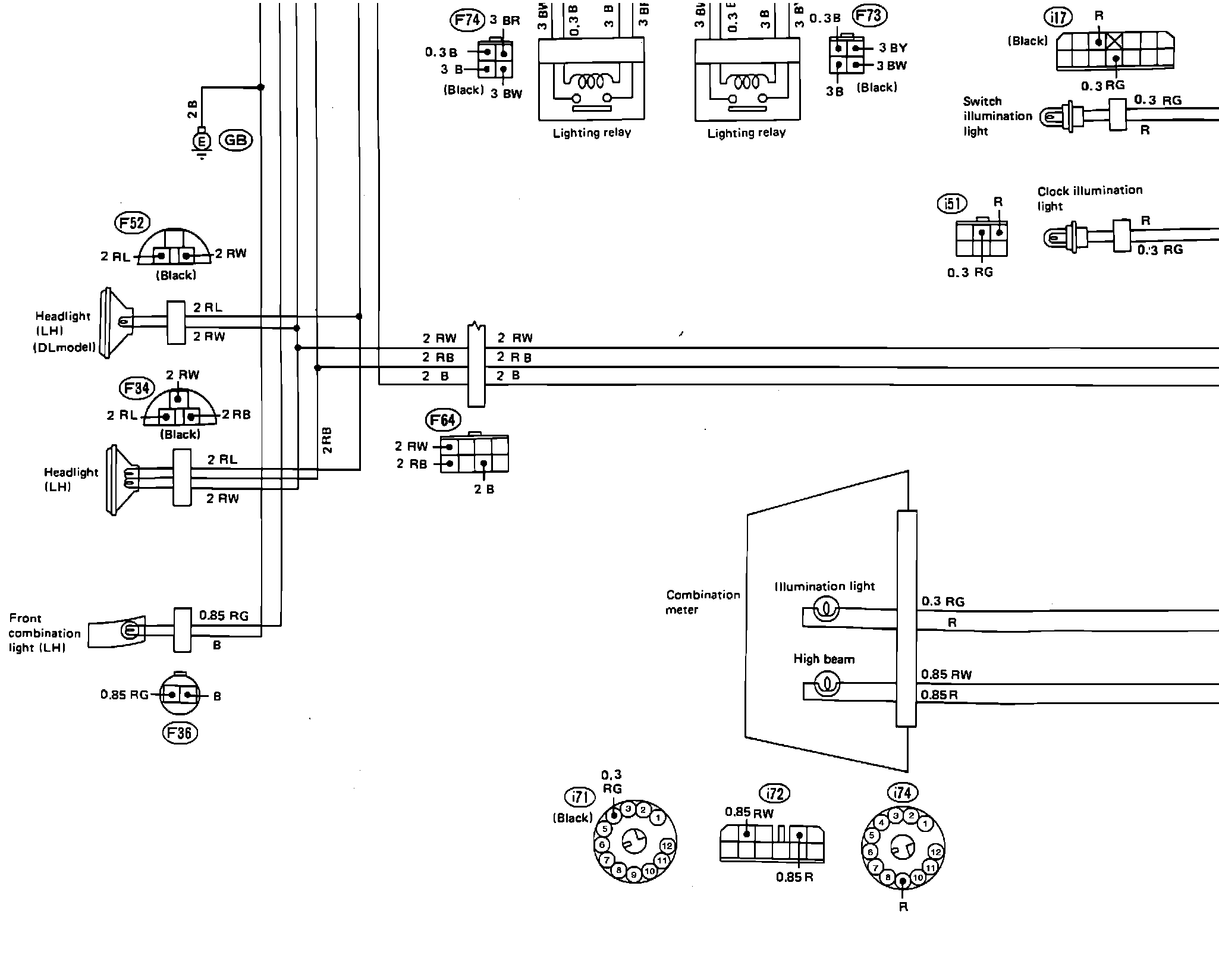

�#=<�\=<�=<Lighting System Wiring Circuit. Analog Meter Less Tachometer:
