Hazard Warning Flasher: Locations

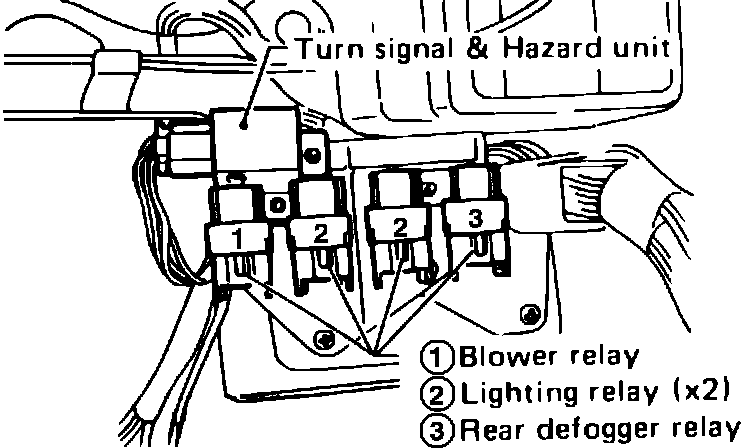

Blower, Lighting And Defogger Relay:






The turn signal and hazard flasher unit is in the relay center.
