Home >> Subaru >> 1988 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Air Conditioning Wiring >> Except XT >> Hitachi Compressor

Hitachi Compressor

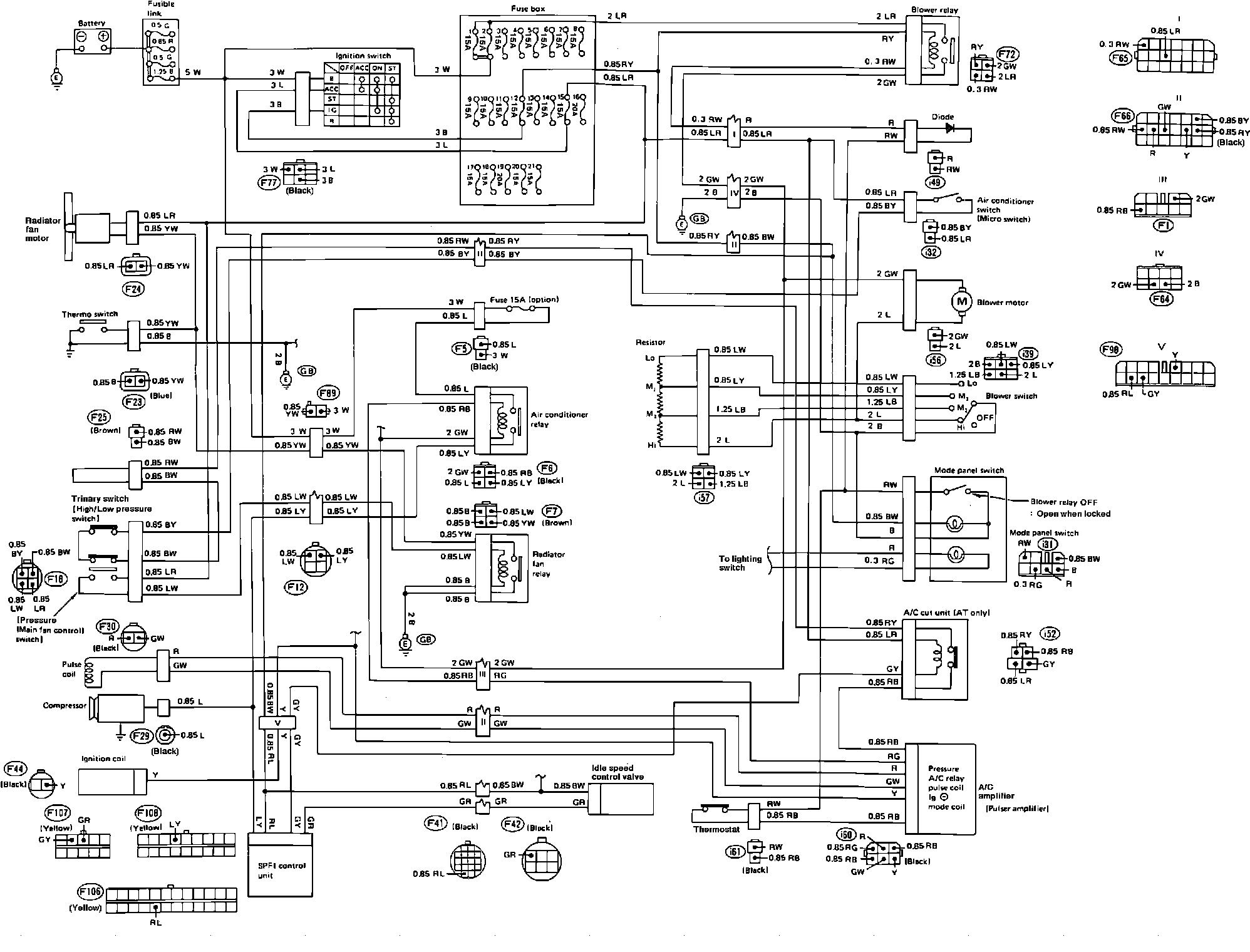

Air Conditioning Wiring Circuit (Hitachi Compressor):
