L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Except XT
Except XT

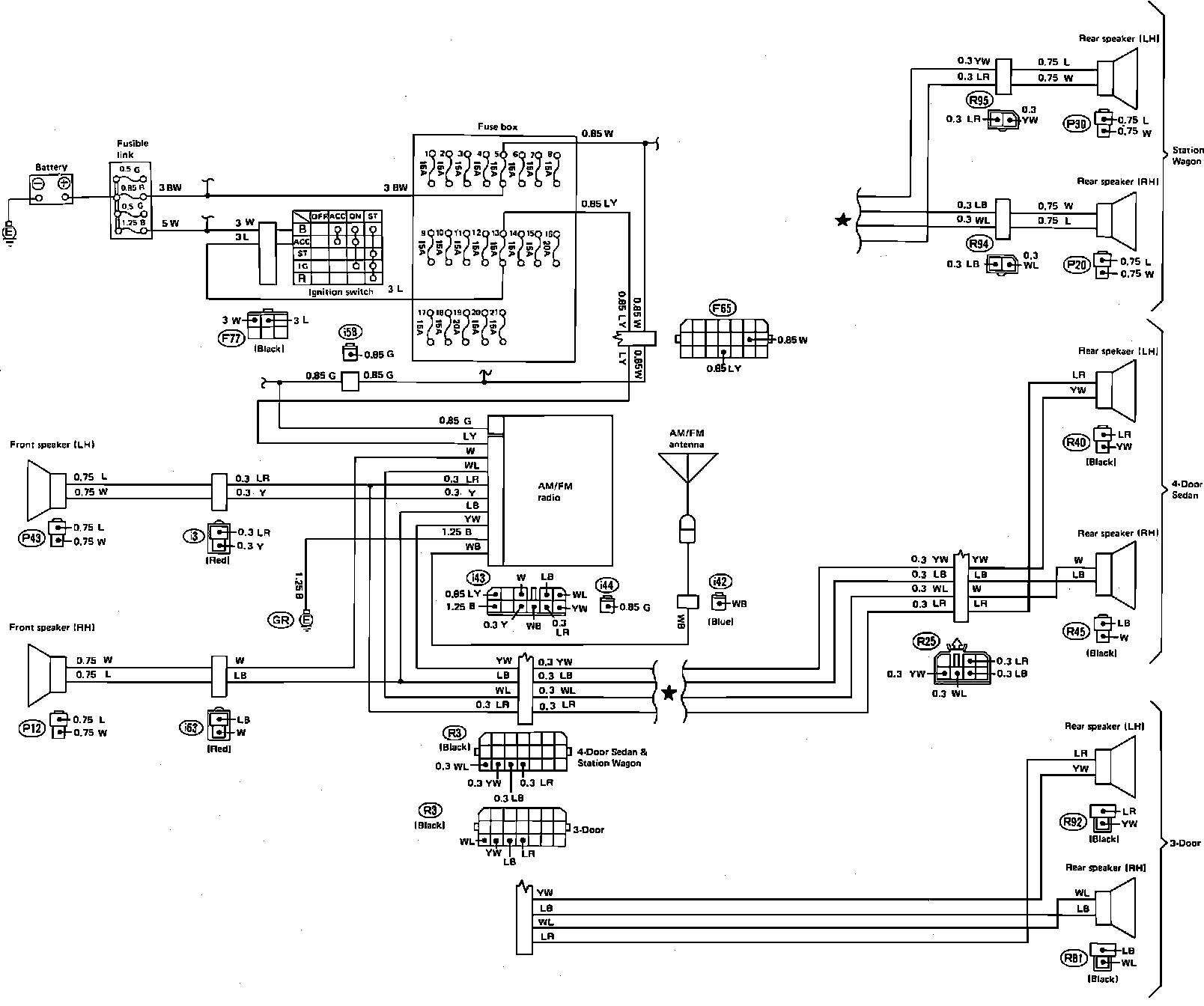

Radio Wiring Circuit:
