Home >> Subaru >> 1988 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body & Chassis Wiring >> Except XT >> W/Single-Port Fuel Injection

W/Single-Port Fuel Injection

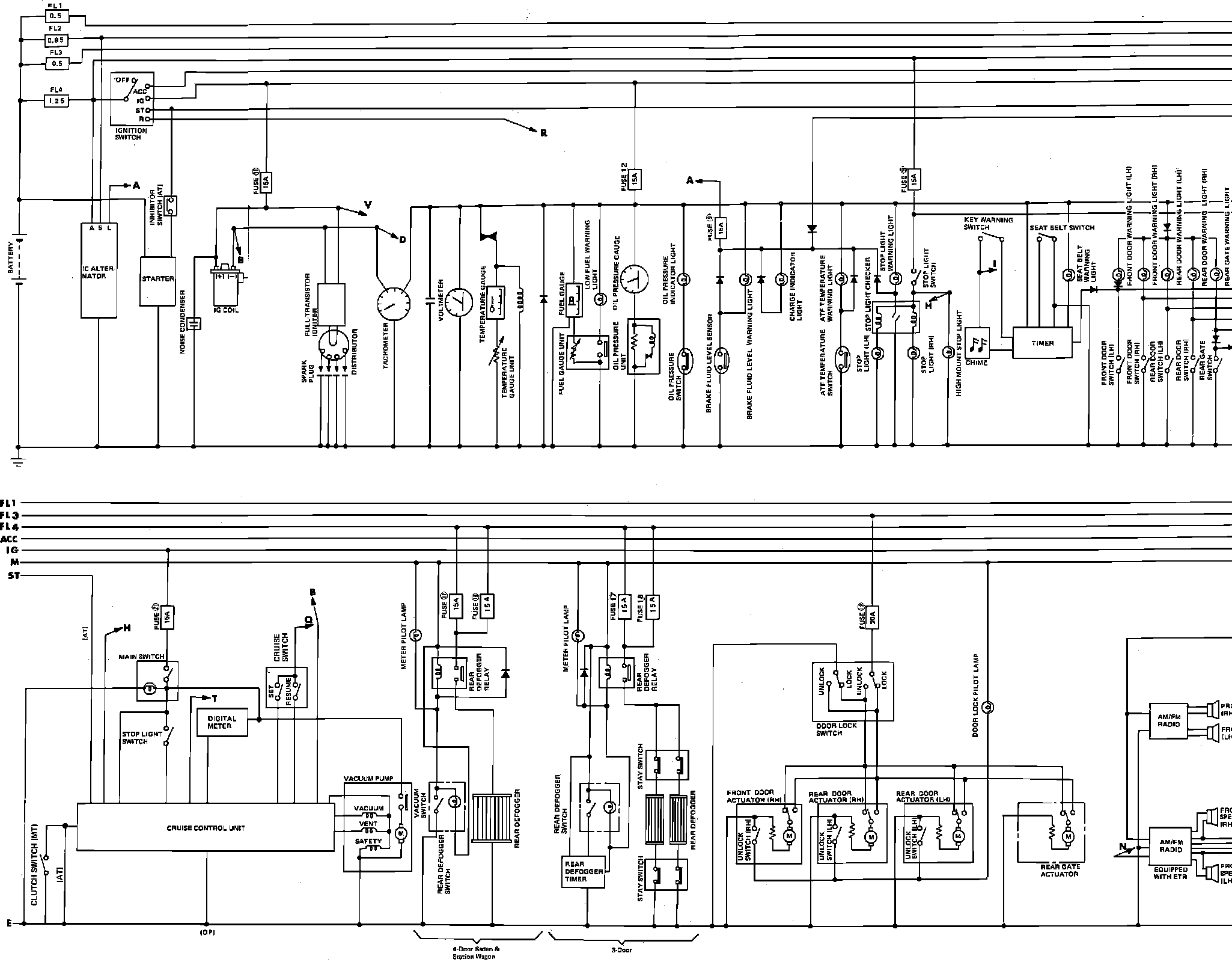

�L >ٻ >Complete Body & Chassis Wiring Circuit. Carbureted:
