Home >> Subaru >> 1988 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 22

DTC 22

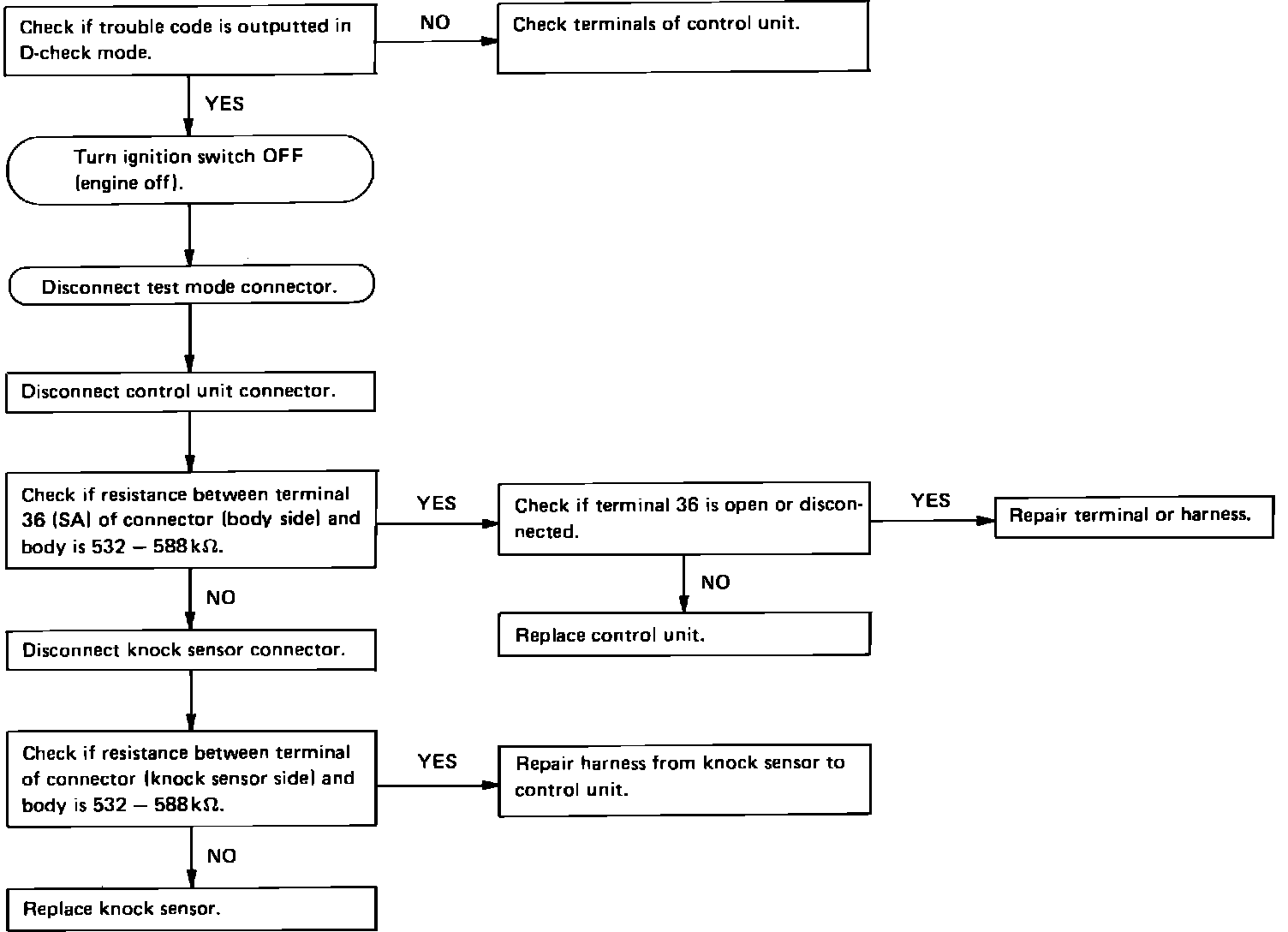

Fig. 38 EGI system troubleshooting chart. Knock sensor (trouble code 22).:
