L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 14
DTC 14

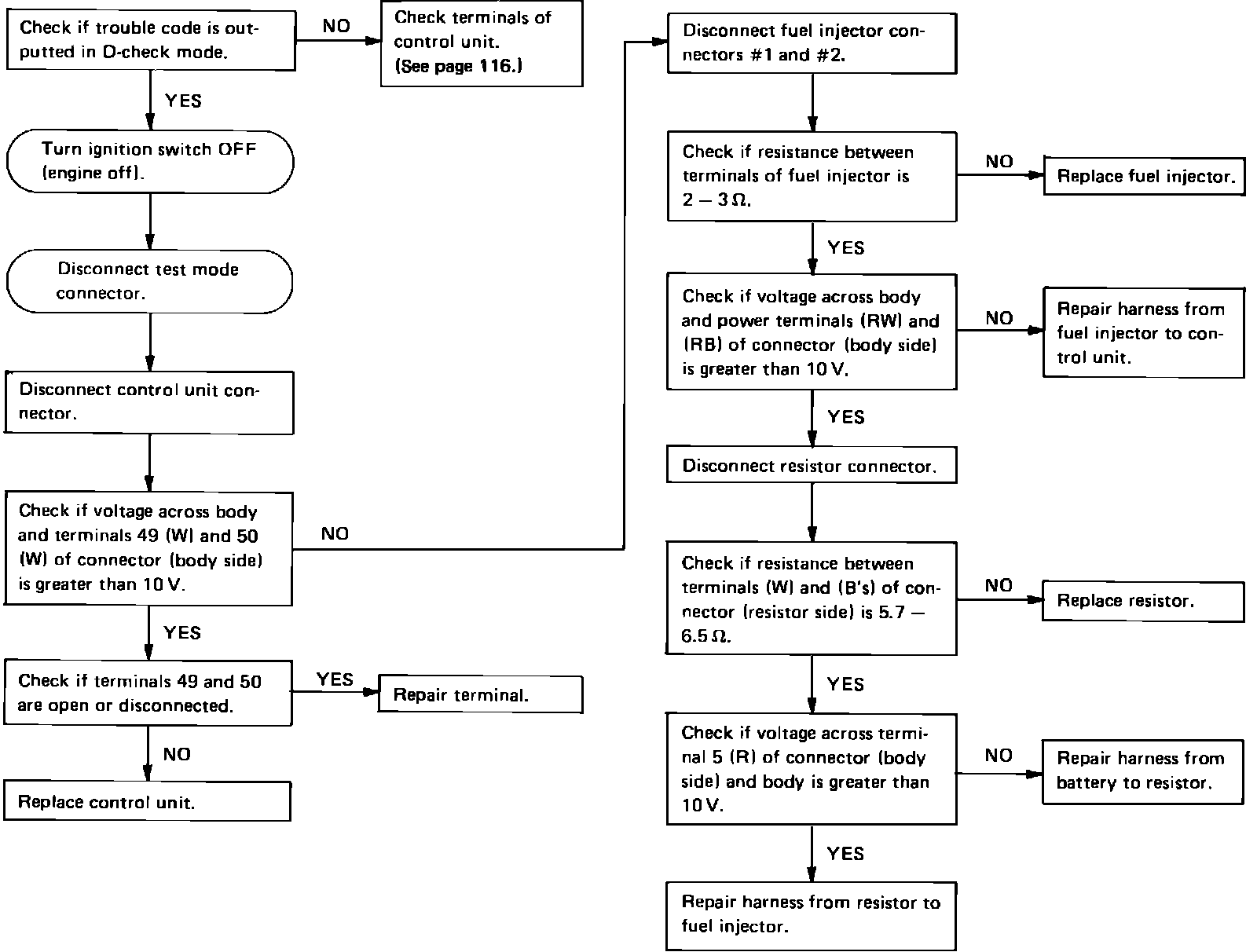

Fig. 33 EGI system troubleshooting chart. Fuel injector (trouble code 14).:

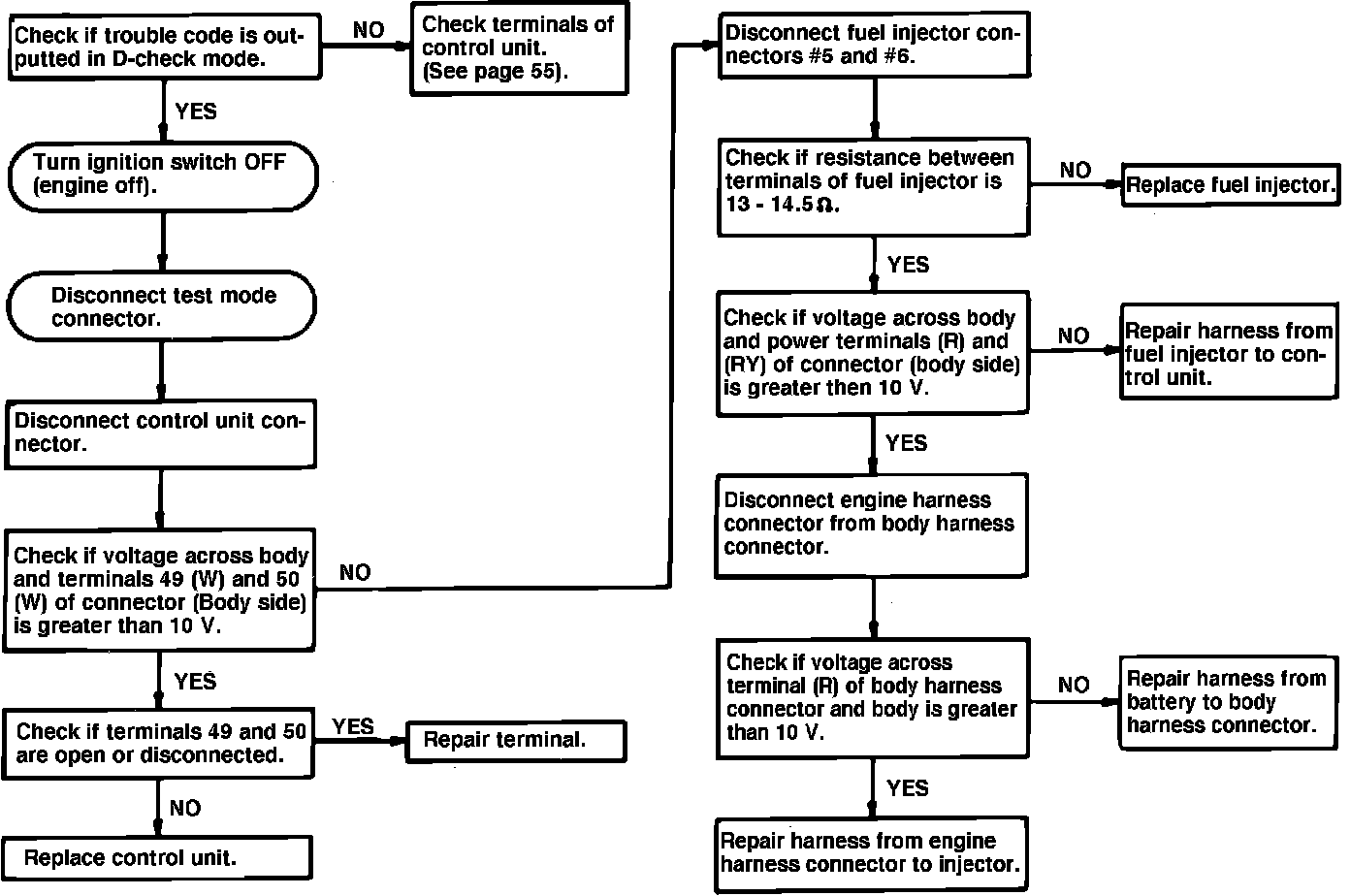

Fig. 34 EGI system troubleshooting chart. Fuel injector (trouble code 14).:
