Images

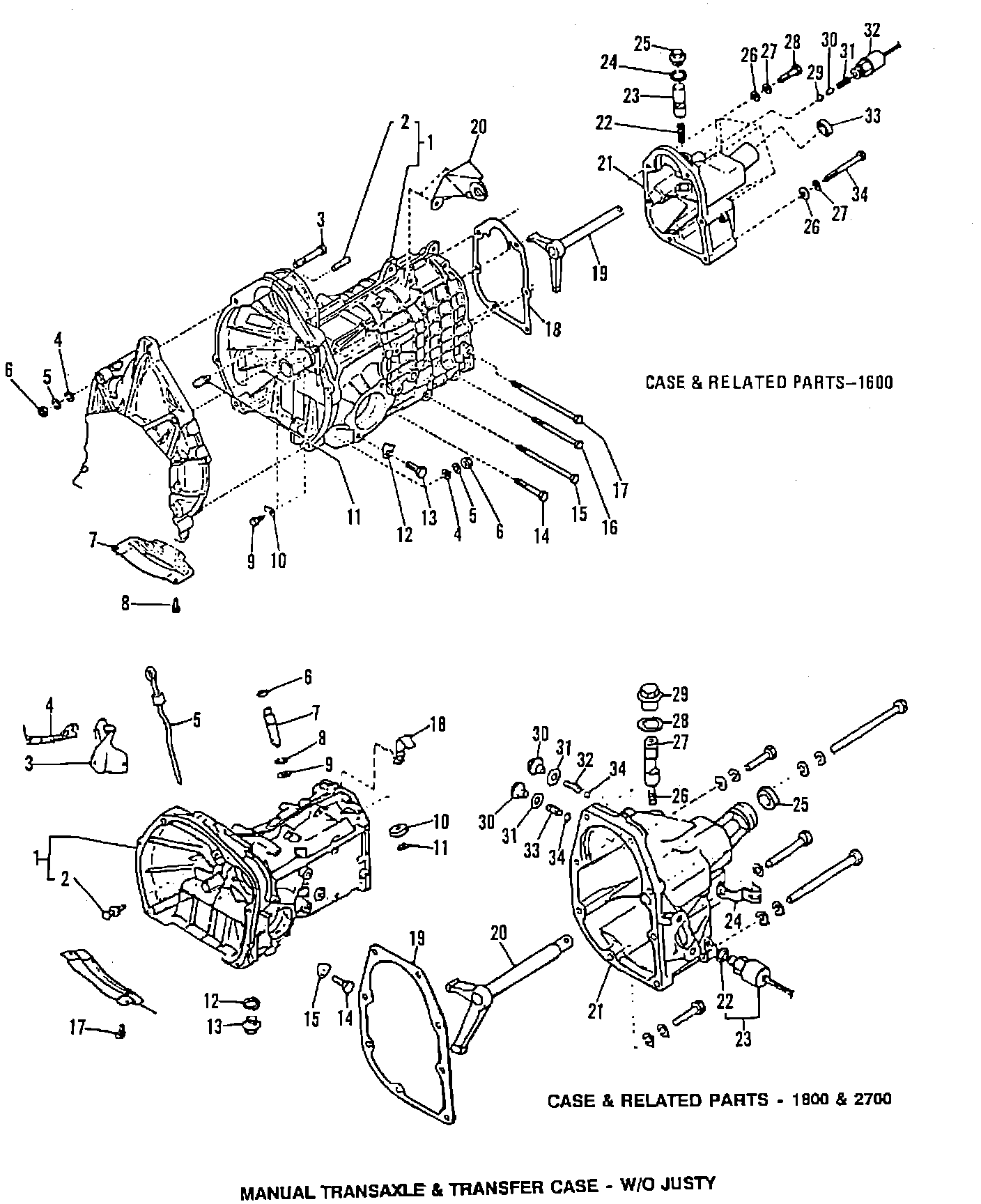

Case & Related Parts:

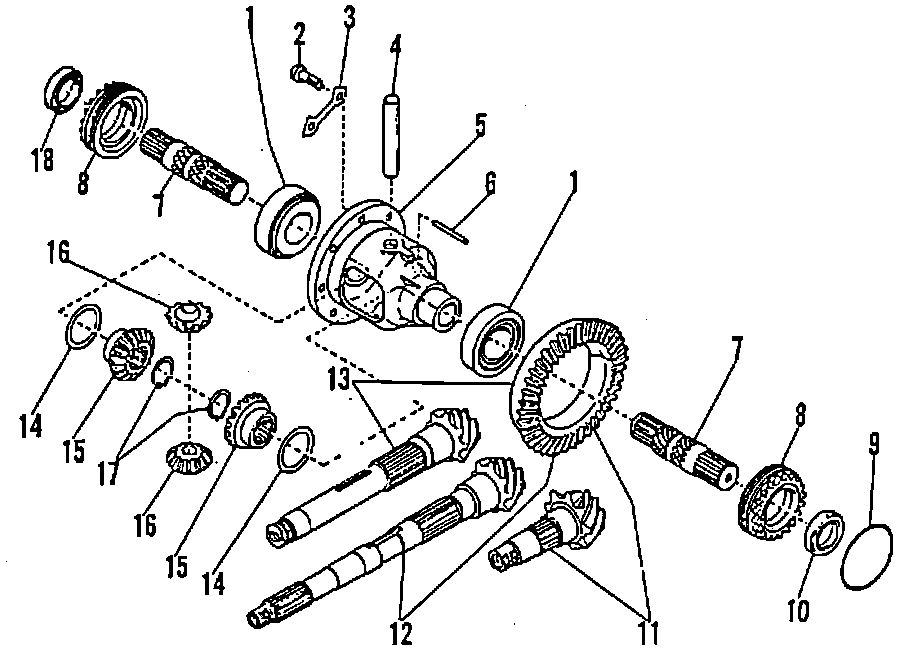

Differential Gear:



Gears & Shafts, Pinion & Gears:



Gears & Shafts, Mainshaft & Gears:

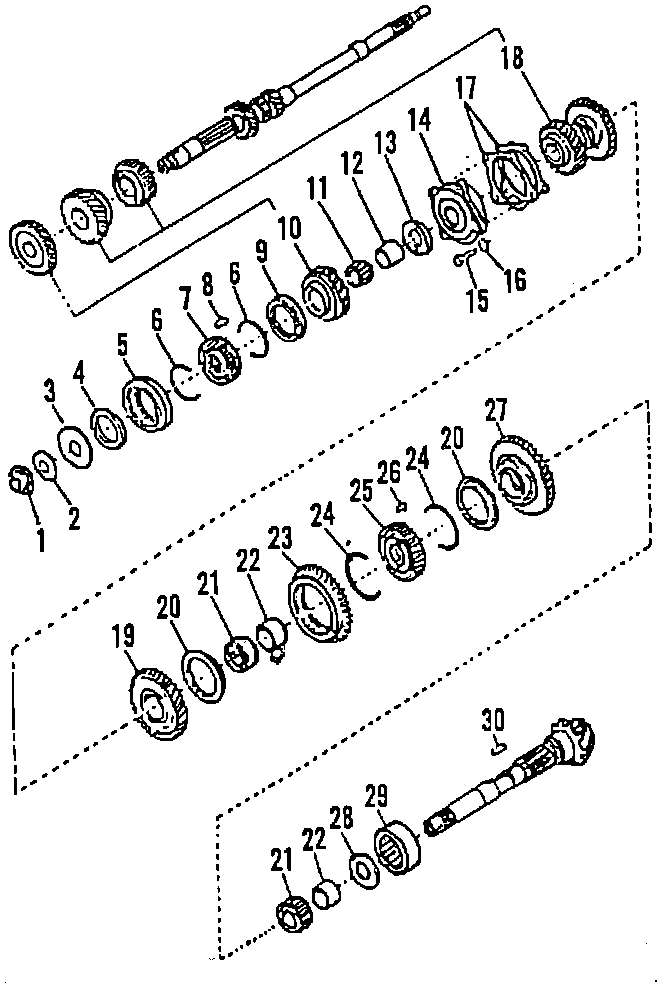

Gears & Shafts, 4 Speed:

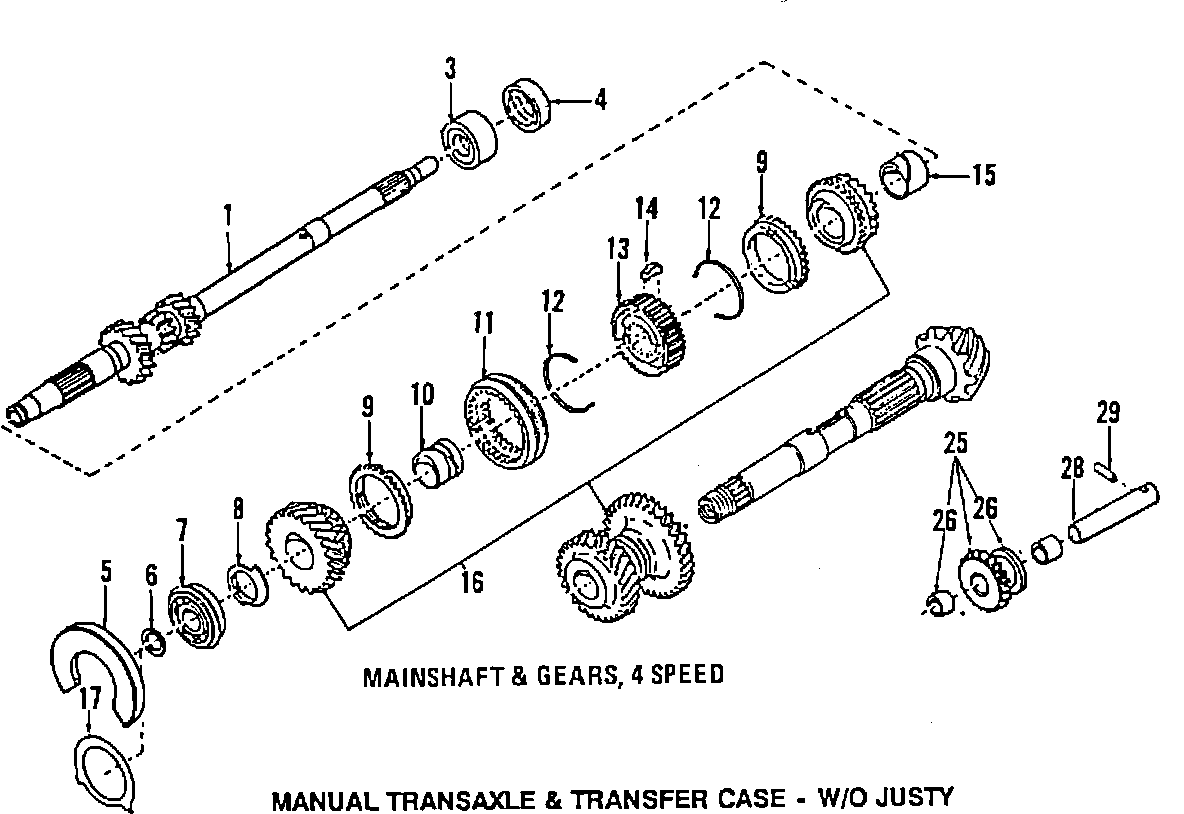

Mainshaft & Gears, 4 Speed:

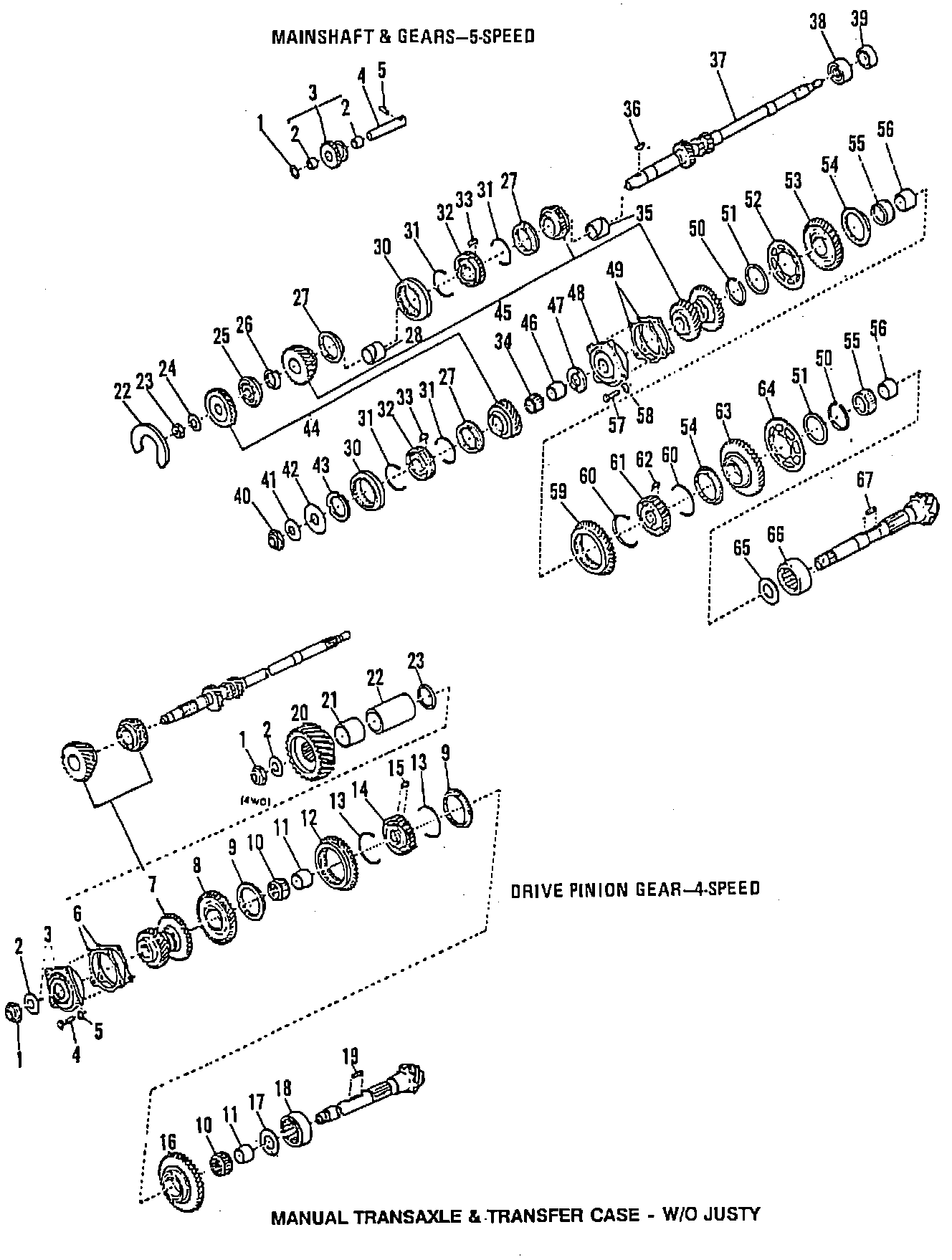

Mainshaft & Gears, 5 Speed:
