Hitachi

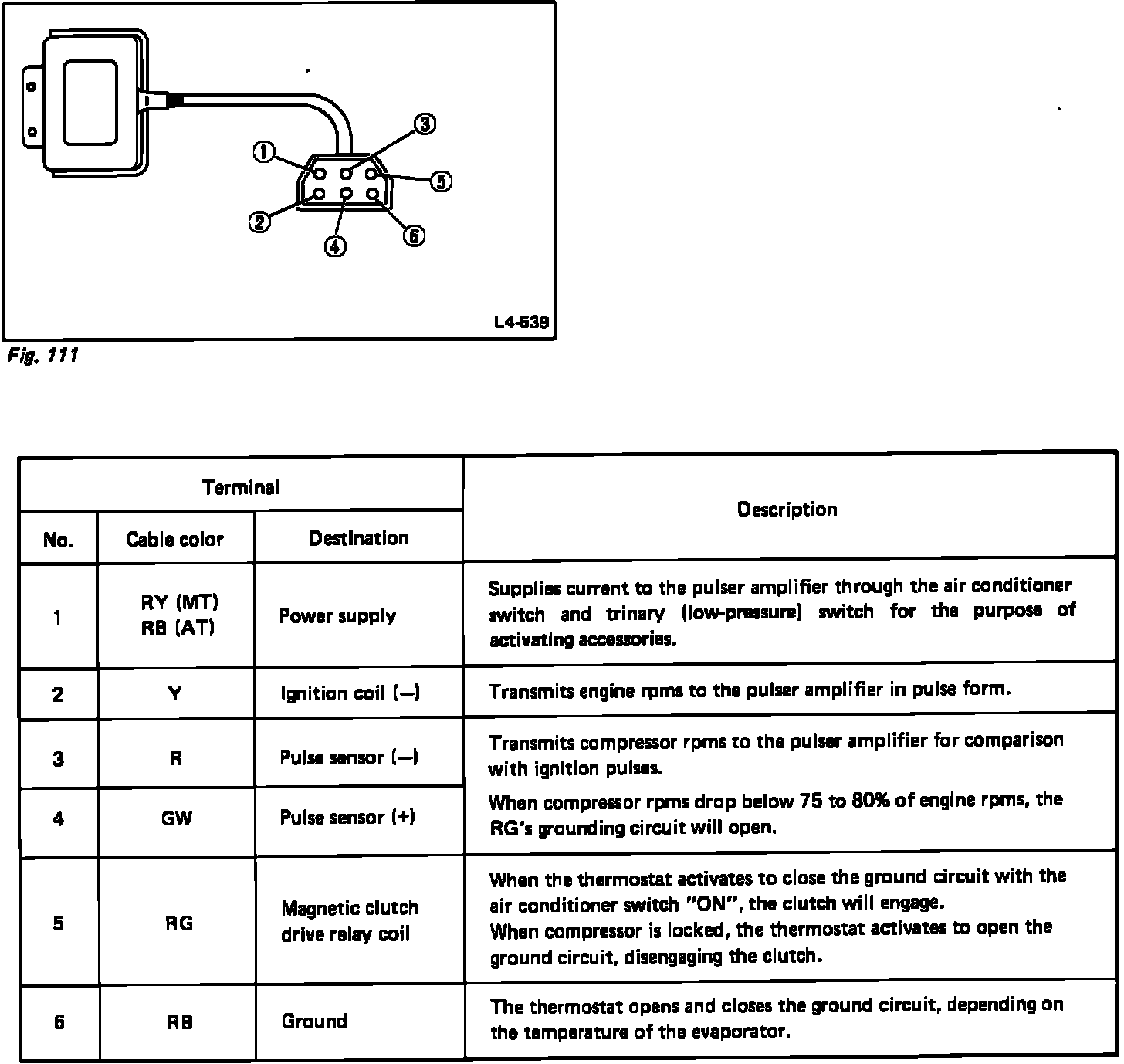

Pulser Amplifier:

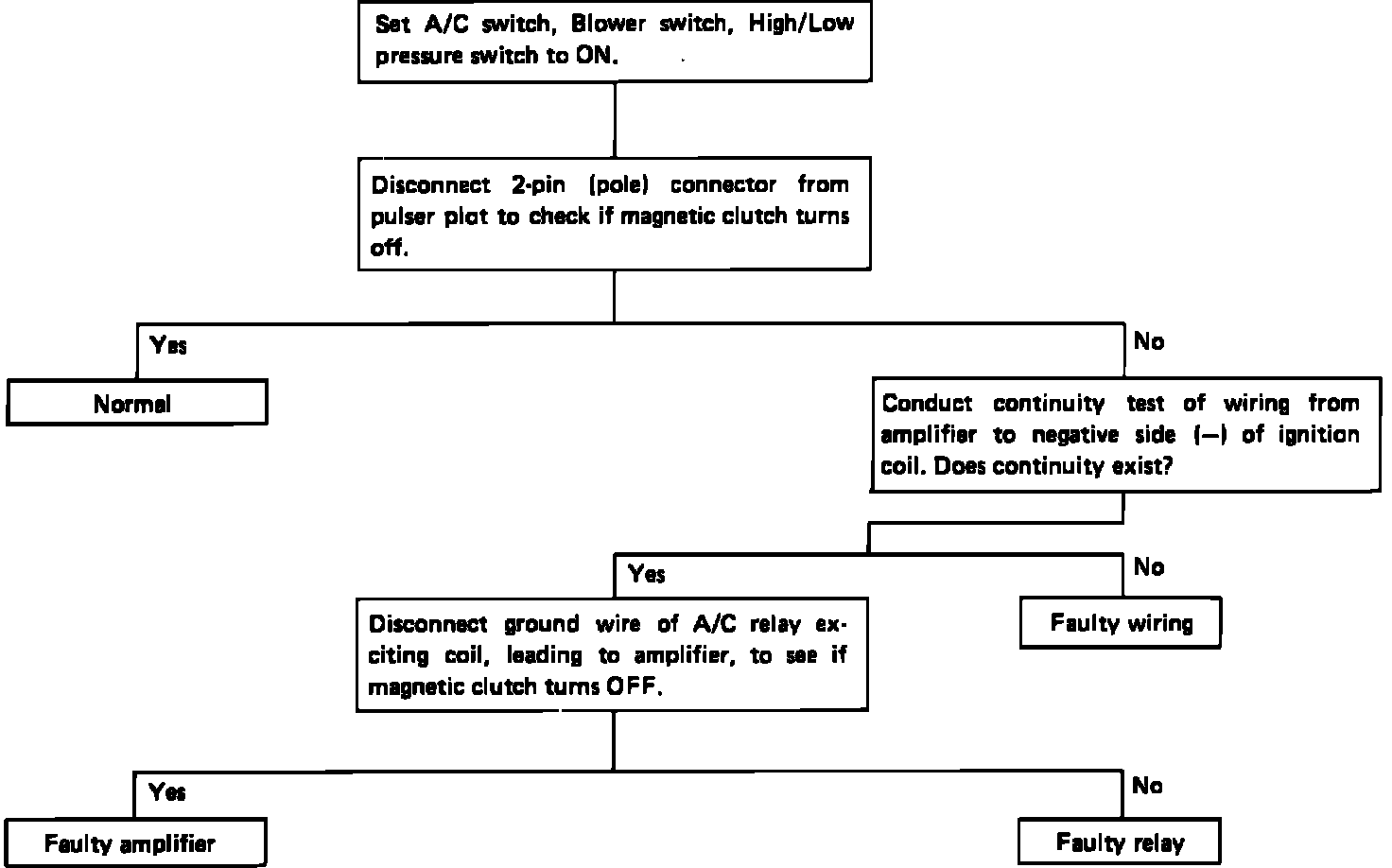

Pulser And Related Circuits (Part 1):

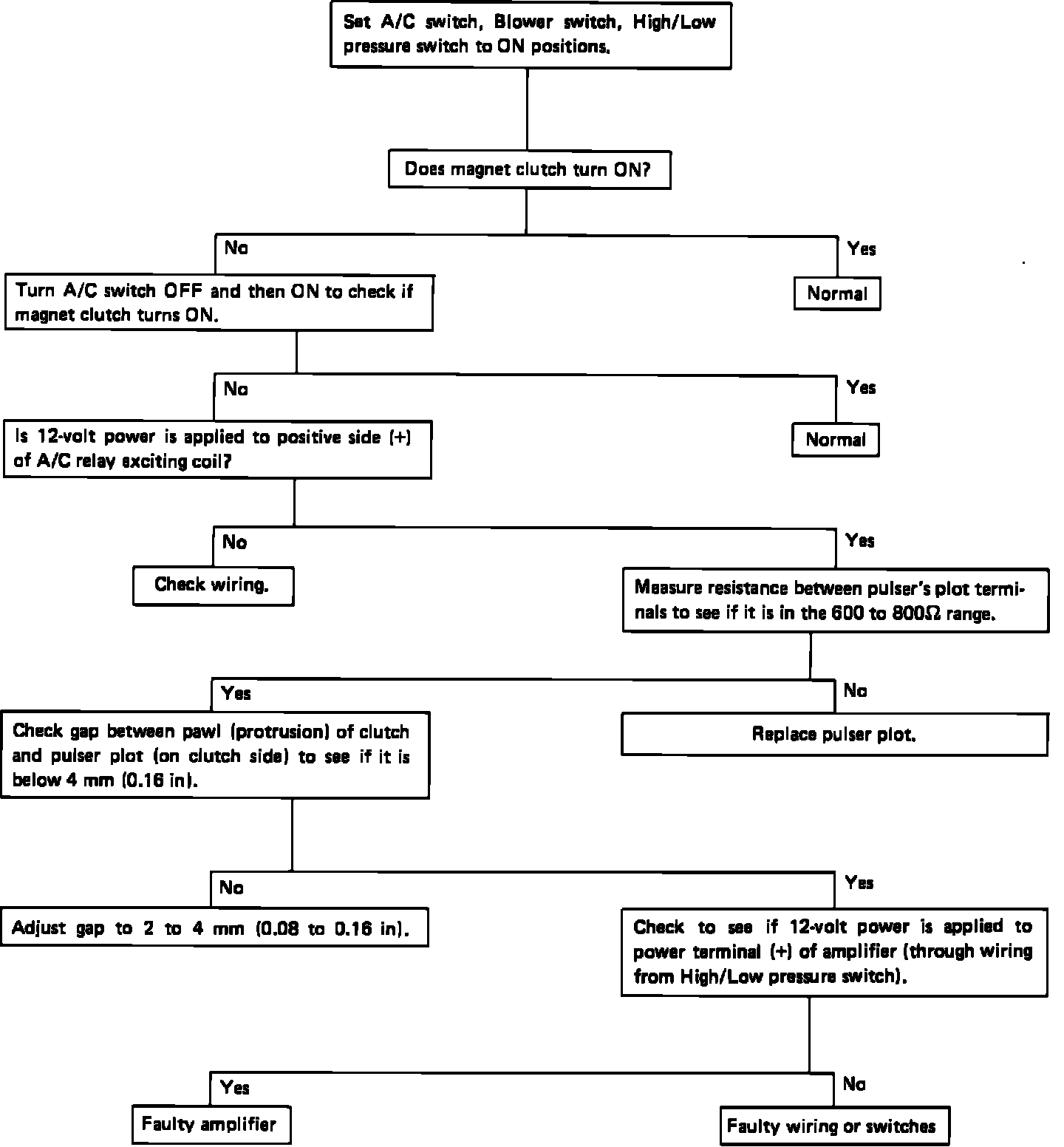

Pulser And Related Circuits (Part 2):
