Removal and Installation

Evaporator





REMOVAL AND INSTALLATION
1) Remove spare tire.
2) Disconnect battery negative terminal.
3) Discharge refrigerant.

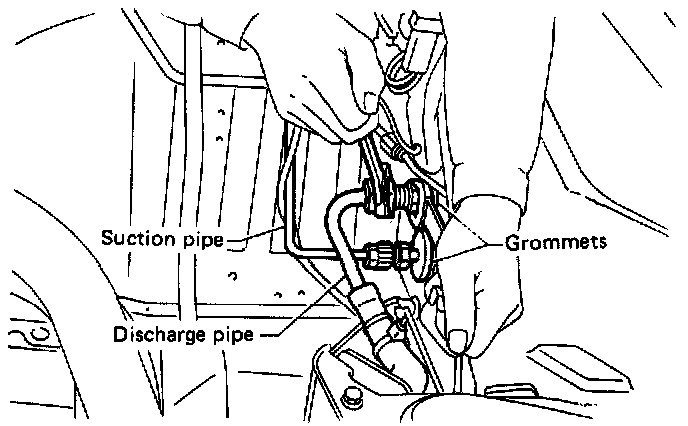

4) Disconnect discharge pipe, suction pipe and grommets.
5) Remove under cover.
6) Remove pocket ASSY.
7) Disconnect the harness connector from evaporator.
8) After removing two bands, remove evaporator.
9) Install the evaporator in the reverse order of removal.
When installing the evaporator in the car body, make sure the wiring harness and vacuum hose do not get caught between the body part.
