L-Series Sedan (4 Door) 2WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster / Carrier
>>
Except XT
>>
Fuel Injection
>>
With Tachometer
With Tachometer

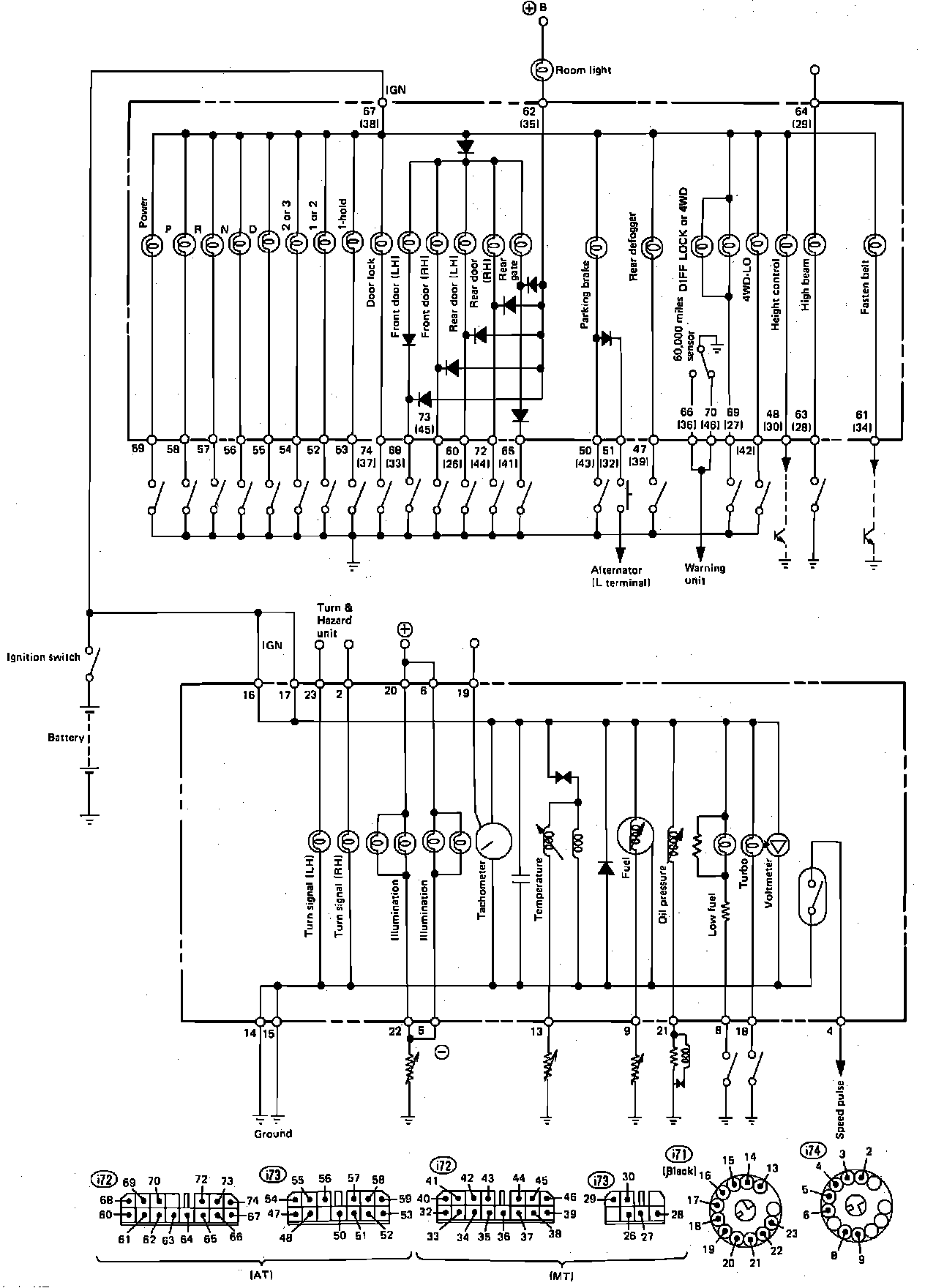

Instrument Panel Wiring Circuit With Tachometer. Fuel Injected:
