L-Series Sedan (4 Door) 2WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 15
DTC 15
Fig. 35 EGI system troubleshooting chart. Fuel injector (trouble code 15).:

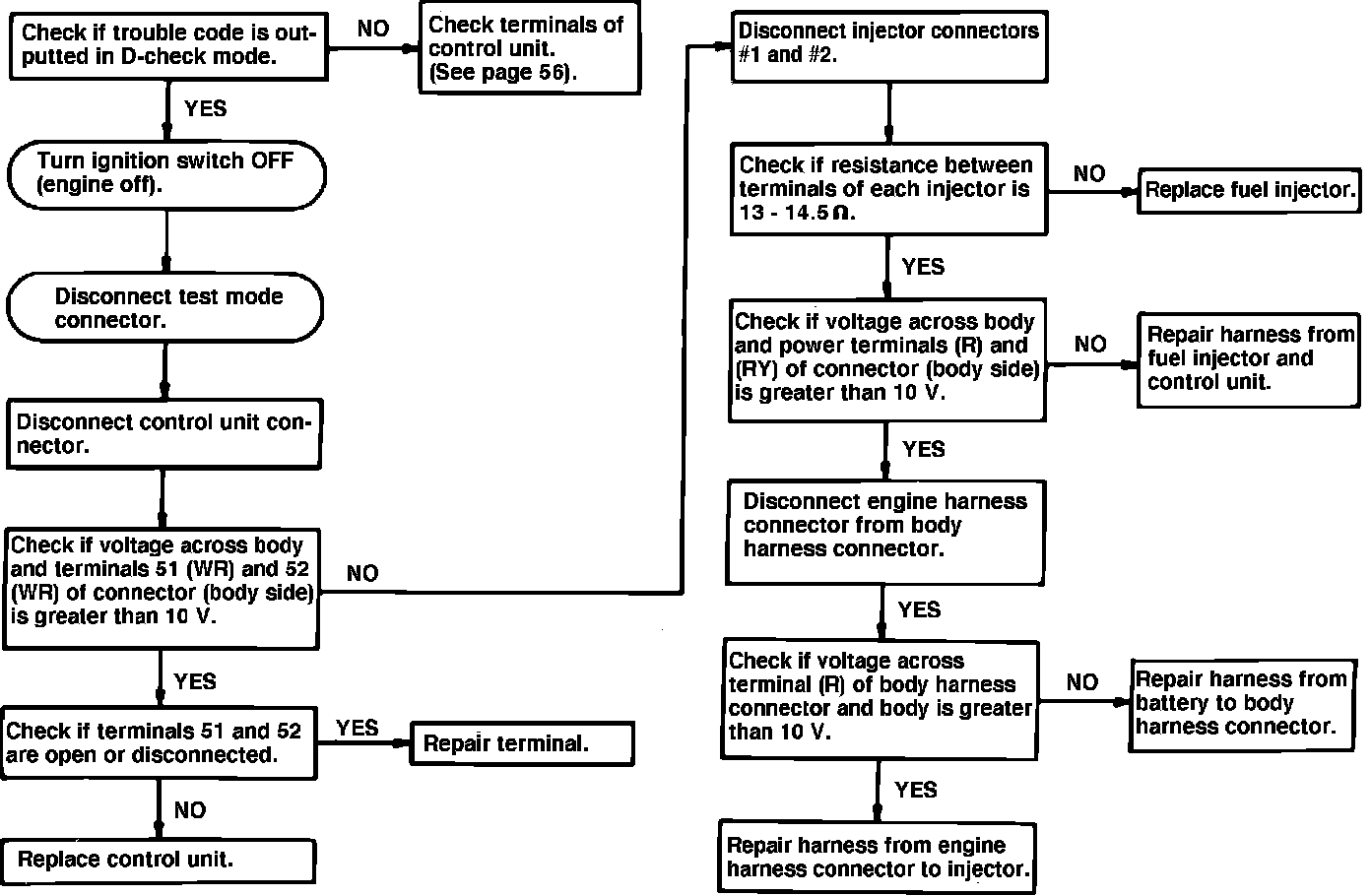

Fig. 36 EGI system troubleshooting chart. Fuel injector (trouble code 15).:
