L-Series Sedan (3 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
Transfer Case Torque Data
Transfer Case Torque Data

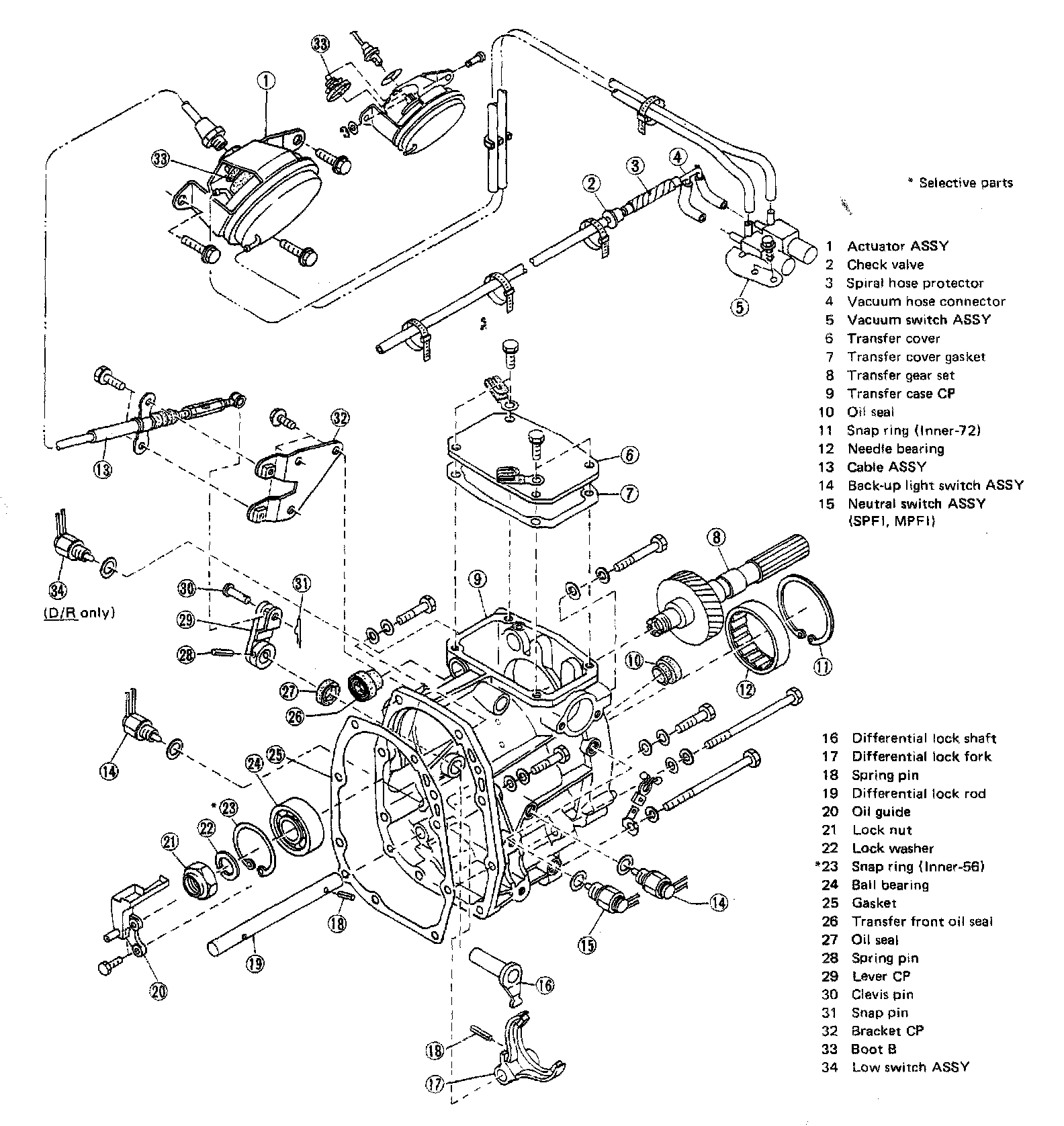

5-spd M/T, Transfer Case & Transfer Control System (Full-Time 4WD):

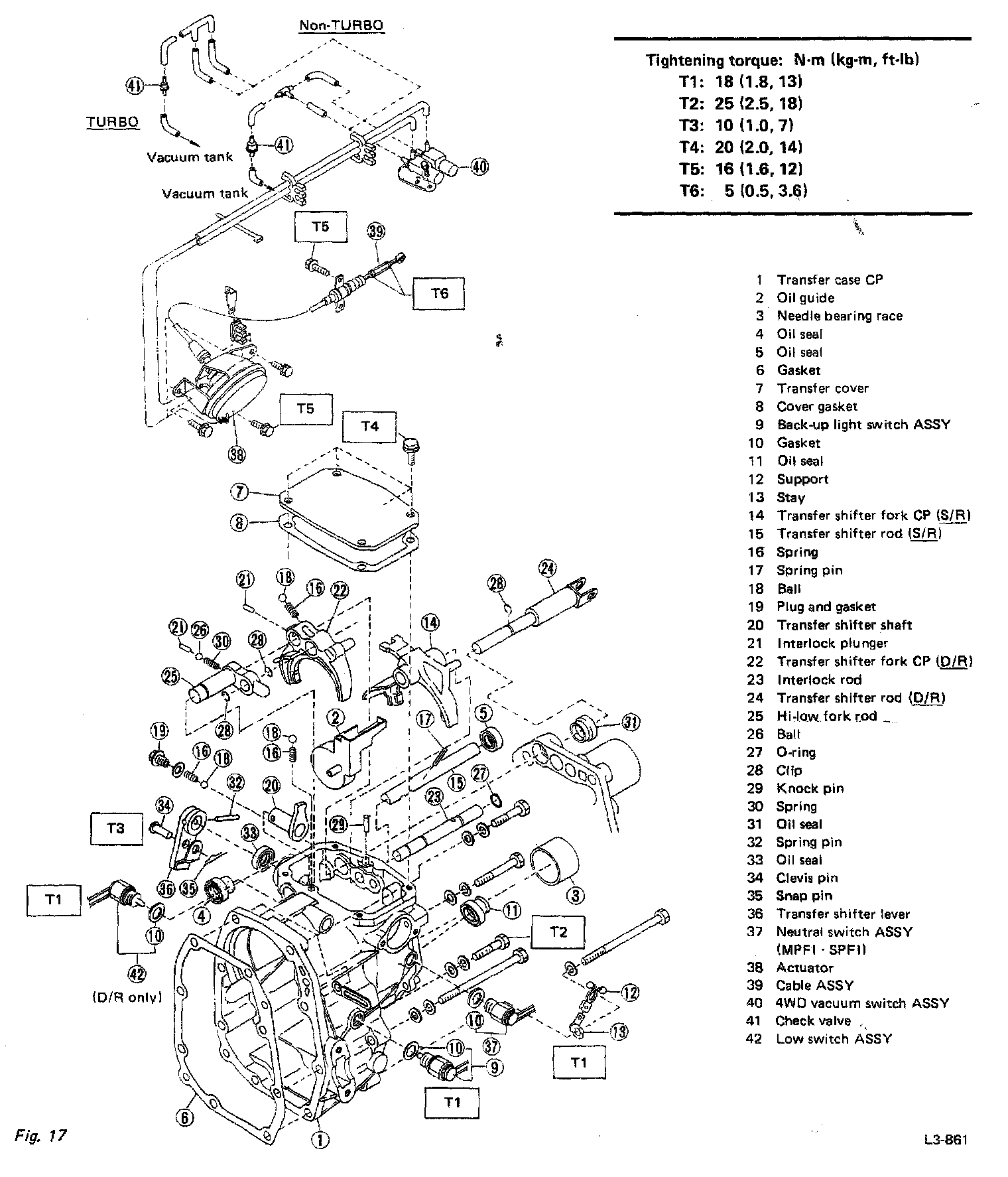

5-spd M/T, Transfer Case & Transfer Control System (Selective 4WD):
