Home >> Subaru >> 1988 >> L-Series Sedan (3 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Differential Torque Data >> Front Axle

Front Axle

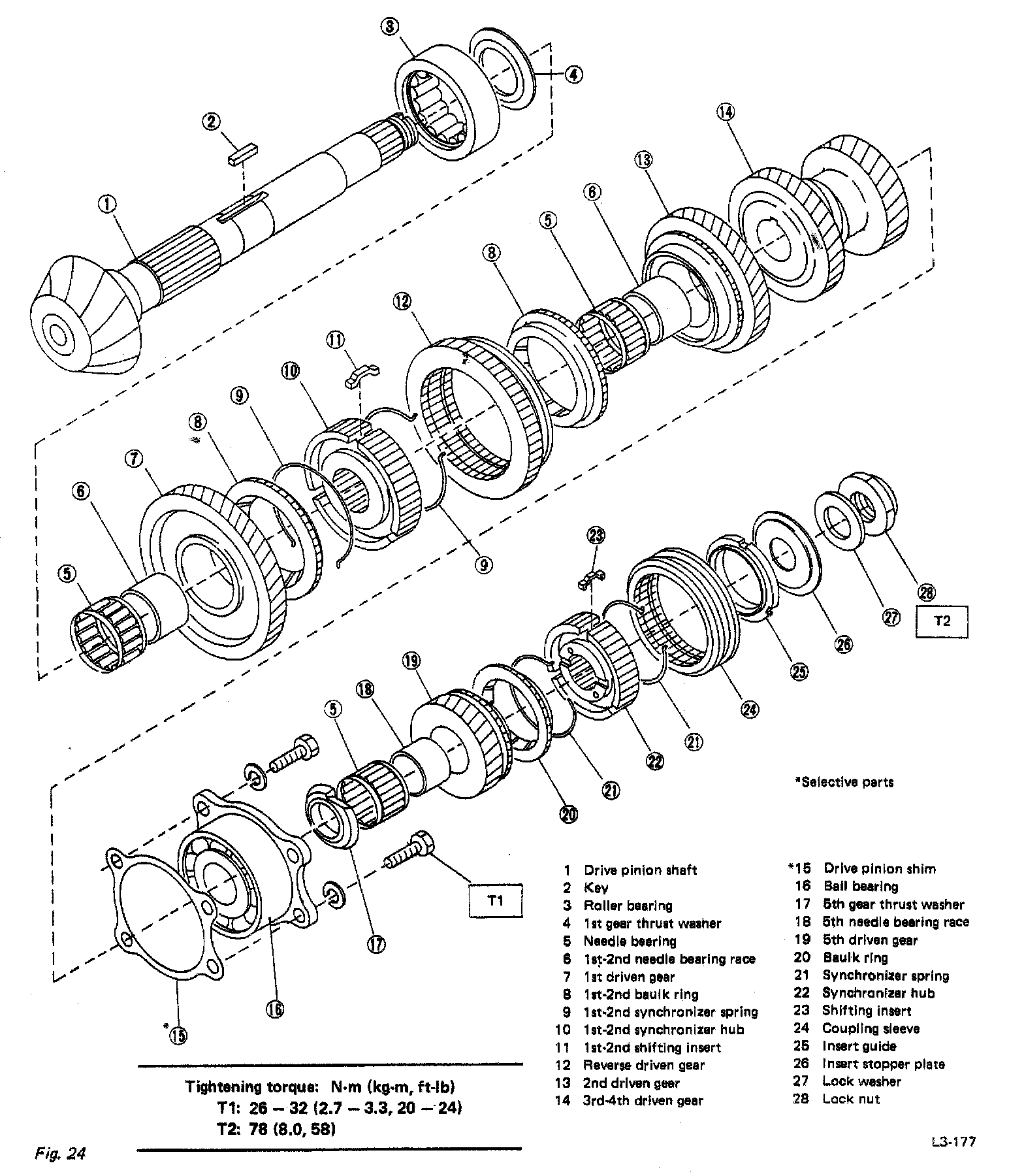

5-spd M/T, Drive Pinion Shaft (FWD Non-TURBO):
