Canister Purge Solenoid: Testing and Inspection

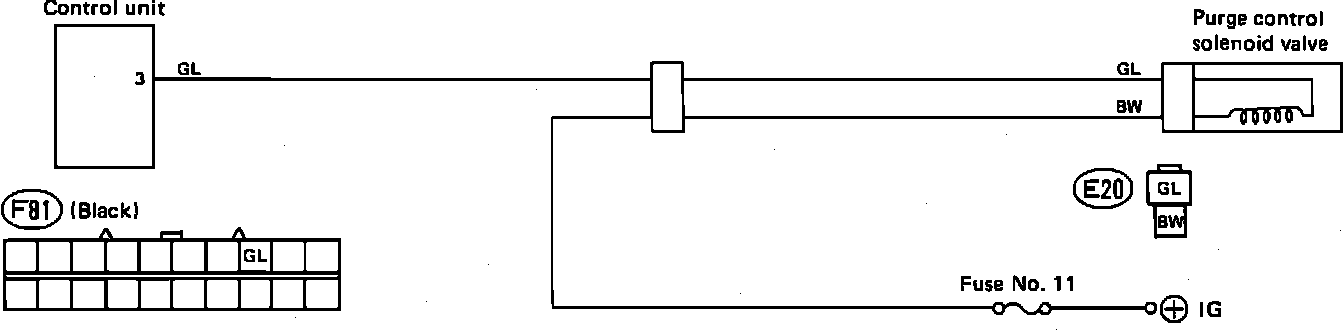

Canister Purge Solenoid Schematic:

A faulty canister purge control solenoid will set code 35 in the on-board diagnostic system. Refer to the schematic diagram and test the solenoid with the diagnostic chart.

Wire color code identification:

L: Blue
B: Black
Y: Yellow
G: Green
R: Red
W: White
Br: Brown
Lg: Light green
Gr: Gray

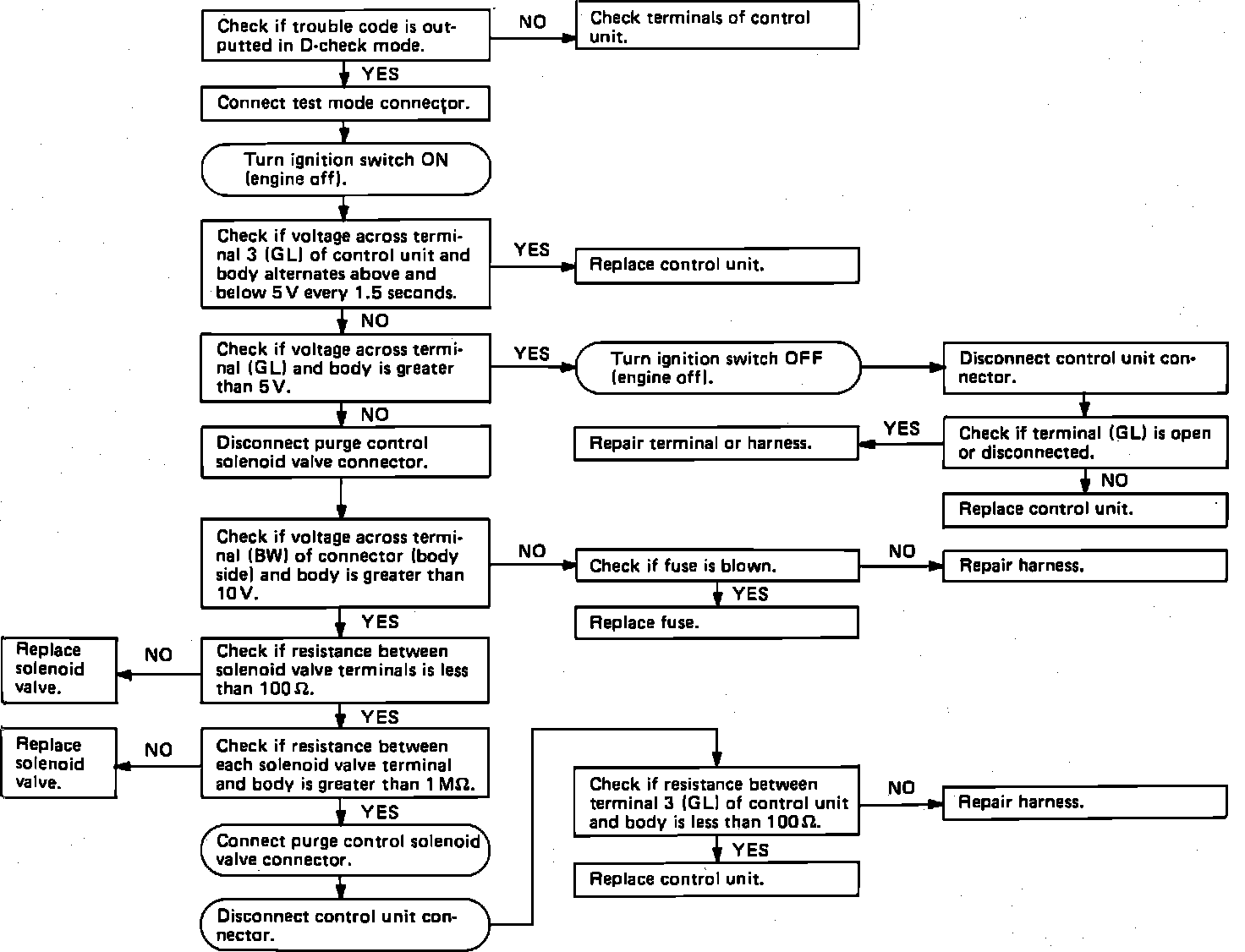

Canister Purge Solenoid Diagnostic Chart:

CANISTER PURGE CONTROL SOLENOID DIAGNOSTIC CHART
