Home >> Subaru >> 1988 >> L-Series Sedan (3 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp >> XT

XT

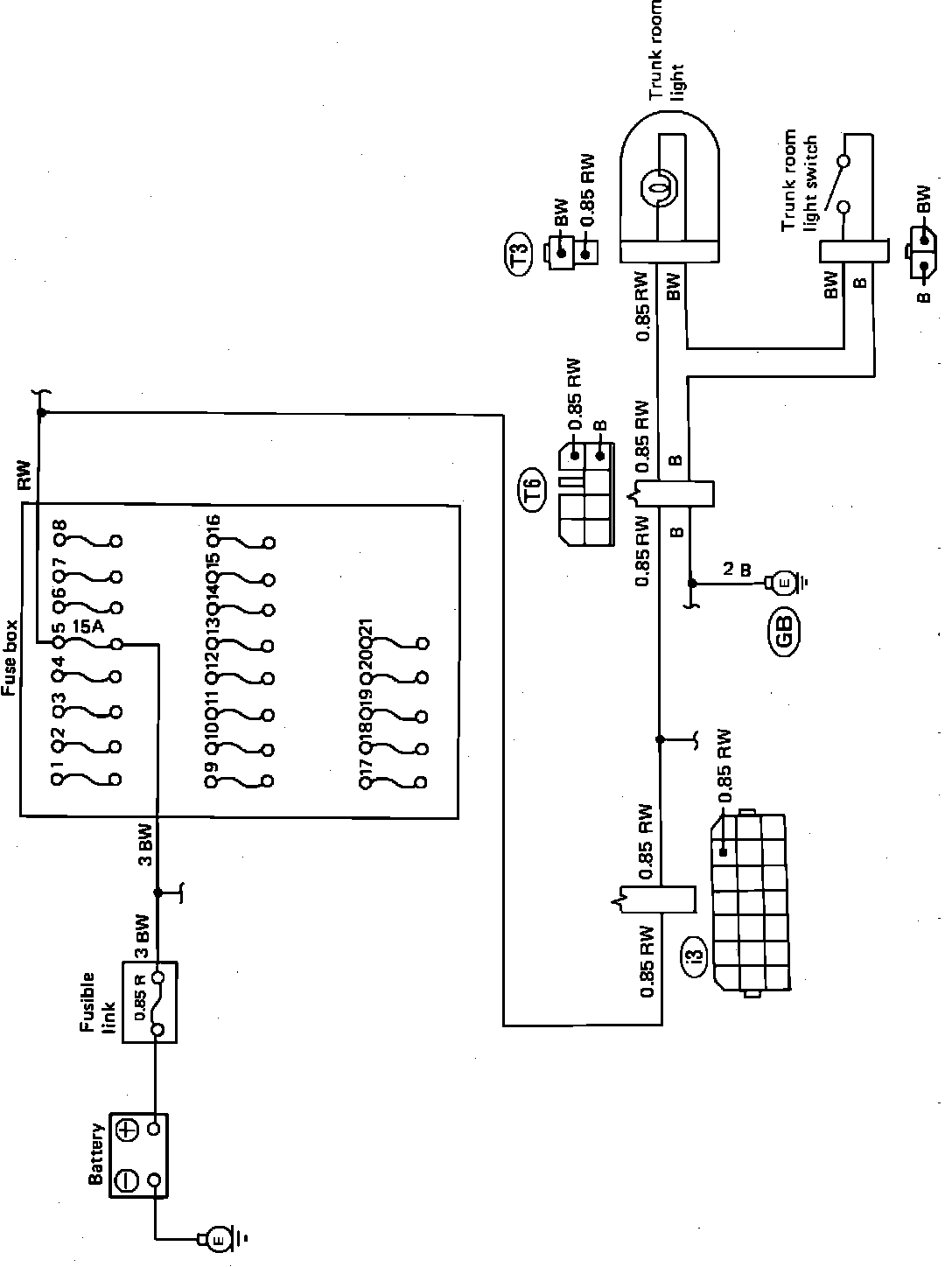

Trunk Lamp Wiring Circuit:
