Component Inspection

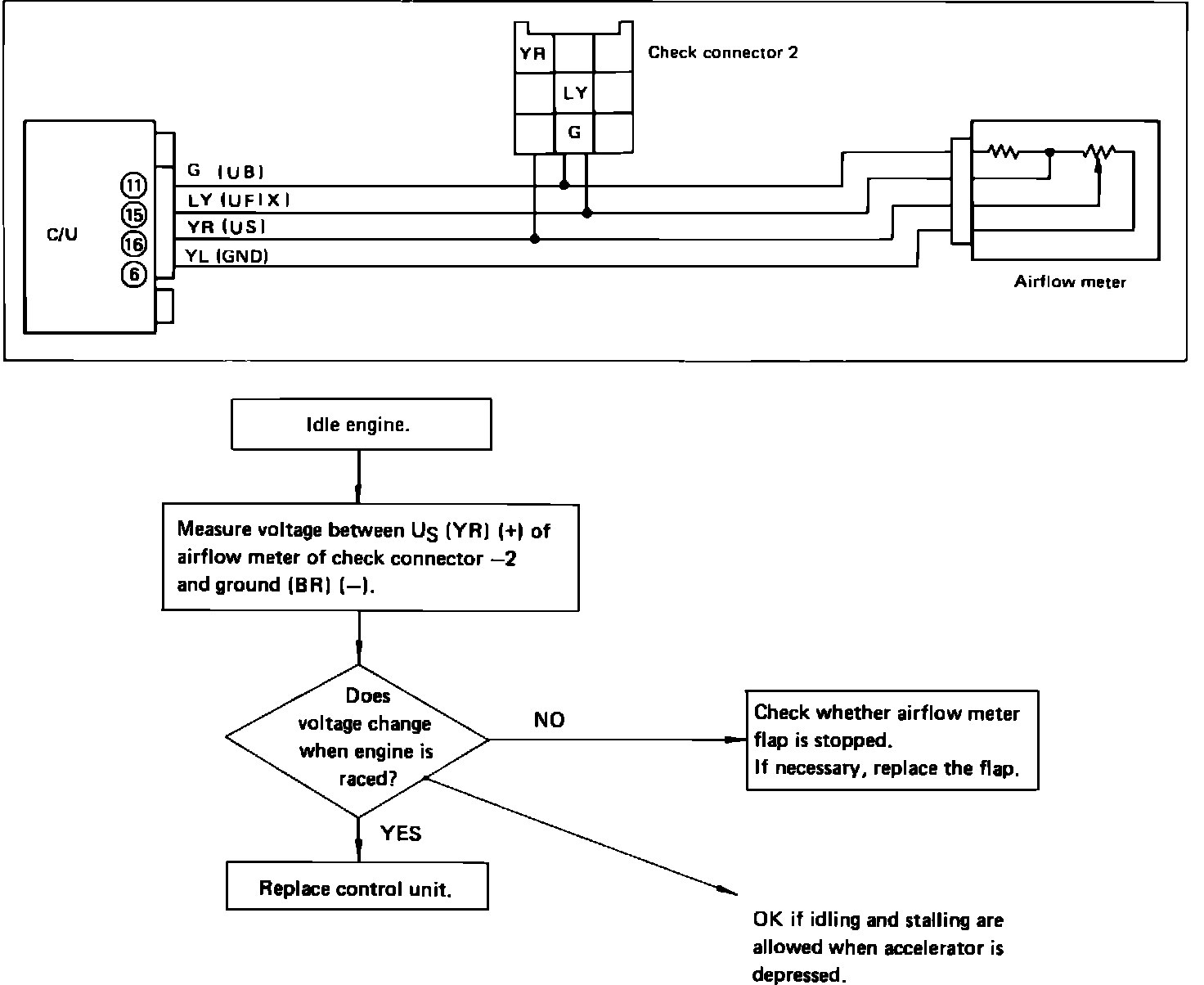

Fig. 11 EGI system troubleshooting chart. Checking air flow meter circuit (trouble code 21).:
