Subaru
>>
1986
>>
L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
With Matsushita System
With Matsushita System
Wiring Harness:

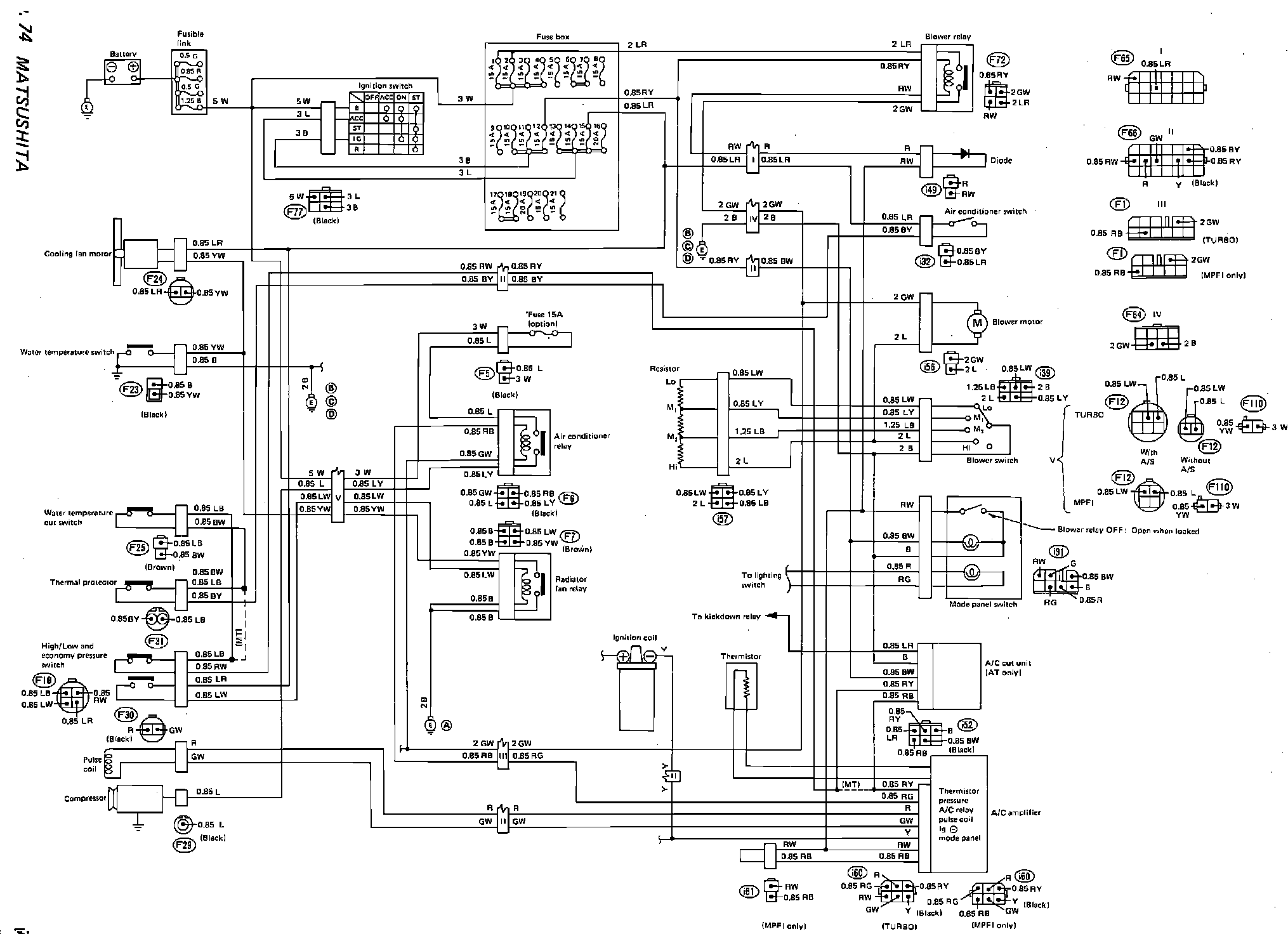

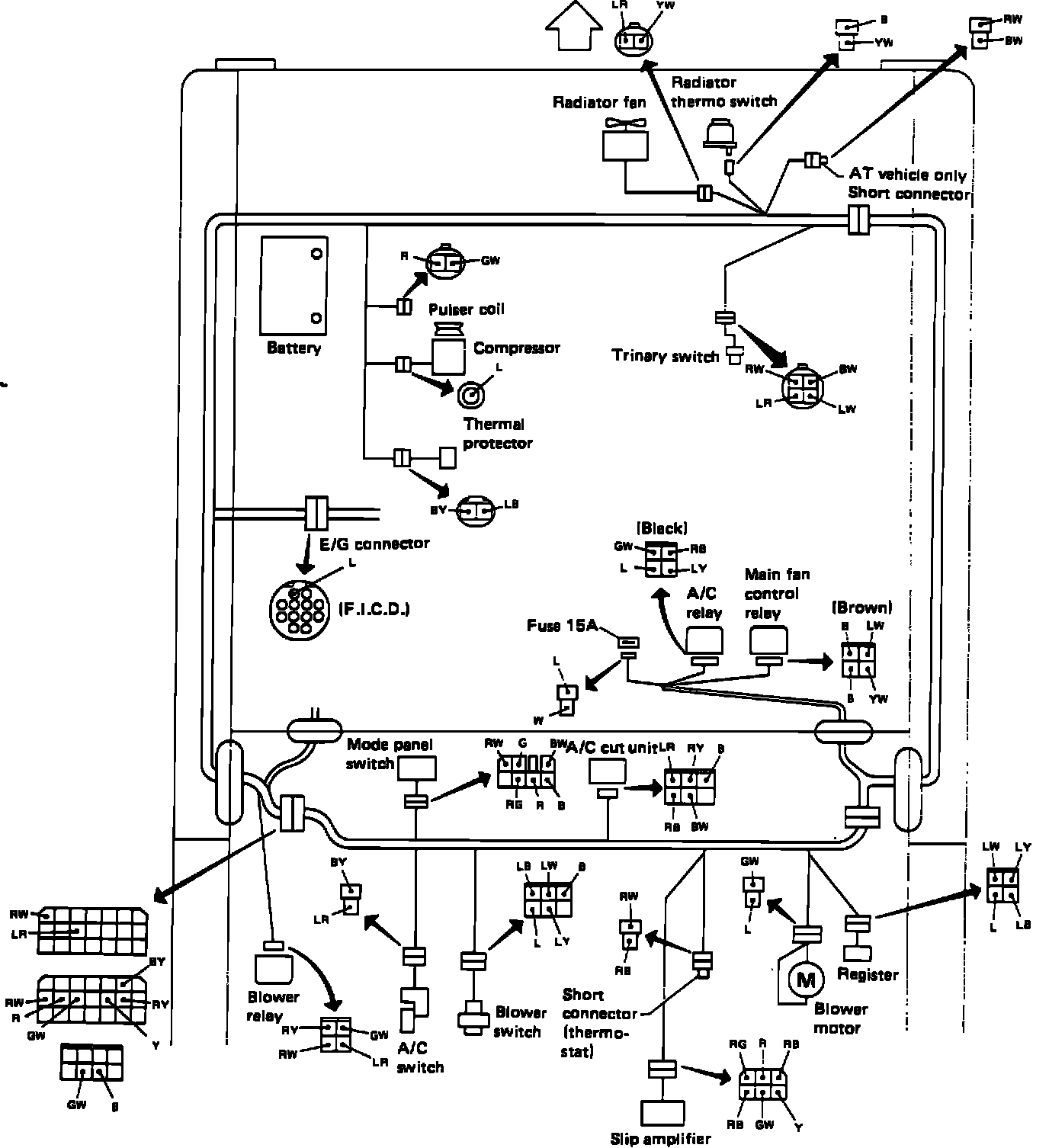

Fig. 66 Air Conditioning Wiring Circuit. Models W/Matsushita Compressor Exc. XT:
