Home >> Subaru >> 1986 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Brake Warning Lamp >> W/Digital Cluster

W/Digital Cluster

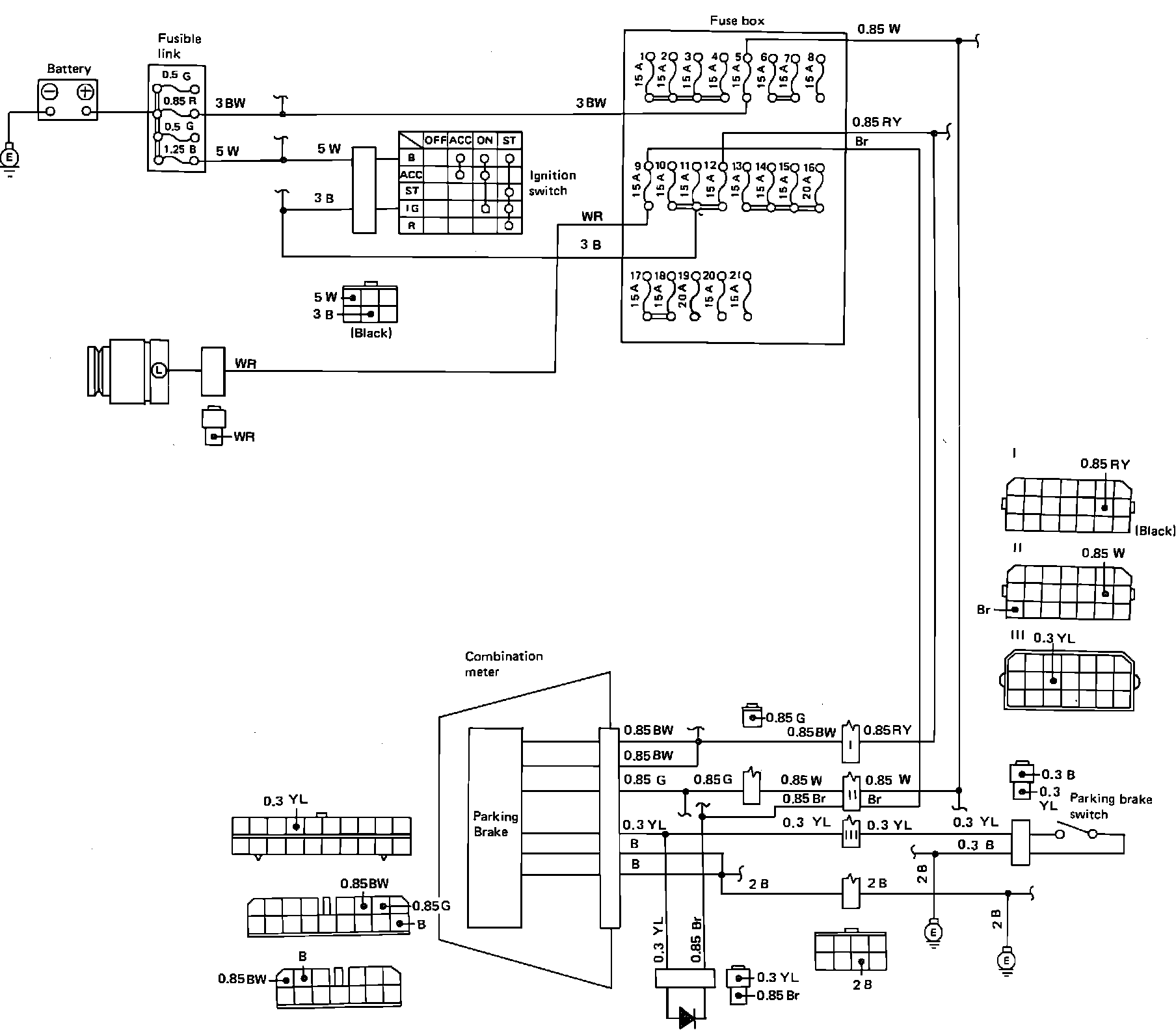

Fig. 91 Parking Brake Warning Circuit:
