Home >> Subaru >> 1986 >> L-Series Sedan (4 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 35

DTC 35

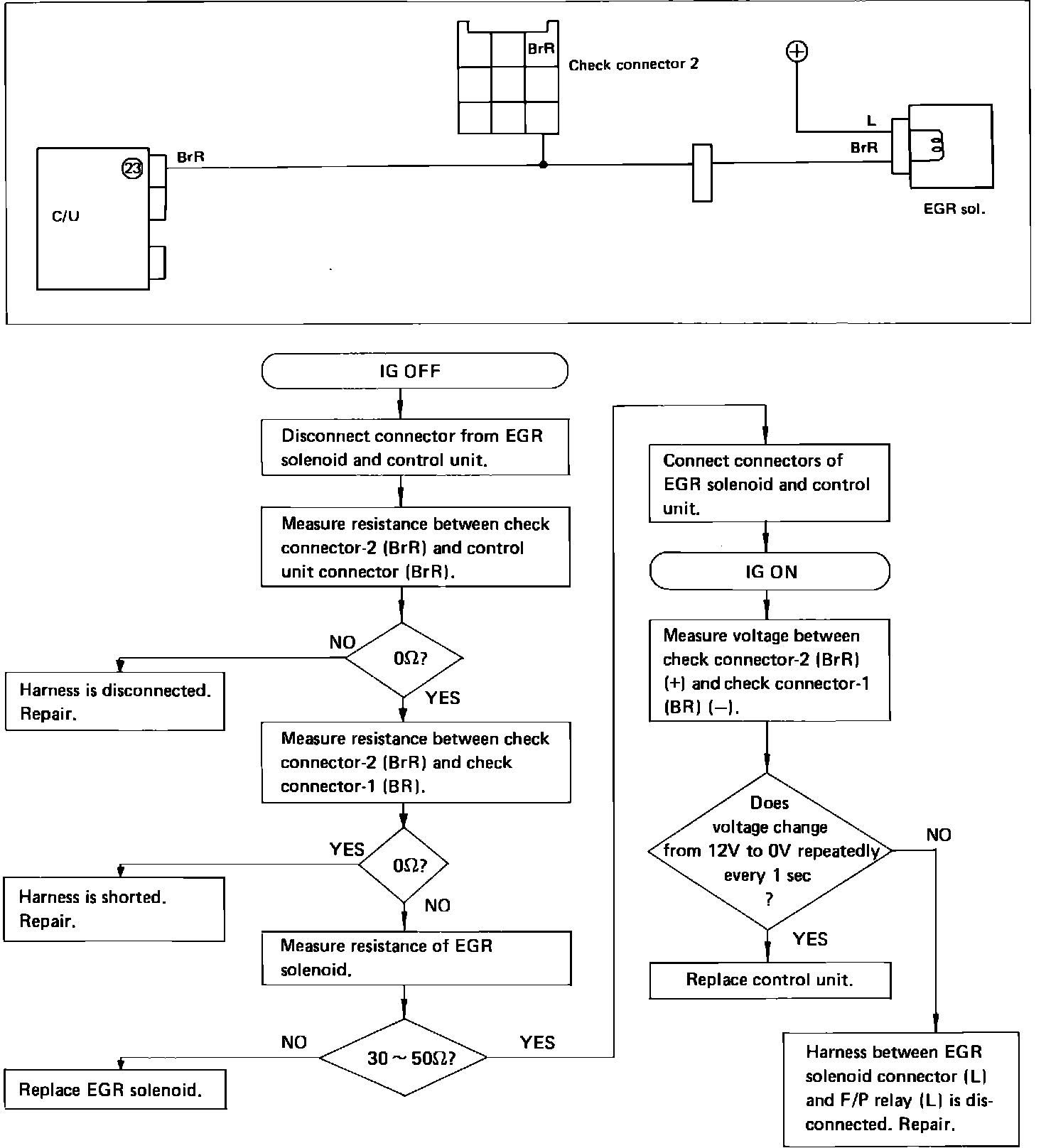

Fig. 19 EGI system troubleshooting chart. Checking EGR solenoid switch (trouble code 35).:
