Subaru
>>
1986
>>
L-Series Sedan (3 Door) 4WD F4-1781cc 1.8L SOHC Turbo (MPFI)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Headlamp & Headlamp Door
Headlamp & Headlamp Door

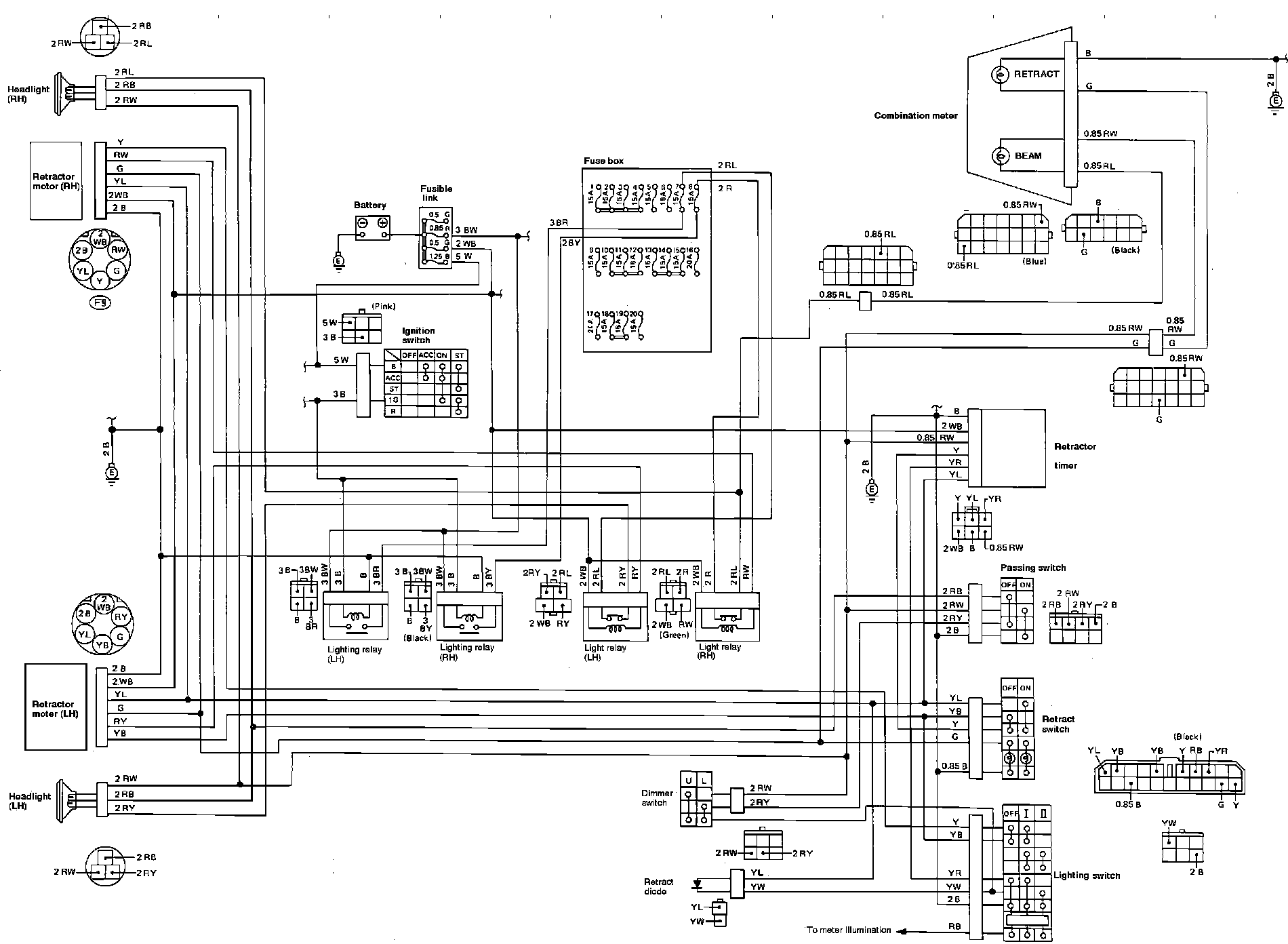

Fig. 124 Headlamp & Headlamp Door Wiring Circuit. XT Models:
