Door Locks
Door Locks

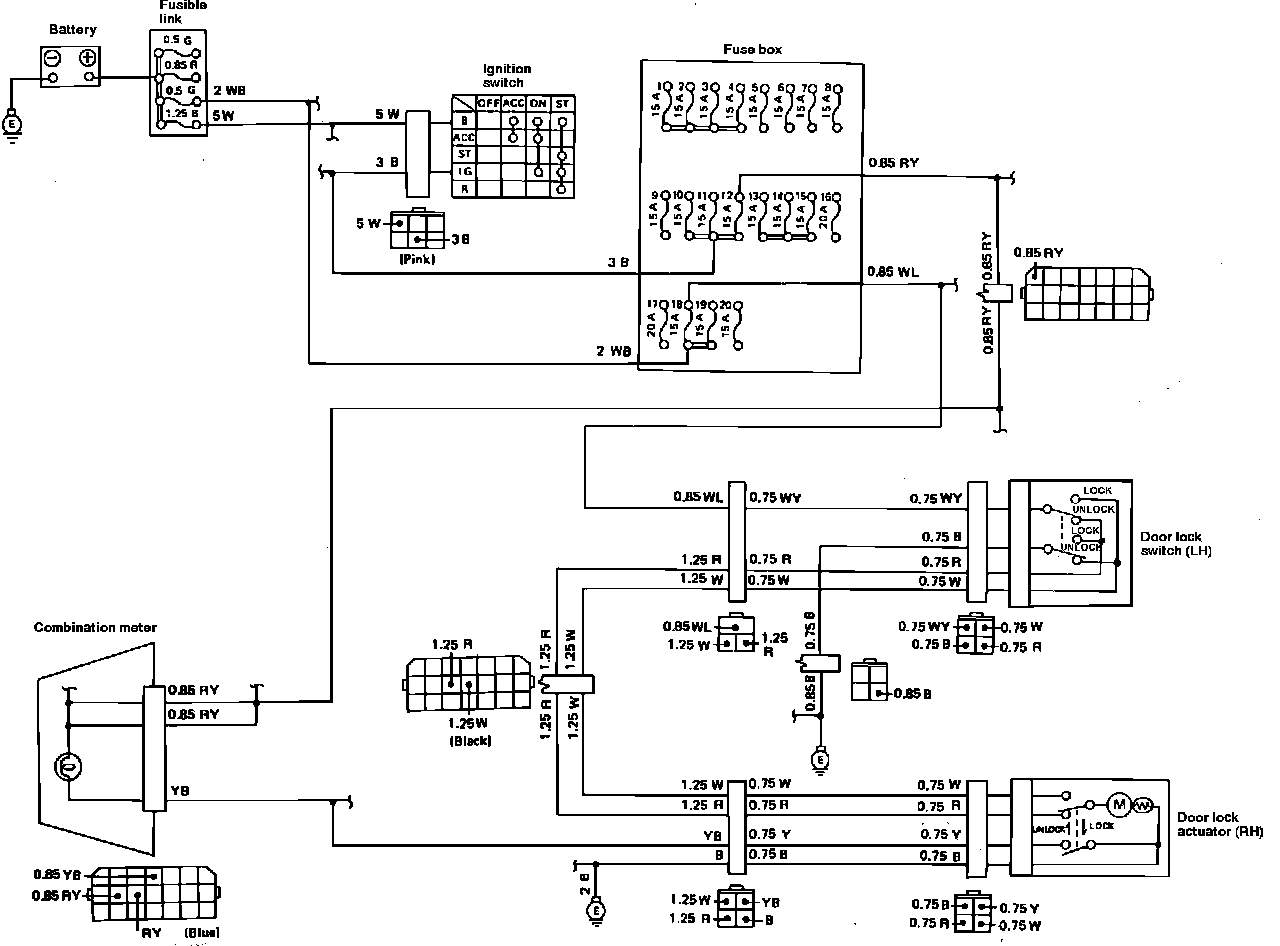

Fig. 46 Power Door Lock System Wiring Circuit. Models Exc. XT:
Fig. 127 Power Door Lock Wiring Circuit. XT Models:
