Digital Temperature Gauge - Relative Readings Change

NUMBER: 08-12-85

DATE: 07-29-85

APPLICABILITY:
ALL 1985 4-DOOR SEDAN, STATION WAGON AND XT COUPE VEHICLES EQUIPPED WITH DIGITAL DASH

SUBJECT:
DIGITAL TEMPERATURE GAUGE

A production change has been made to lower the relative indication of engine temperature on the Digital Temperature Gauge on 4-Door Sedan, Station Wagon and XT Coupe vehicles. This change was incorporated in June, 1985.

Applicable starting VIN'S are:

4 DOOR 250271
STATION WAGON 470311
XT COUPE 308350

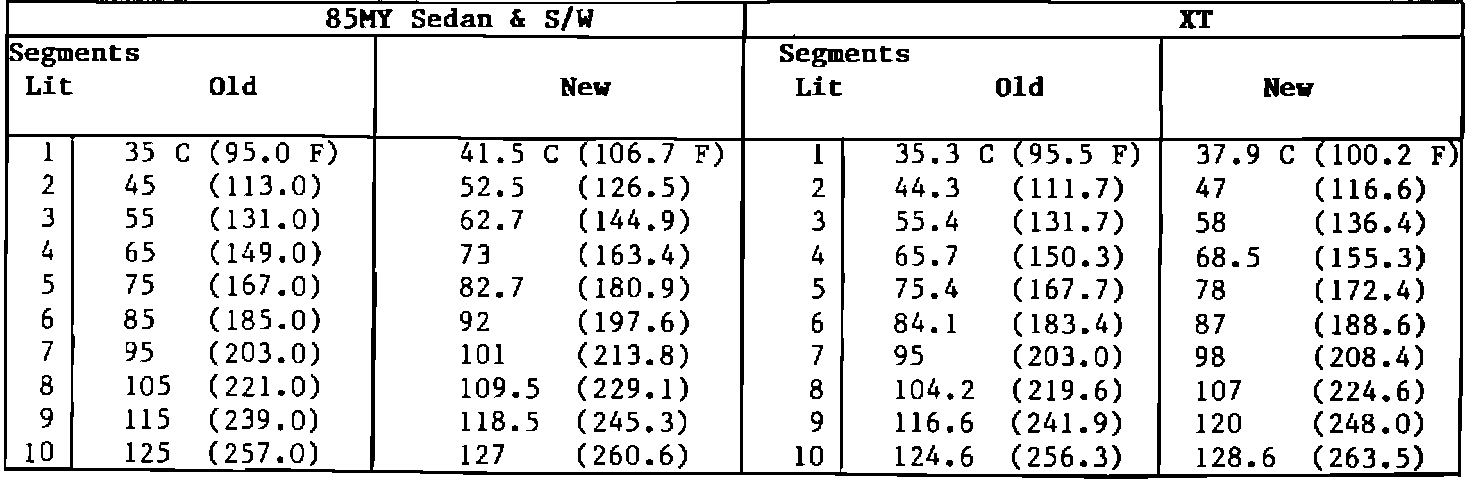

The chart describes the relative readings of the old and new gauges.



These temperatures represent internal engine temperatures and are not to be mistaken as engine radiator temperatures.
