Circuit Inspection
Circuit Inspection

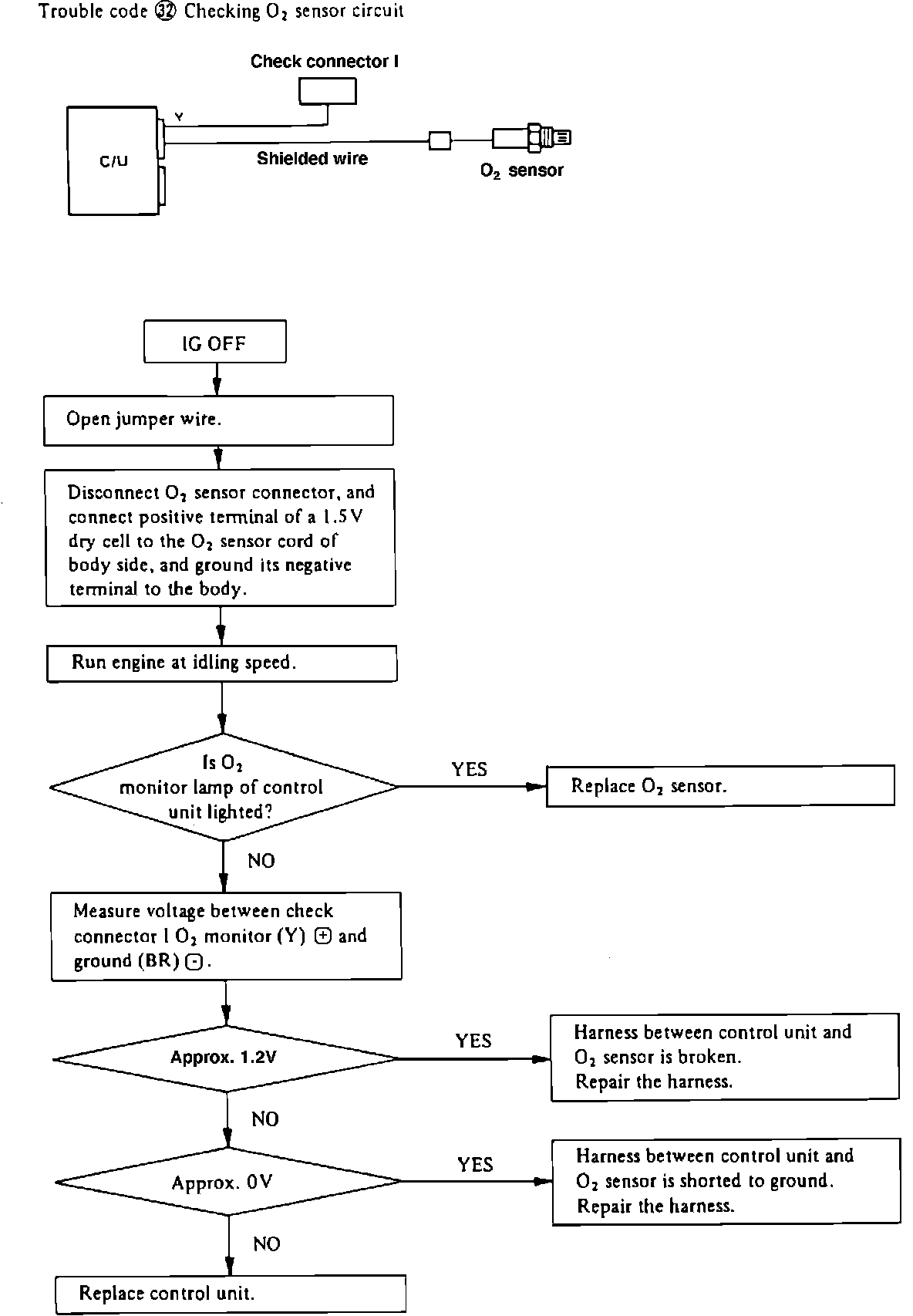

Fig.14 EGI system troubleshooting chart. Trouble code 32. Checking oxygen sensor circuit.:
