Cabin Air Filter / Purifier: Service and Repair

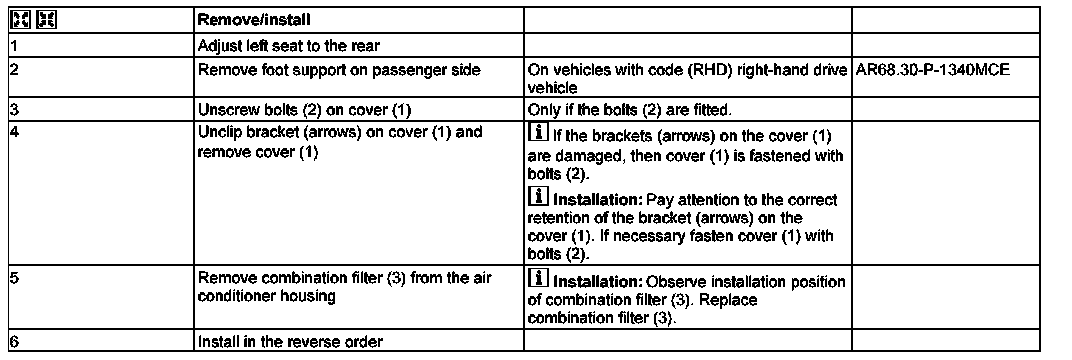

AP83.00-P-8384MCC Replace Combination Filter
- with CODE (I01) Air conditioning Plus

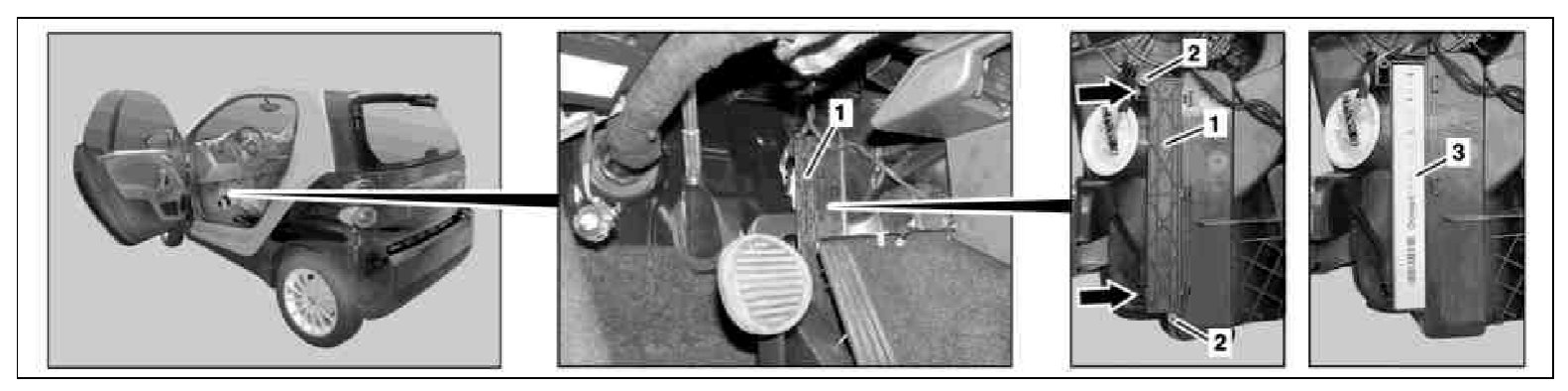

1 Cover
2 Screw
3 Combination filter
