Wiper Switch: Service and Repair

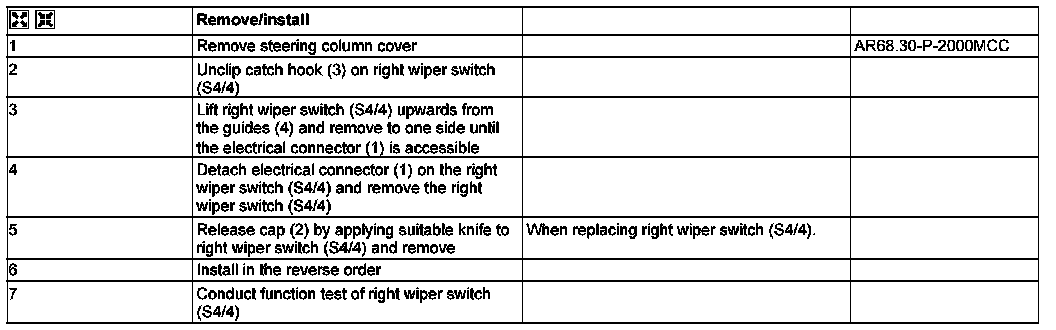

AR54.25-P-0003MCC Remove/Install Wiper Switch

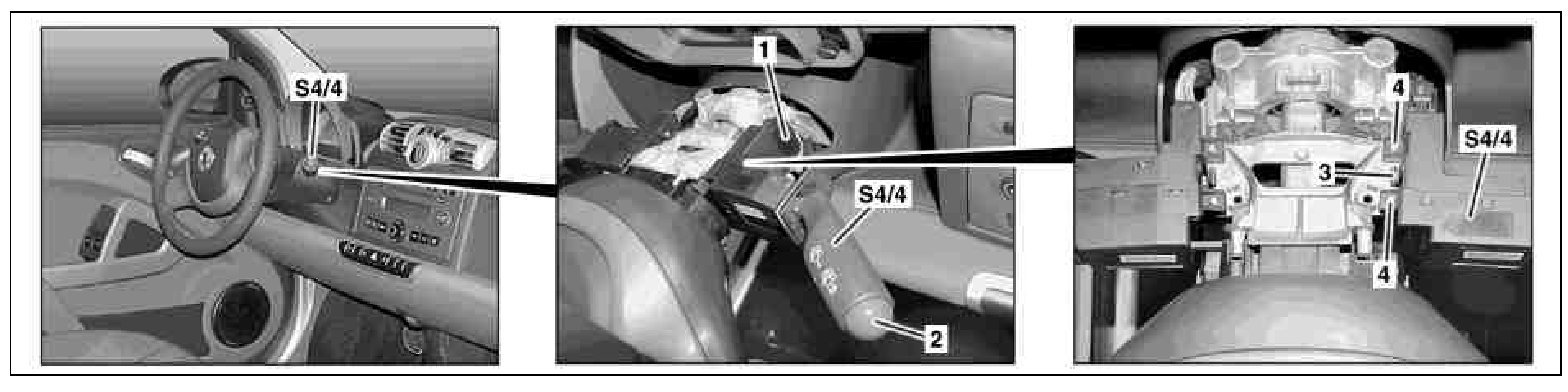

1 Electrical connector
2 Cap
3 Catch hook
4 Guide
S4/4 Right wiper switch
