AR82.30-P-6910MCC Remove/install tailgate wiper arm

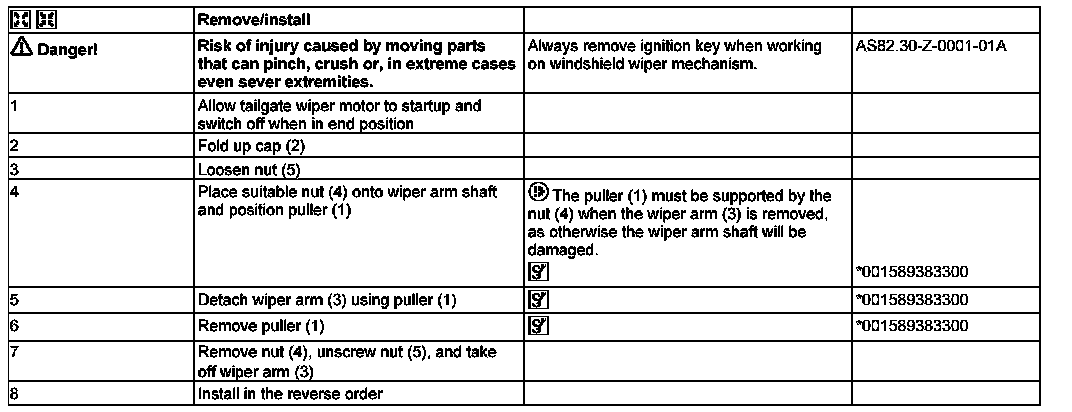

AR82.30-P-6910MCC Remove/Install Tailgate Wiper Arm

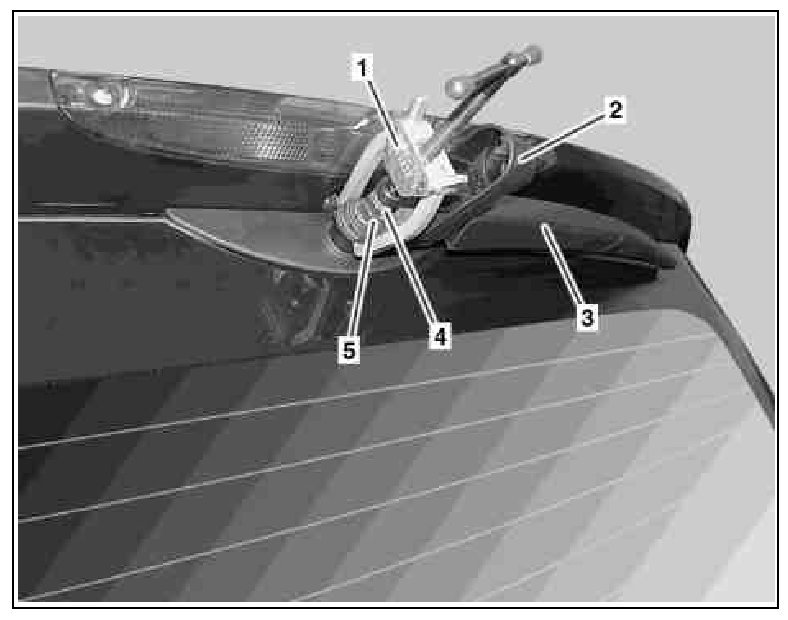

1 Puller
2 Cap
3 Wiper arm
4 Nut
5 Nut

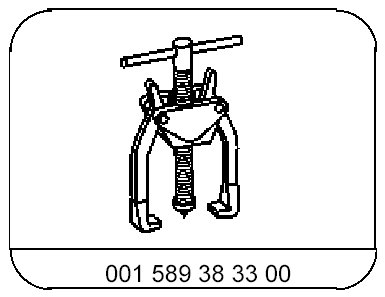

001 589 38 33 00, Puller
