AR82.30-P-6100MCC Remove and Install Wiper Arm

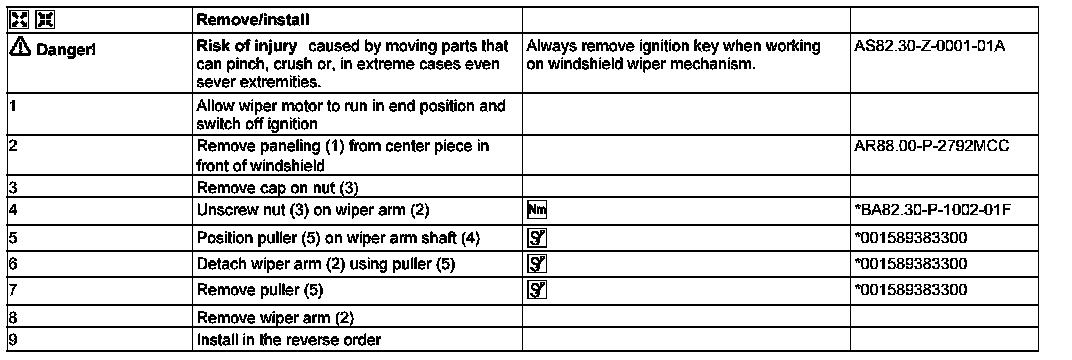

AR82.30-P-6100MCC Remove And Install Wiper Arm

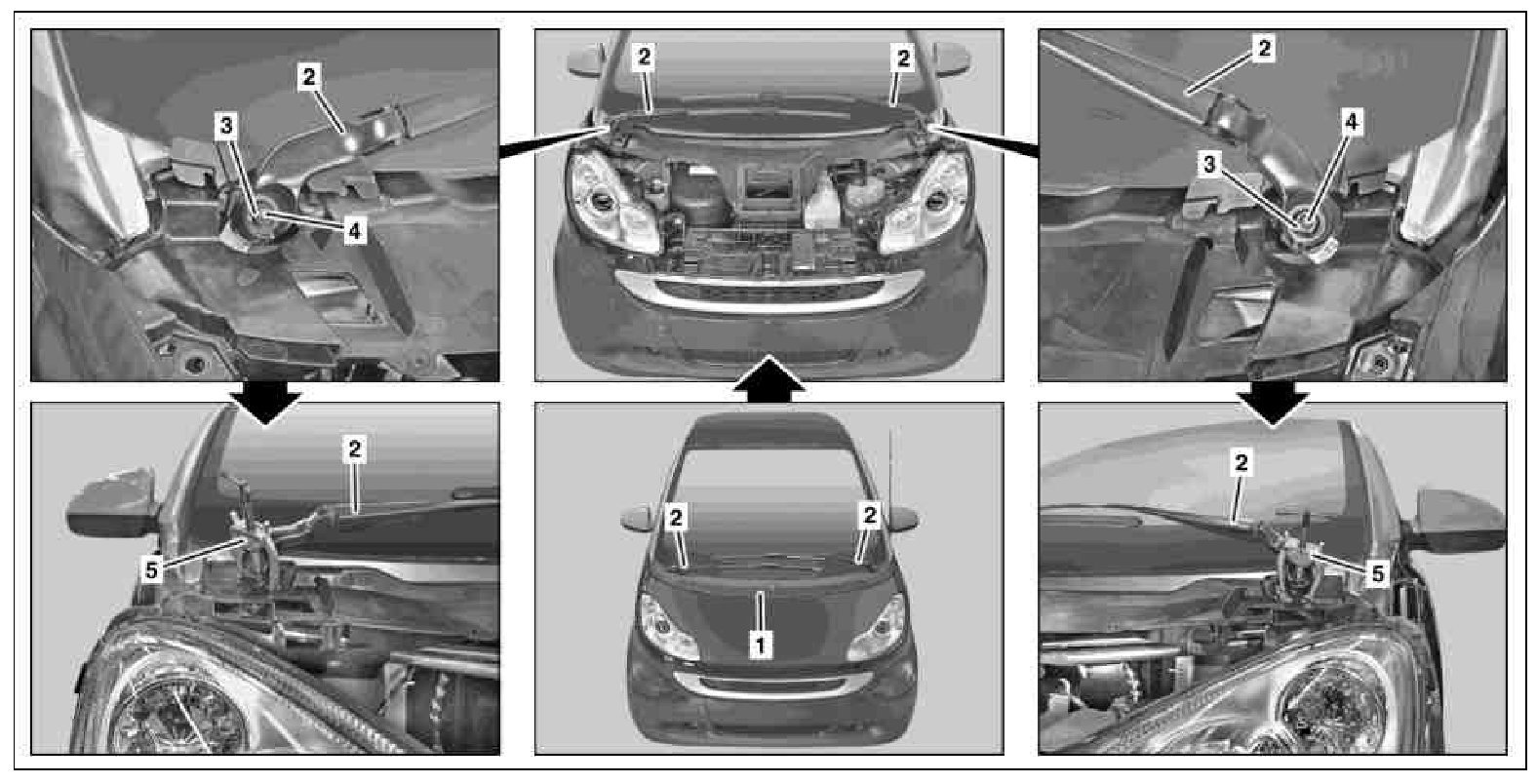

1 Trim
2 Wiper arm

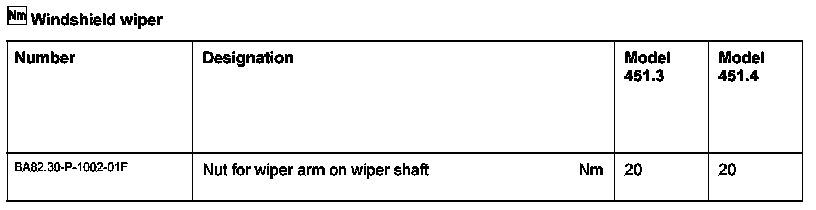

3 Nut
4 Wiper arm shaft
5 Puller

















001 589 38 33 00, Puller
