ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Windshield Washer Spray Nozzle
>>
Service and Repair
>>

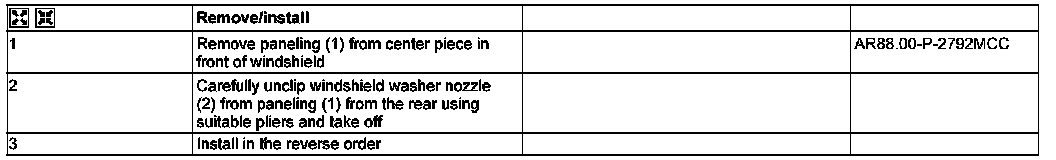

AR82.35-P-6970MCC Remove/Install Windshield Washer Nozzle
AR82.35-P-6970MCC Remove/Install Windshield Washer Nozzle
AR82.35-P-6970MCC Remove/Install Windshield Washer Nozzle

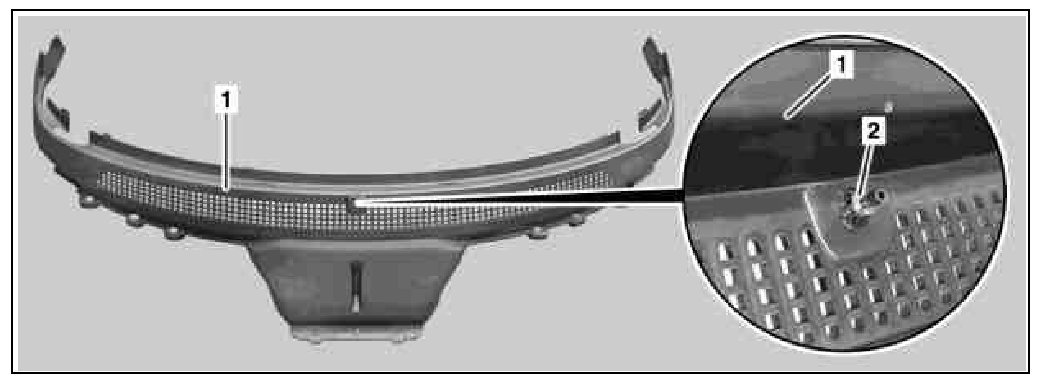

1
Trim
2
Windshield washer nozzle
