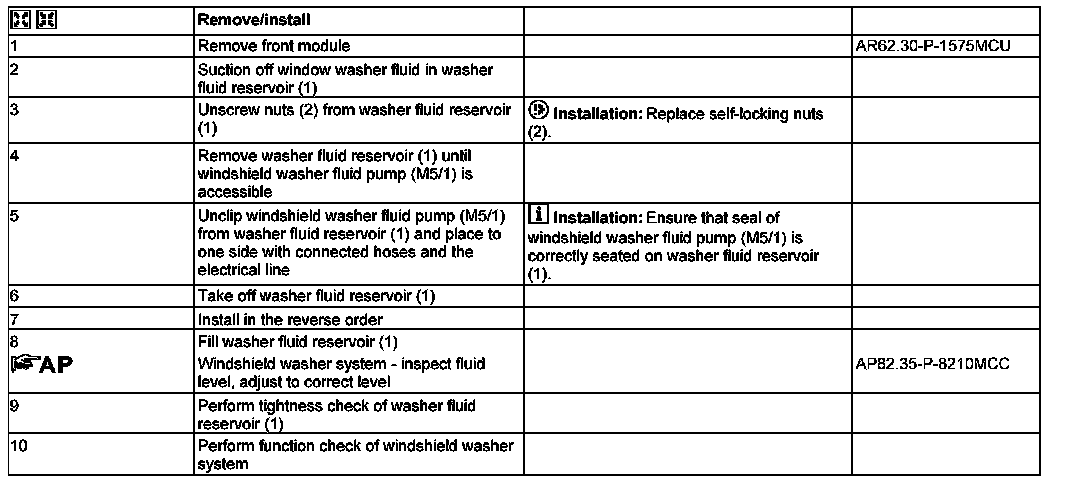

AR82.35-P-6000MCU Remove/install washer fluid reservoir of windshield washer system



AR82.35-P-6000MCU Remove/Install Washer Fluid Reservoir Of Windshield Washer System

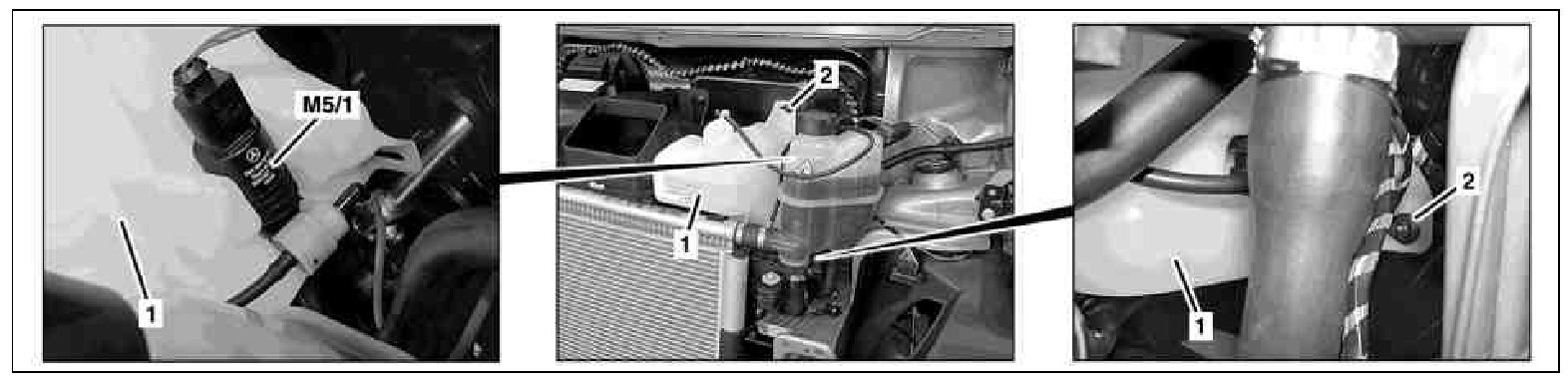

Shown on model 451.3







1 Washing water reservoir
2 Nut
M5/1 Windshield washer fluid pump
