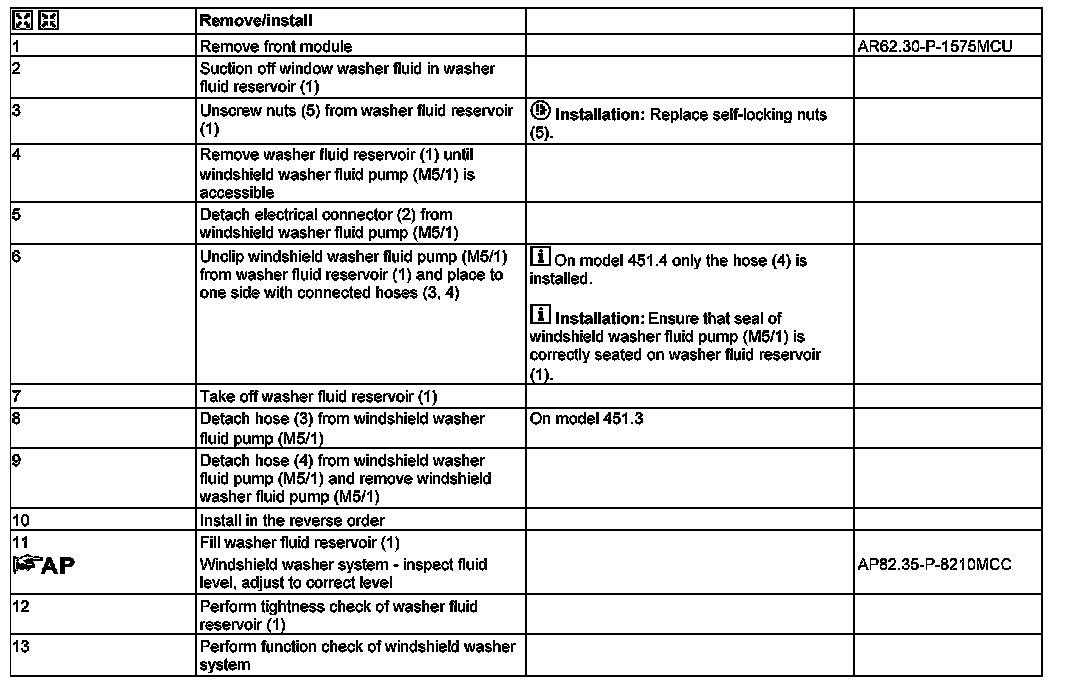

AR82.35-P-6002MCU Remove/install windshield washer system pump

AR82.35-P-6002MCU Remove/Install Windshield Washer System Pump

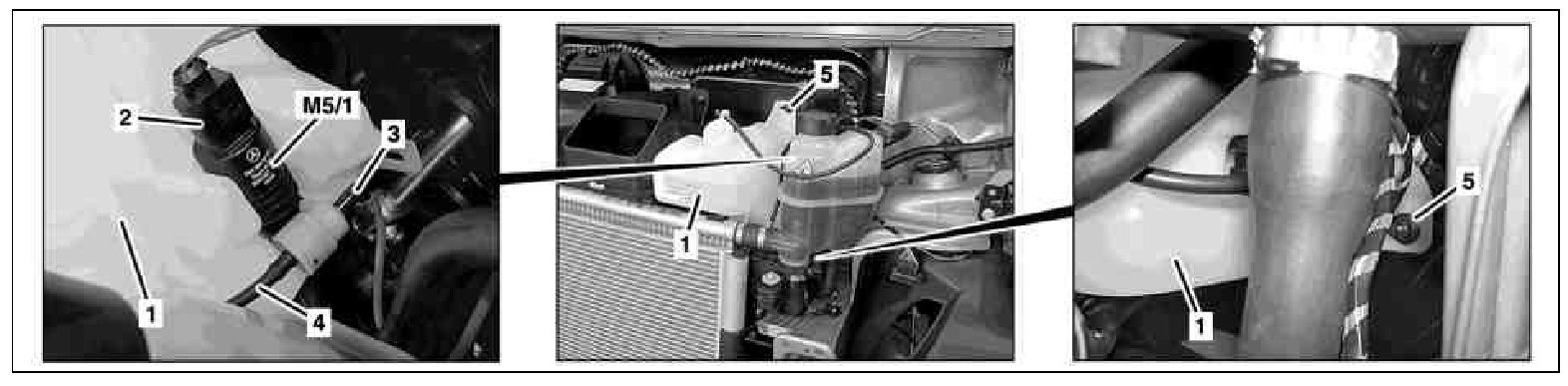

Shown on model 451.3







1 Washing water reservoir
2 Electrical connector
3 Hose (on model 451.3)
4 Hose
5 Nut
M5/1 Windshield washer fluid pump
