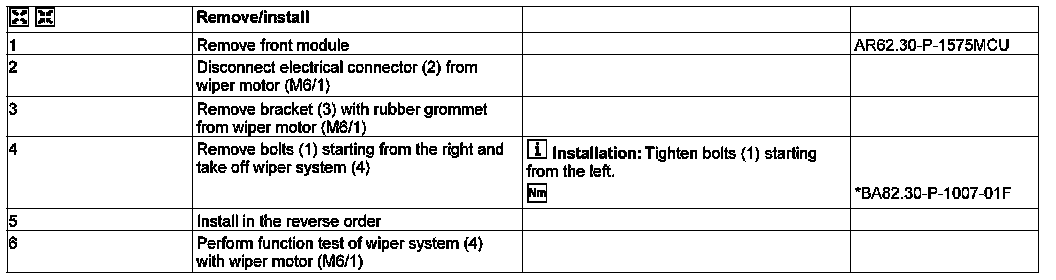

AR82.30-P-6400MCU Remove/Install Wiper System



AR82.30-P-6400MCU Remove/Install Wiper System

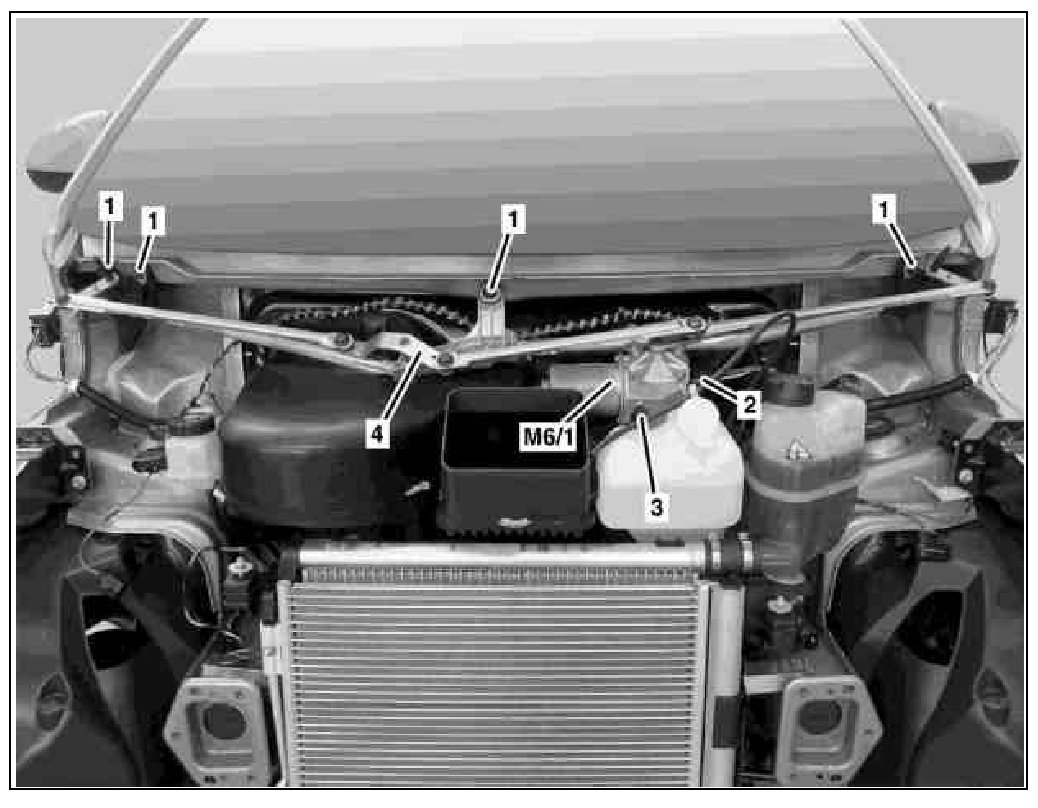

1 Screw
2 Electrical connector
3 Bracket
4 Wiper system
M6/1 Wiper motor
