AR67.10-P-1501-01MCC Prepare Body Flange For Installation of Window

AR67.10-P-1501-01MCC Prepare Body Flange For Installation Of Window

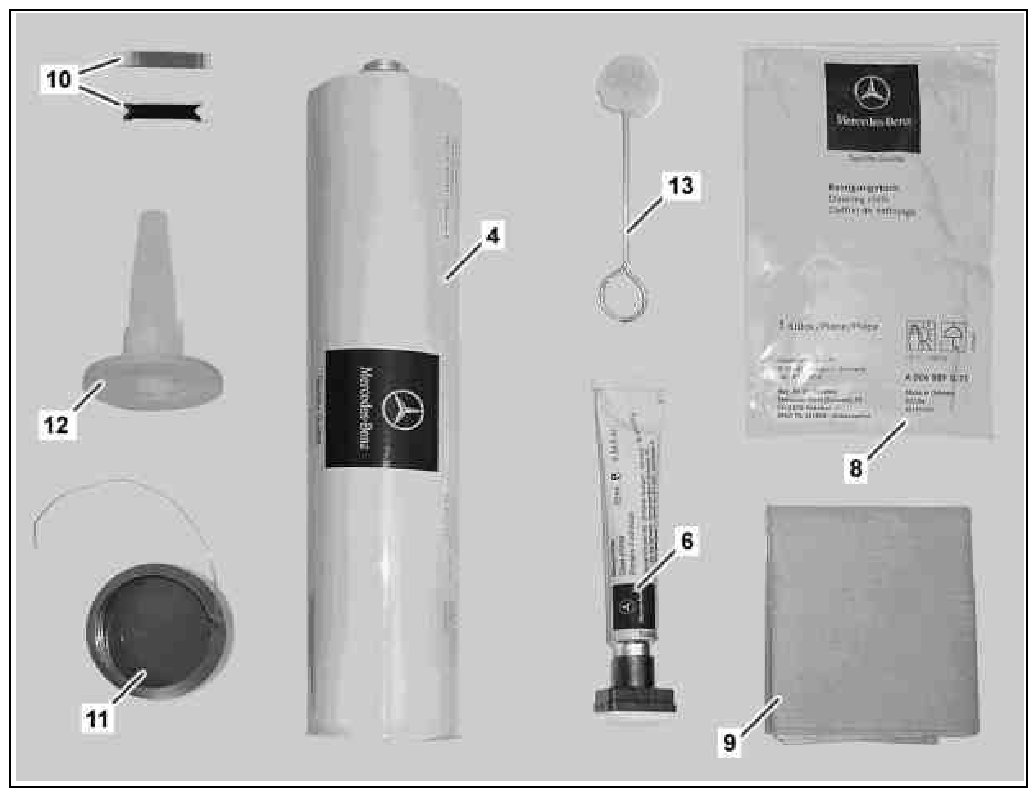

Adhesive kit for isopropanol cleaner







4 Adhesive cartridge
6 Primer stick
8 Cleaning cloth
9 Cloth
10 Spacer
11 Cutting wire
12 Application nozzle
13 Wool wiper

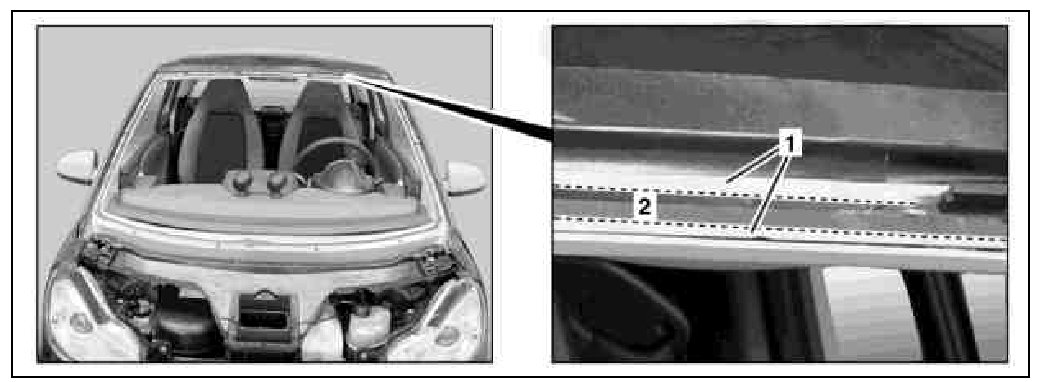

The gluing area (2) on the body flange (1) must be absolutely free of dust and grease to prevent paint adhesion problem of the adhesive material when glazing. Cut back remaining adhesive material on body flange (1) max. 15 minutes before applying new adhesive bead, because the adhesive material on the cutting surface reacts with the ambient air which can lead to adhesion problems.

1 Cut off residual adhesive material on body flange (1) down to a height of approx. 2 mm using suitable scraper. Remove adhesive material residues.
2 Clean painted adhesive surface on body flange (1) with cleaning rag from repair kit and rub dry with rag.
3 Repair paint damage at body flange (1) with primer applicator.
4 Apply primer to body flange (1) with primer stick from repair kit in areas where residual adhesive material is missing or damaged.
Allow primer to flash off for at least 10 minutes.

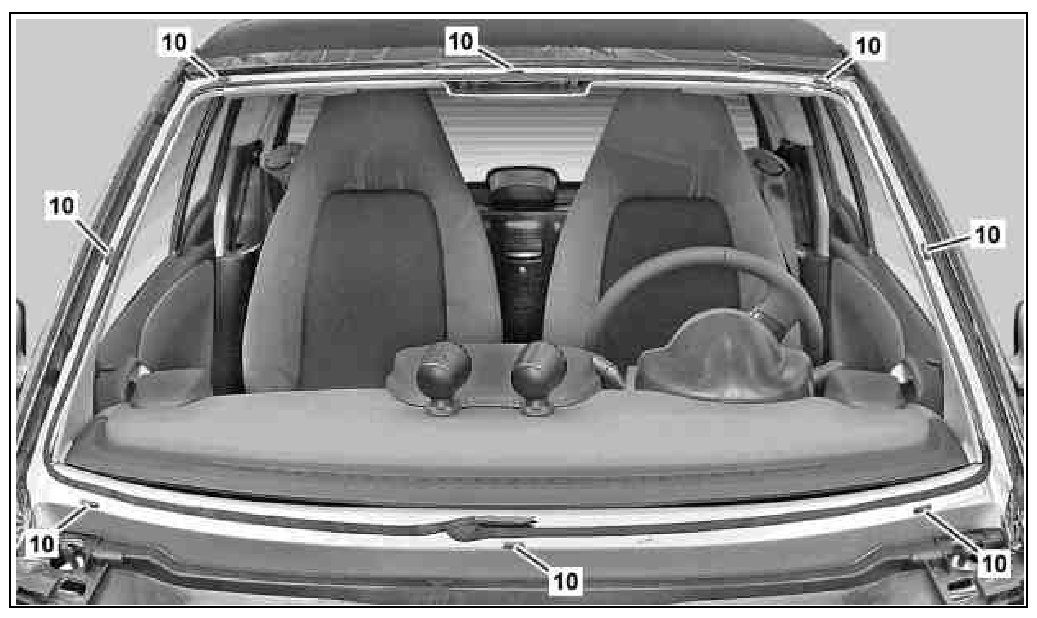

5 Install spacers (10) as shown.
6 Clean working area.
Wet/dry vacuum cleaner
