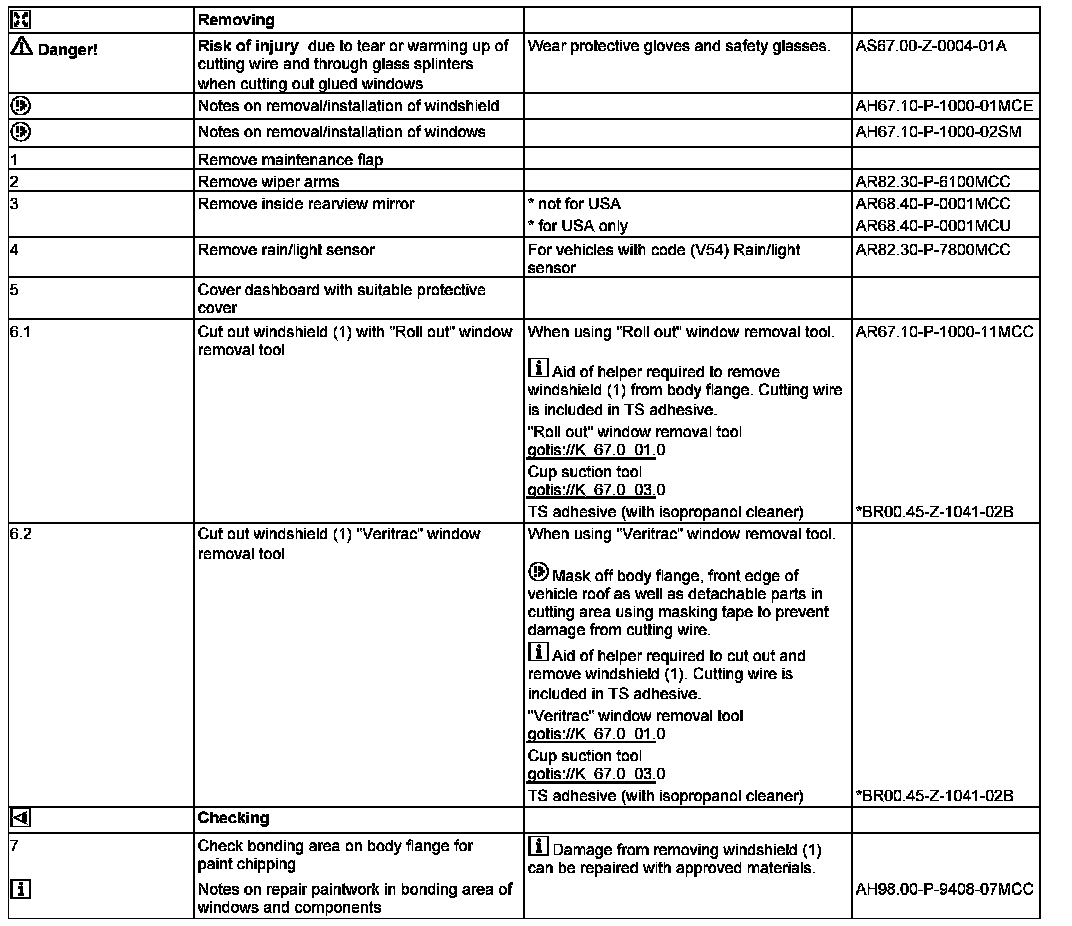

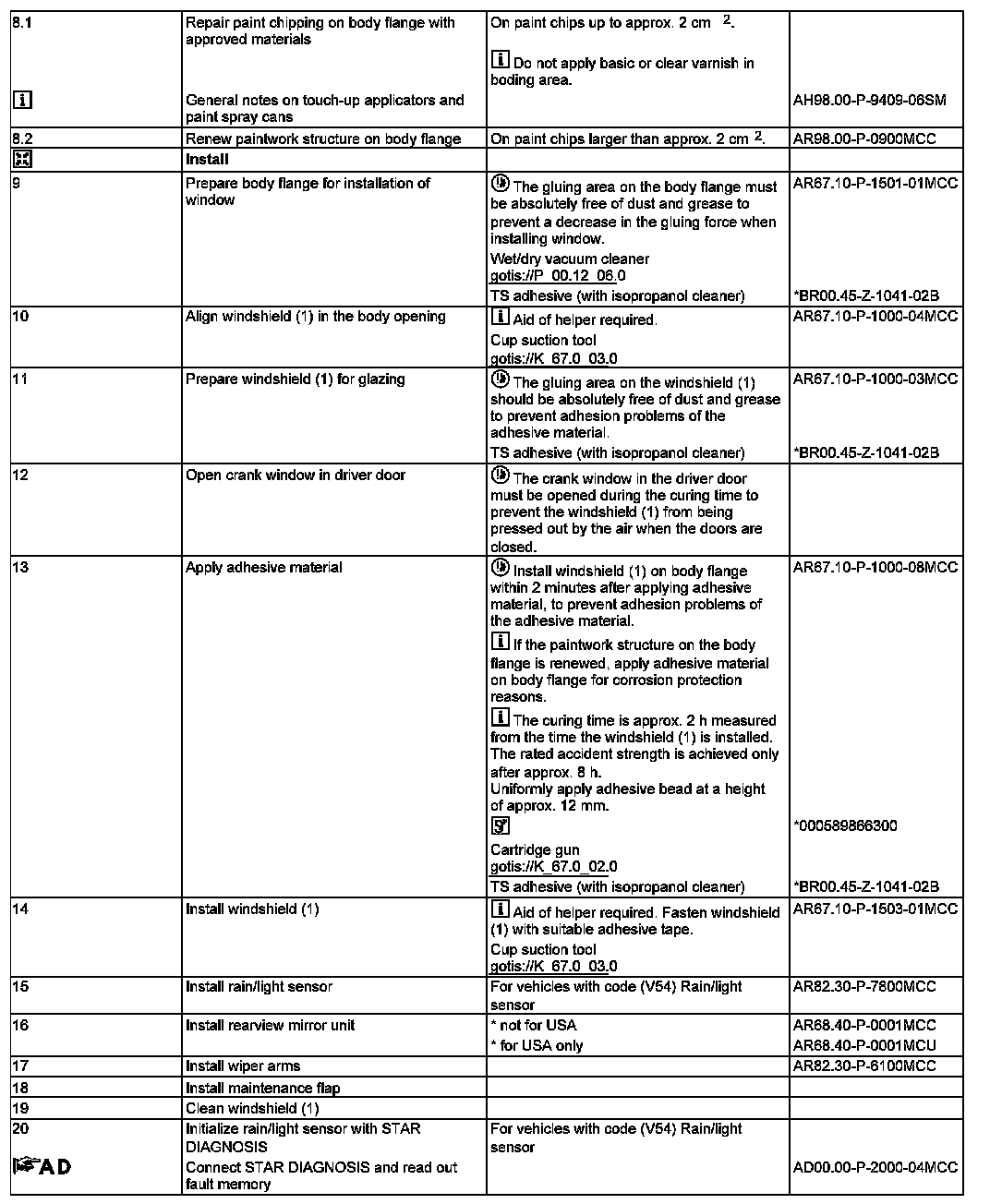

AR67.10-P-1000MCC Remove/install windshield



AR67.10-P-1000MCC Remove/Install Windshield

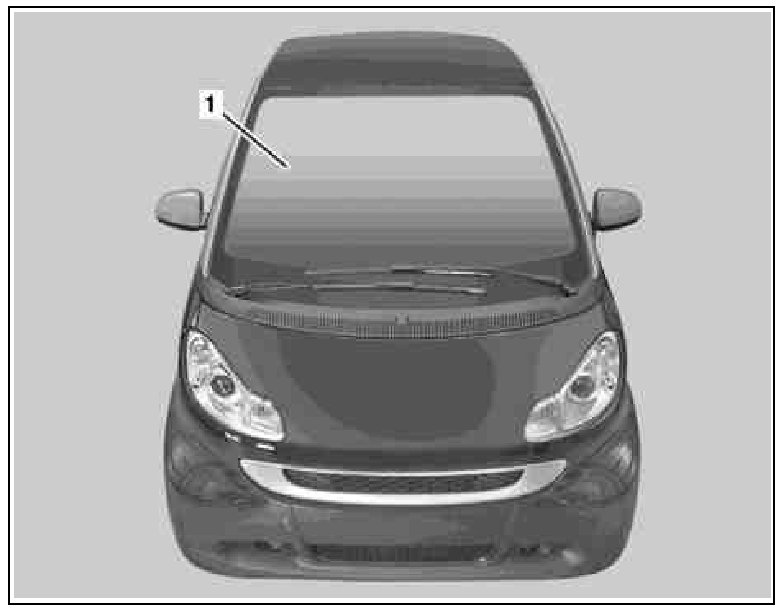

Illustrated on model 451.3







1 Windshield

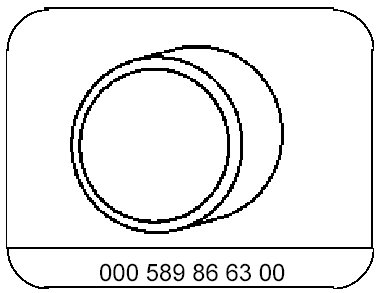

000 589 86 63 00, Intermediate piece
