AH67.10-P-1000-01MCE Notes on Removal/Installation of Windshield

AH67.10-P-1000-01MCE Notes On Removal/Installation Of Windshield

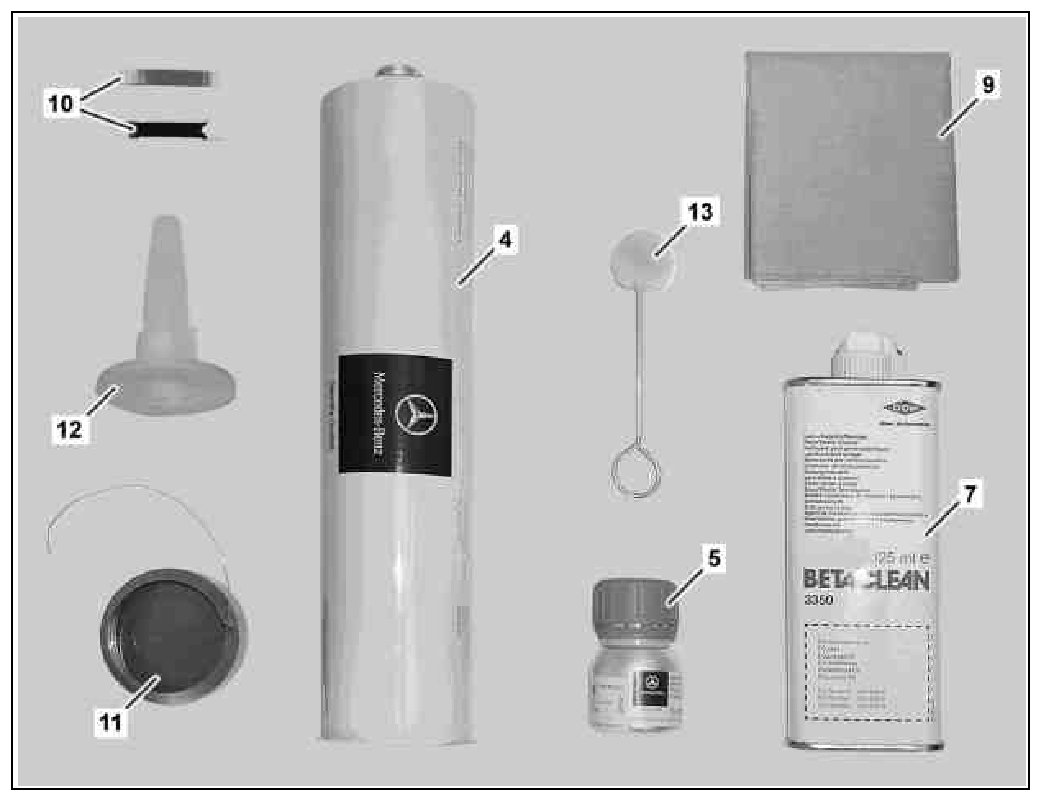

Adhesive kit for isopropanol cleaner







4 Adhesive cartridge
6 Primer stick
8 Cleaning cloth
9 Cloth
10 Spacer
11 Cutting wire
12 Application nozzle
13 Wool wiper

Adhesive kit with heptane cleaner







4 Adhesive cartridge
5 Plastic primer
7 Heptane cleaner 3350
9 Cloth
10 Spacer
11 Cutting wire
12 Application nozzle
13 Wool wiper

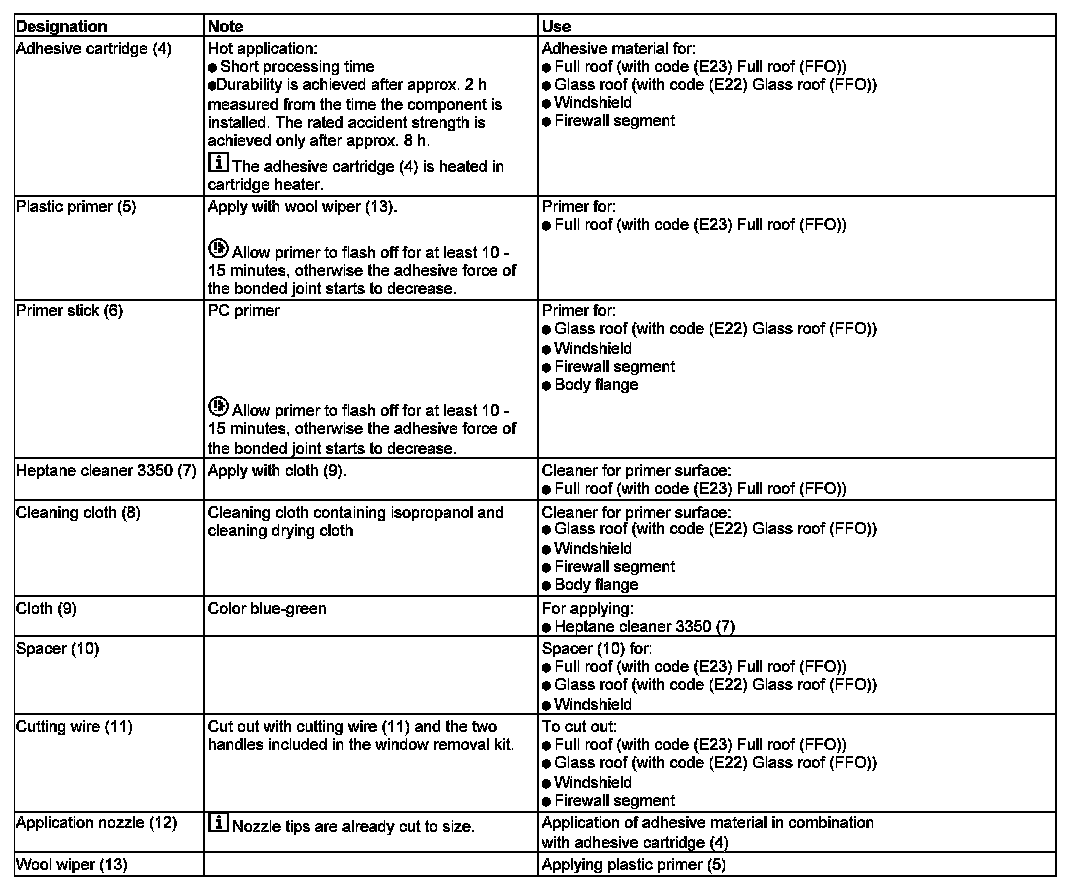

Use individual components as described in table below.
Deviation is not permissible, otherwise adhesive force of bonded connection is not ensured.
Allow corresponding primer to flash off for at least 10 minutes, however, for max. 15 minutes.

The crank window in the driver door must be opened during the curing time to prevent the component glued in from being pressed out by the air when the doors are closed. Avoid to open and close doors.
