Window Handle: Service and Repair

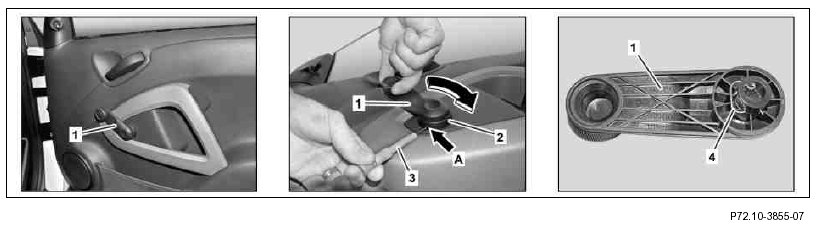

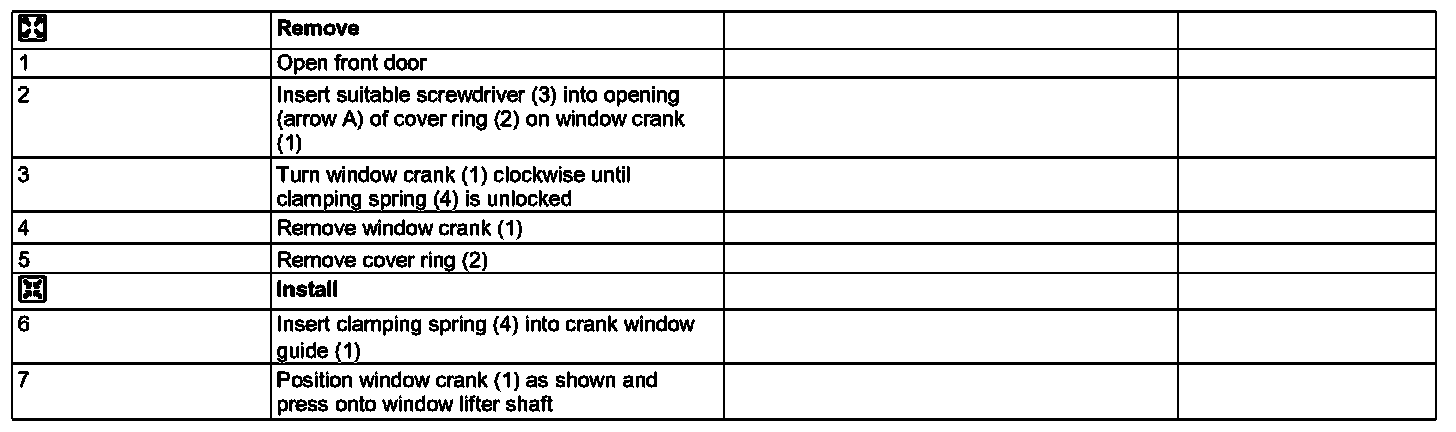

AR72.10-P-1100MCC Remove/Install Window Crank
- except CODE (V43) Power window







1 Window crank
2 Cover ring
3 Screwdriver
4 Clamping spring
