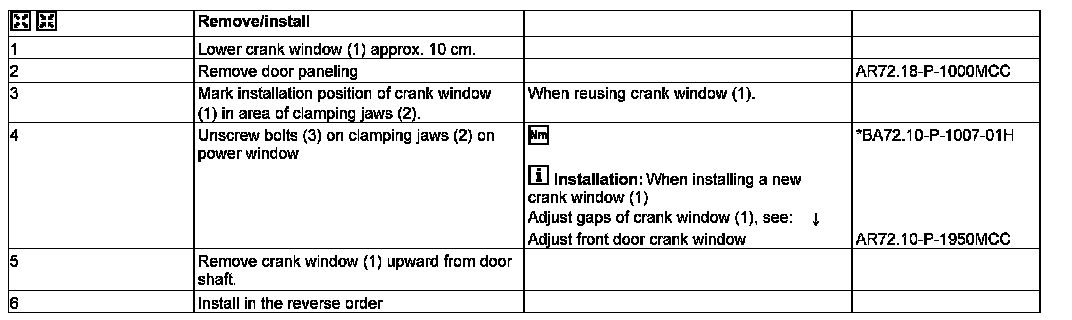

AR72.10-P-1900MCC Remove/Install Crank Window In Front Door



AR72.10-P-1900MCC Remove/Install Crank Window In Front Door

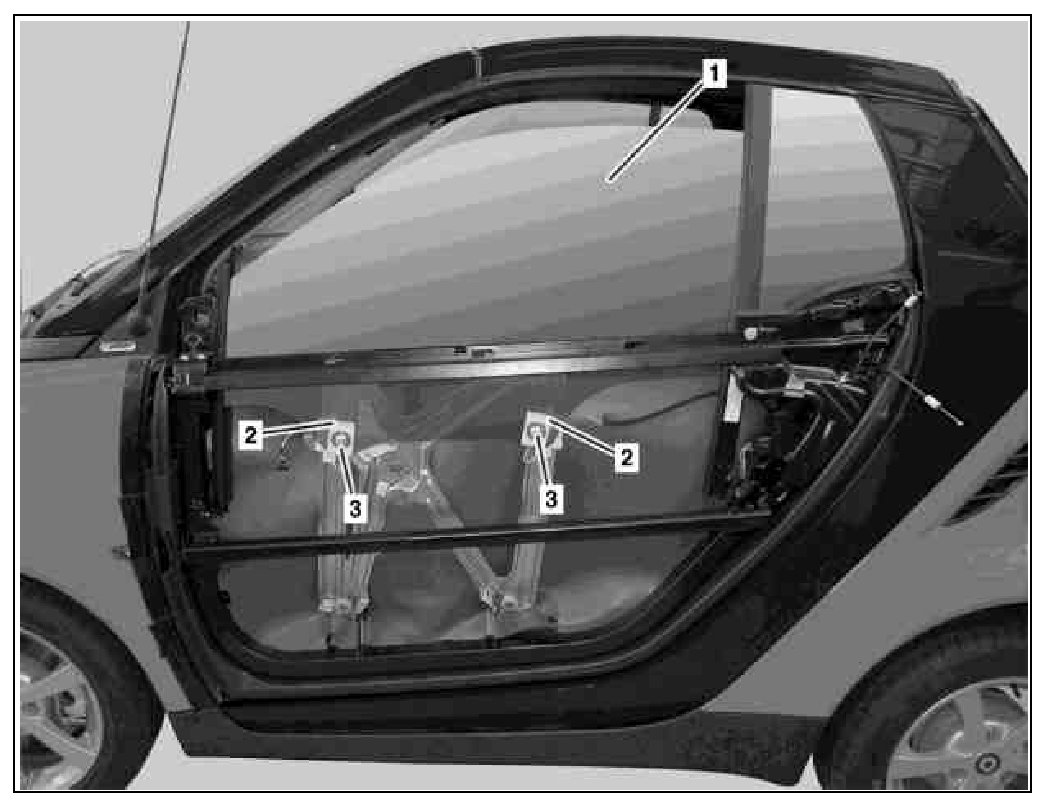

Shown on model 451.4 with code (V43) Power window







1 Crank window
2 Clamping jaw
3 Bolt
