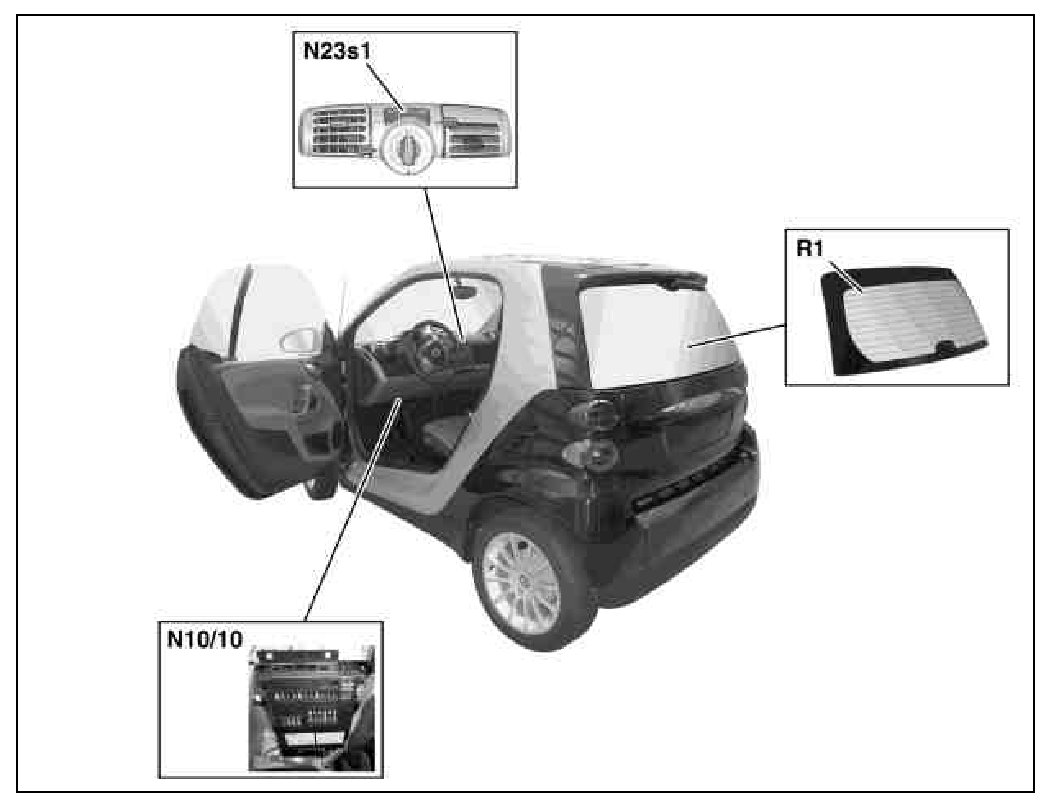

GF67.29-P-0003-01MCC Heated rear window (HRW), location of components



GF67.29-P-0003-01MCC Heated Rear Window (HRW), Location Of Components







N10/10 SAM control unit
N23s1 Heated rear window switch
R1 Heated rear window
