Transmission Mount: Service and Repair

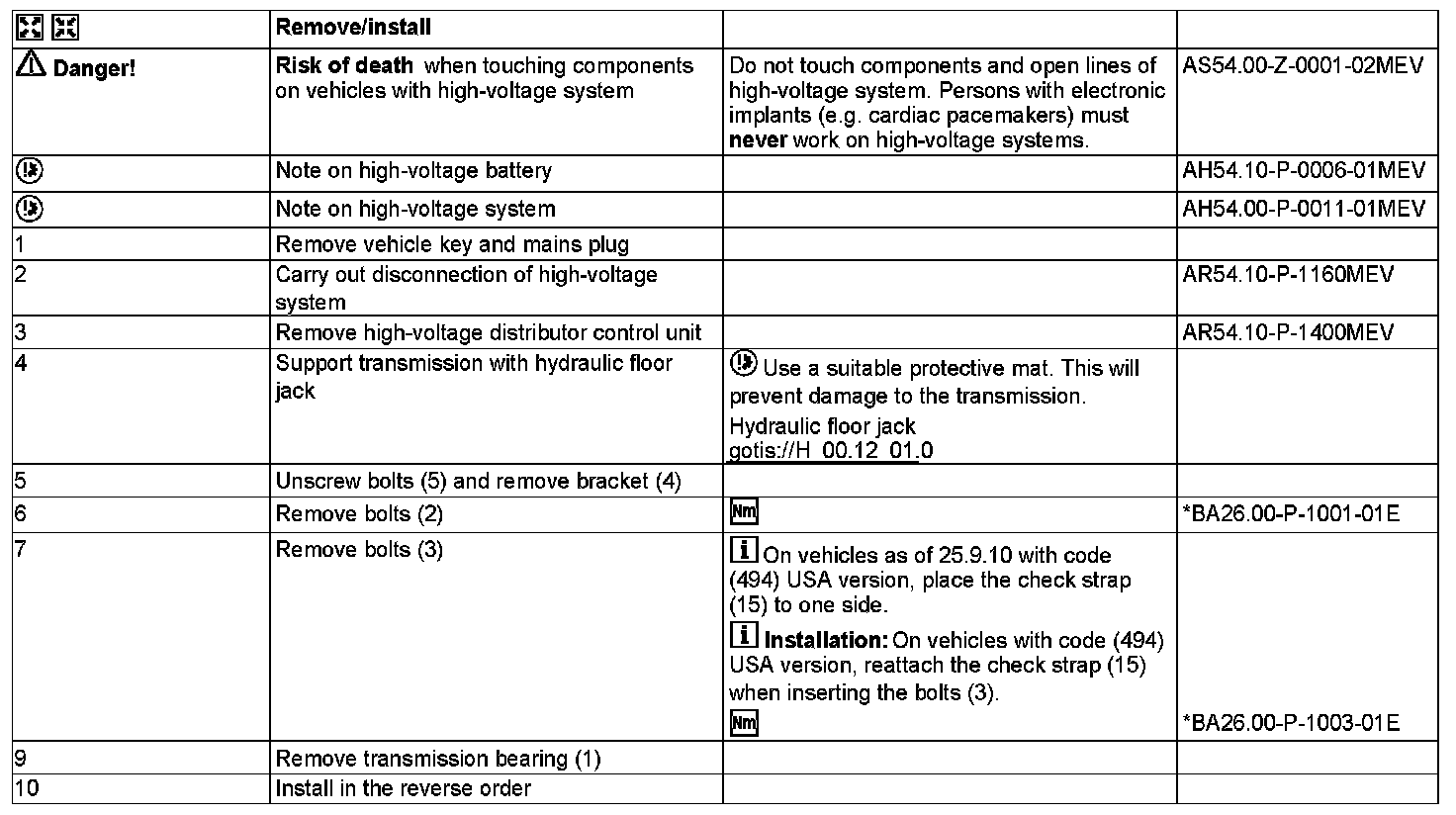

AR26.10-P-0030MEV Remove/install Bushing Of Transmission Mounting
- MODEL 451.391 /491 with ENGINE 780.009

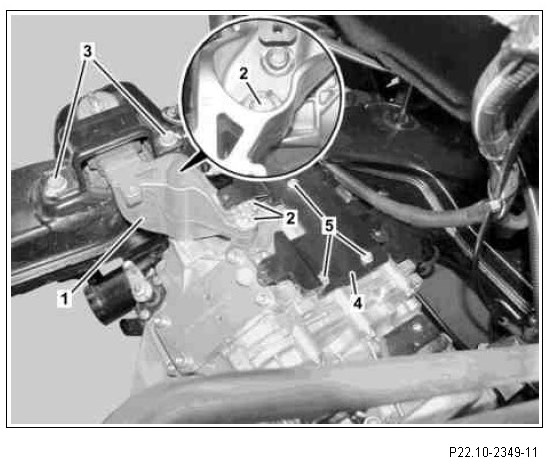

1 Transmission mount
2 Bolts
3 Bolts
4 Bracket
5 Bolts

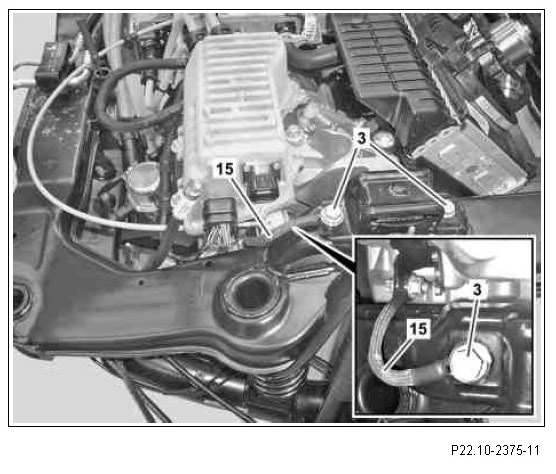

3 Bolts
15 Check strap (as of 25.9.10 with code (494) USA version)
