Shift Interlock: Service and Repair

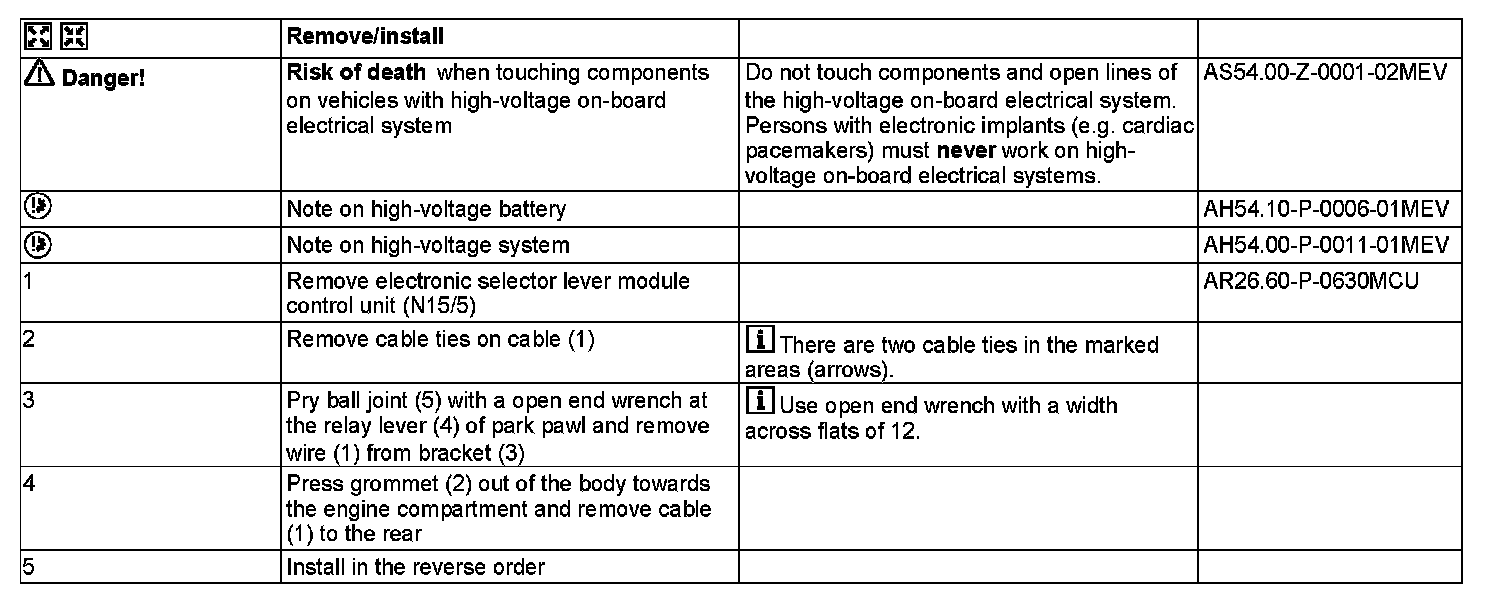

AR26.60-P-1000MEV Remove/install
Cable
For Parking Shift Lock

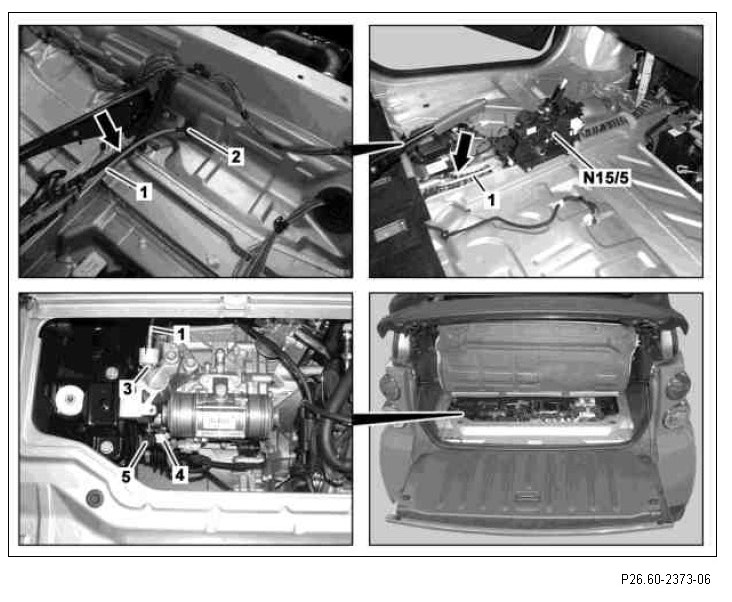

- MODEL 451.391/ 491
1
Cable
2
Grommet
3
Bracket
4
Relay lever
5
Ball joint
N15/5
Electronic selector lever module control unit
