Transmission: Service and Repair

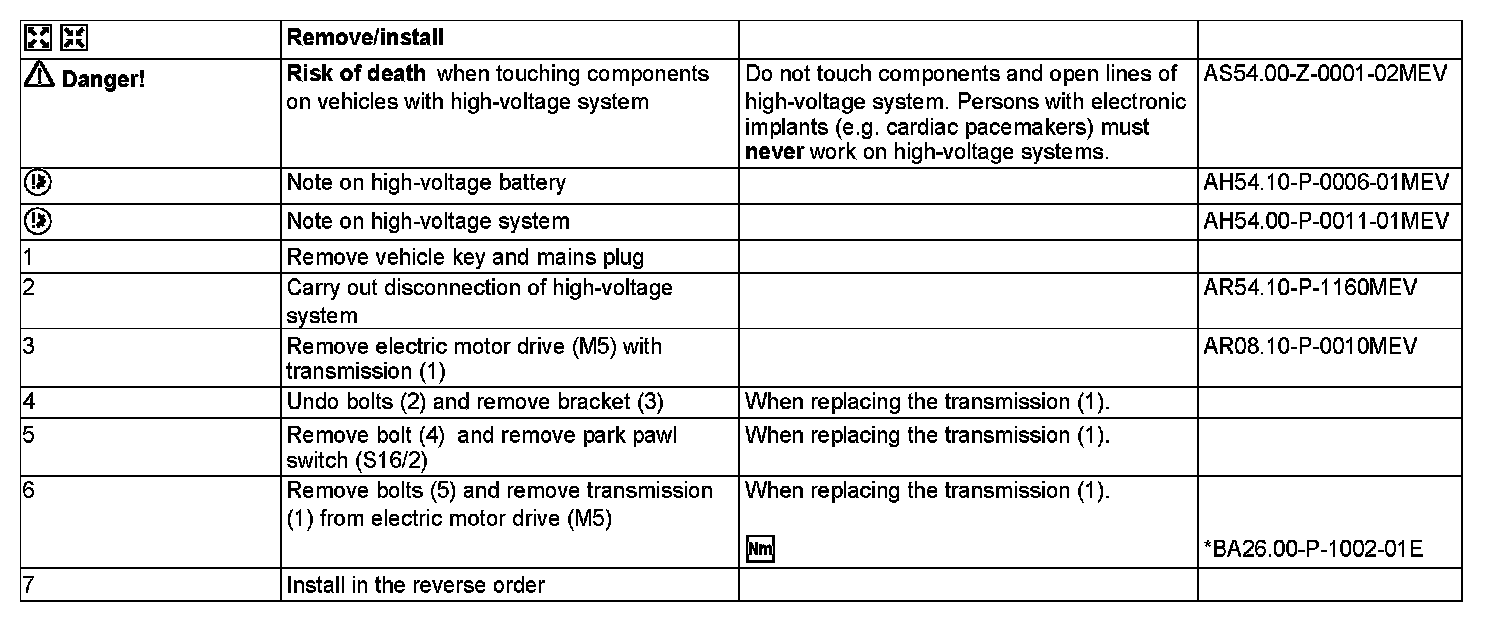

AR26.10-P-0020MEV Remove/install Transmission
- MODEL 451.391/ 491

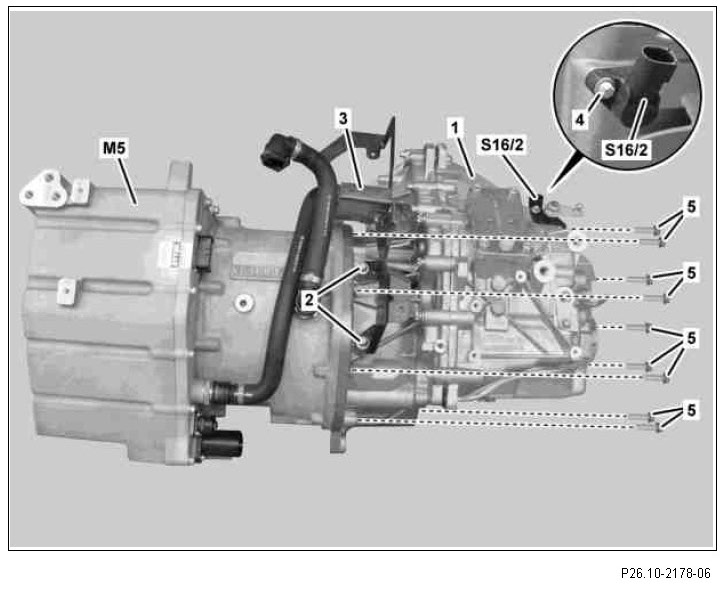

1 Transmission
2 Bolts
3 Bracket
4 Screw
5 Bolts

M5 Electric drive motor
S16/2 Park pawl switch
