Front Steering Knuckle: Service and Repair

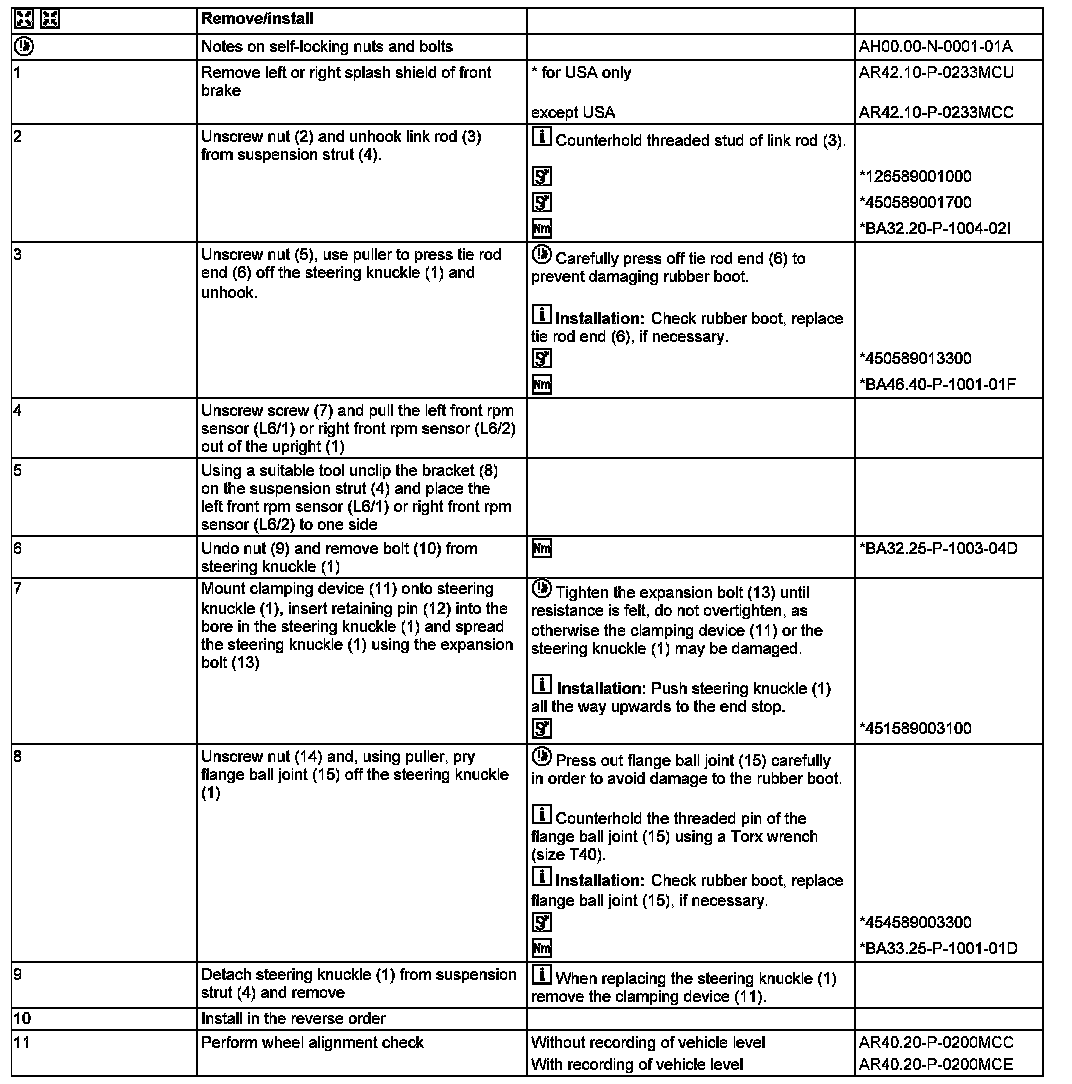

AR33.25-P-0400MCC Remove/Install Steering Knuckle

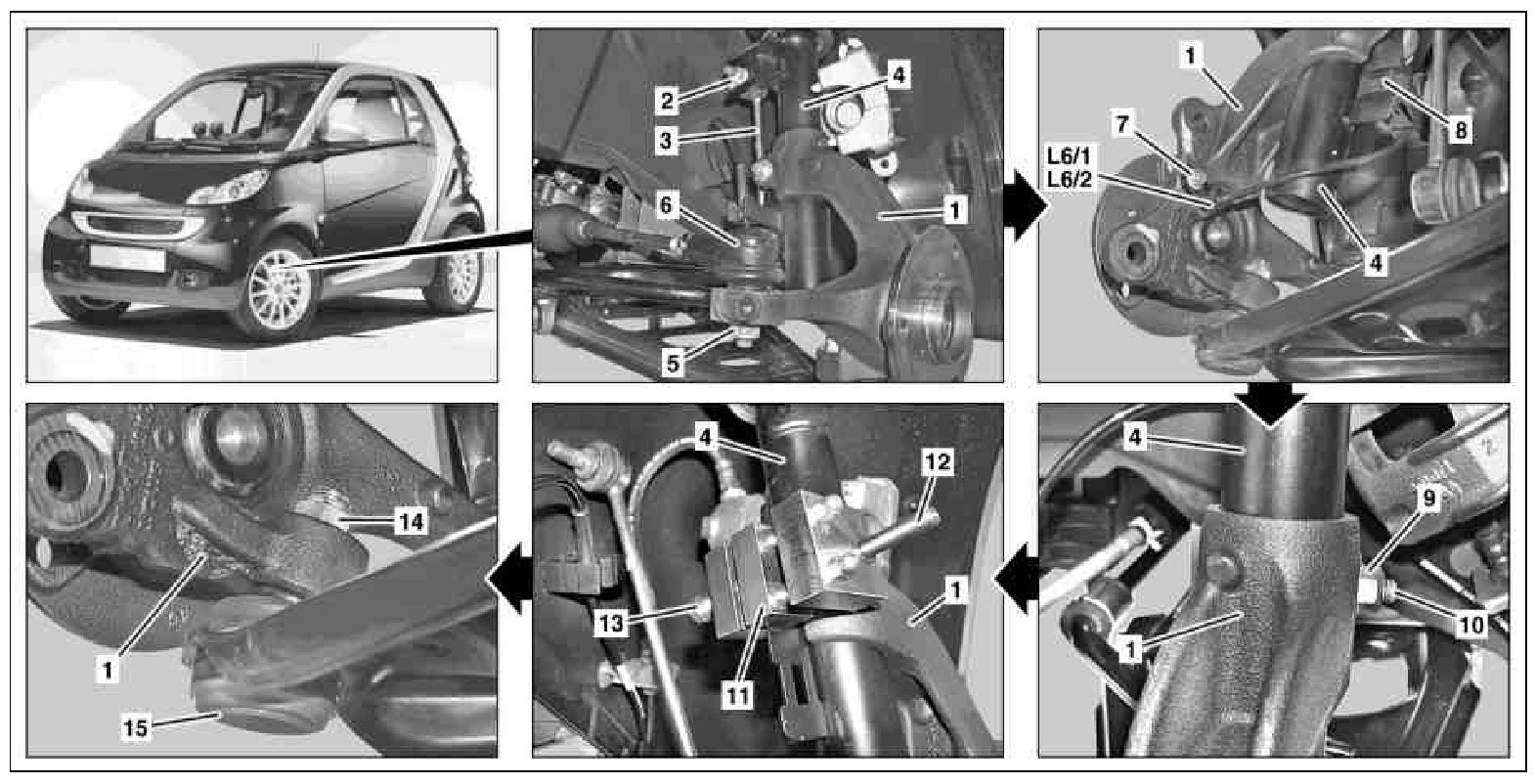

1 Steering knuckle
2 Nut
3 Link rod
4 Suspension strut
5 Nut
6 Tie rod end
7 Screw
8 Bracket
9 Nut
10 Screw
11 Tensioning device
12 Retaining pin
13 Expansion bolt
14 Nut
15 Flange ball joint
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor





































126 589 00 10 00, Screwdriver bit







450 589 00 17 00, Tool assortment for stabilizer assembly







450 589 01 33 00, Puller

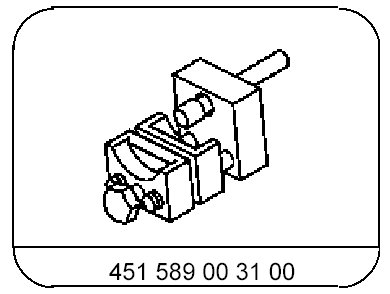

451 589 00 31 00, Tensioning device







454 589 00 33 00, Puller
