Cross-Member: Service and Repair

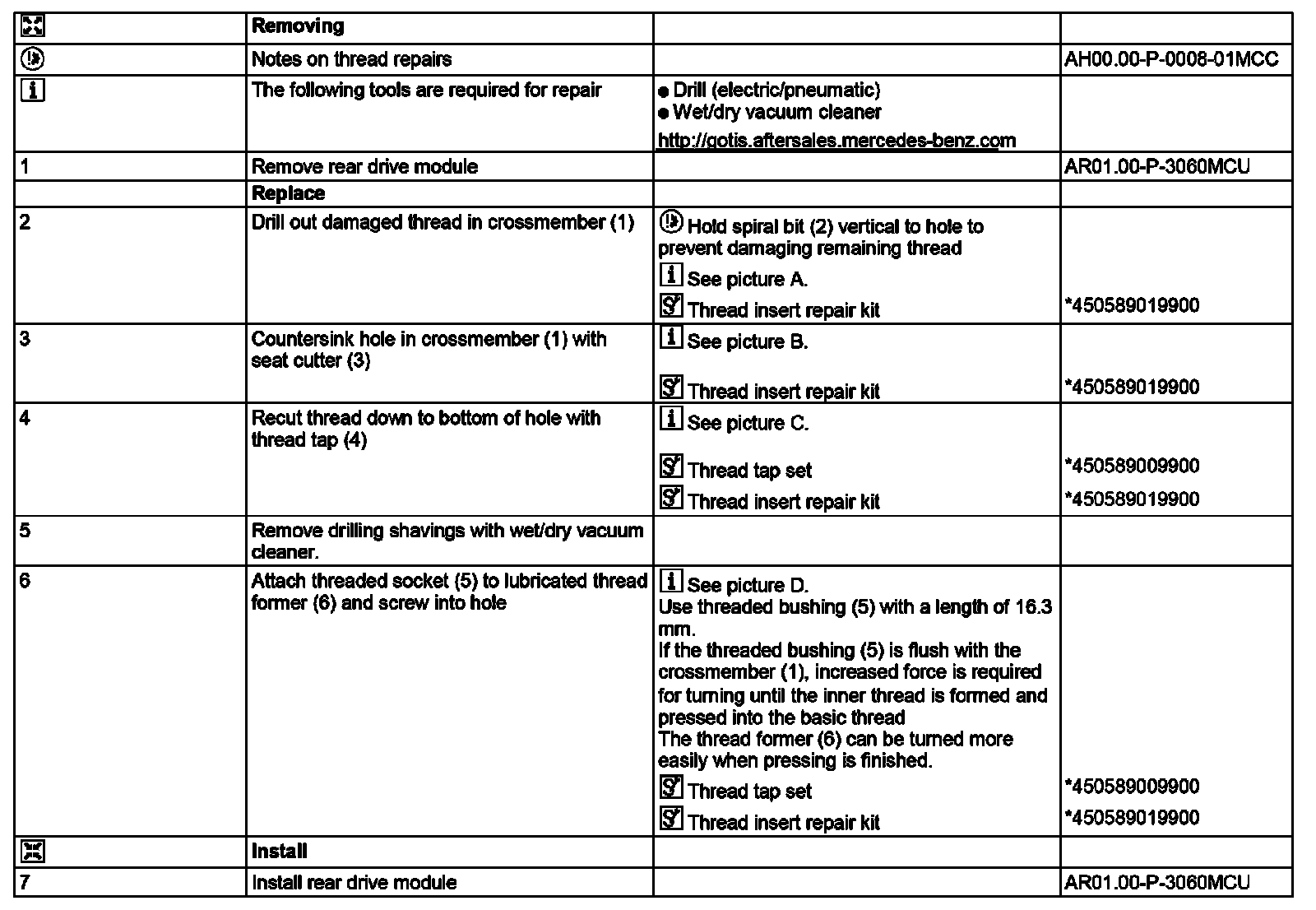

AR61.10-P-6200MCU Replace Thread For Integral Carrier Mount

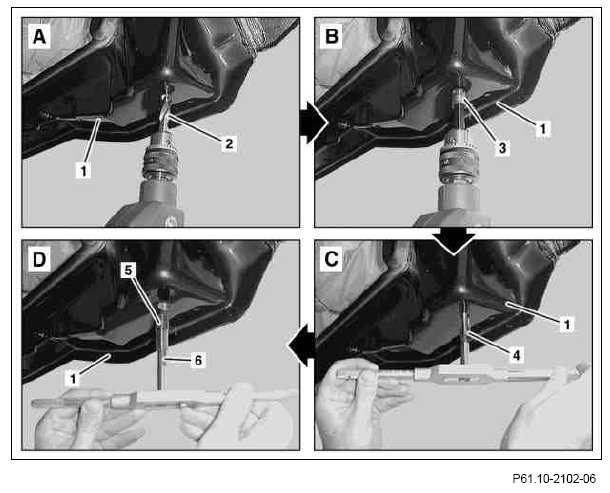

1 Crossmember
2 Twist drill bit
3 Seat cutter
4 Tap
5 Threaded bush
6 Thread former







450 589 00 99 00, Thread tap set

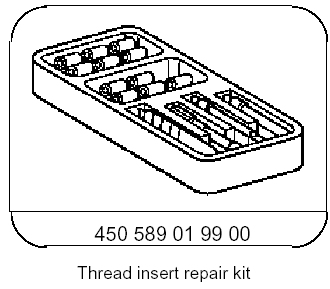

450 589 01 99 00, Thread insert repair kit
