Control Arm Bushing: Service and Repair

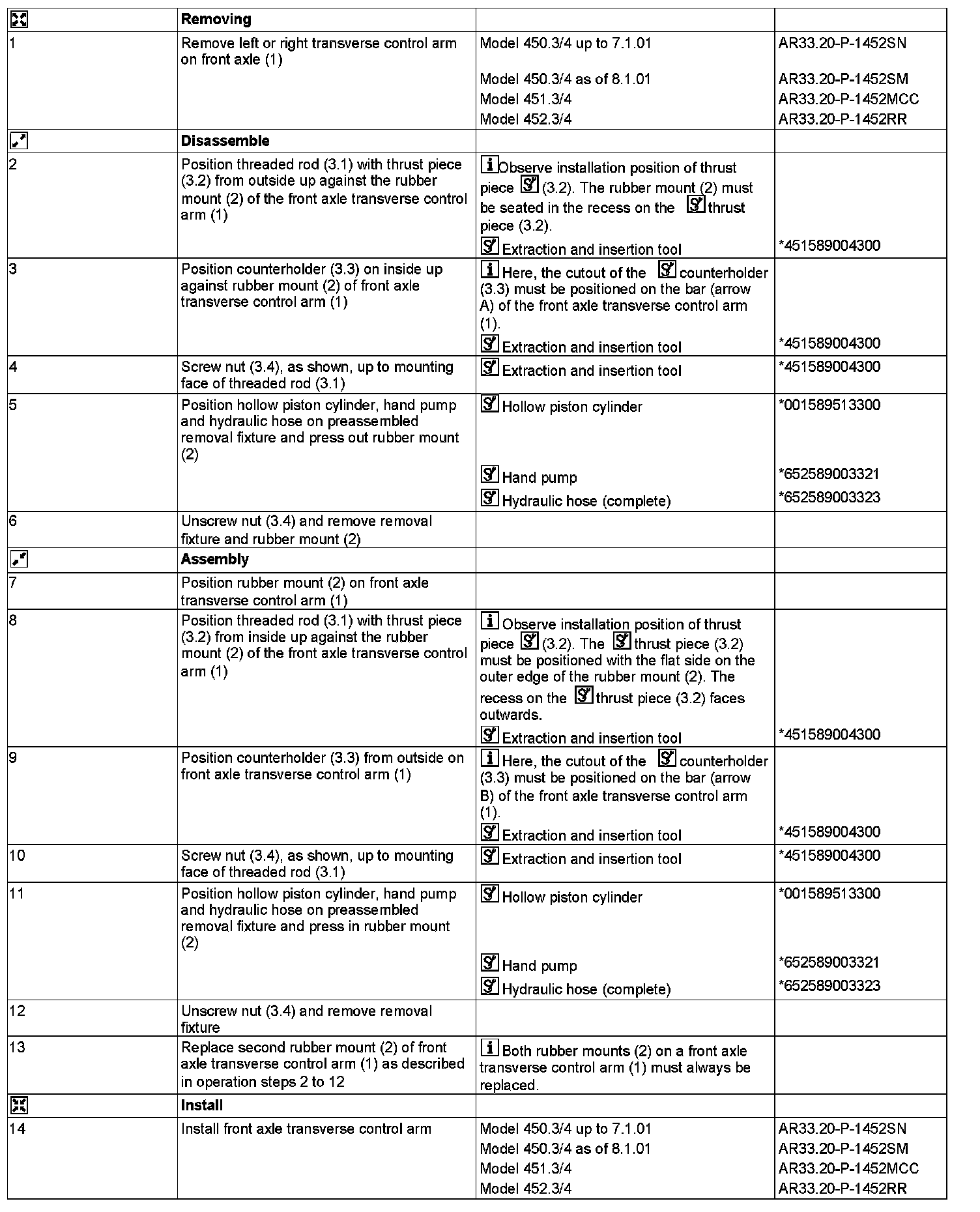

AR33.20-P-0400MCC Remove/install Rubber Mounts Of Transverse Control Arms
- MODEL 450.3 /4, 451.3 /4, 452.3 /4

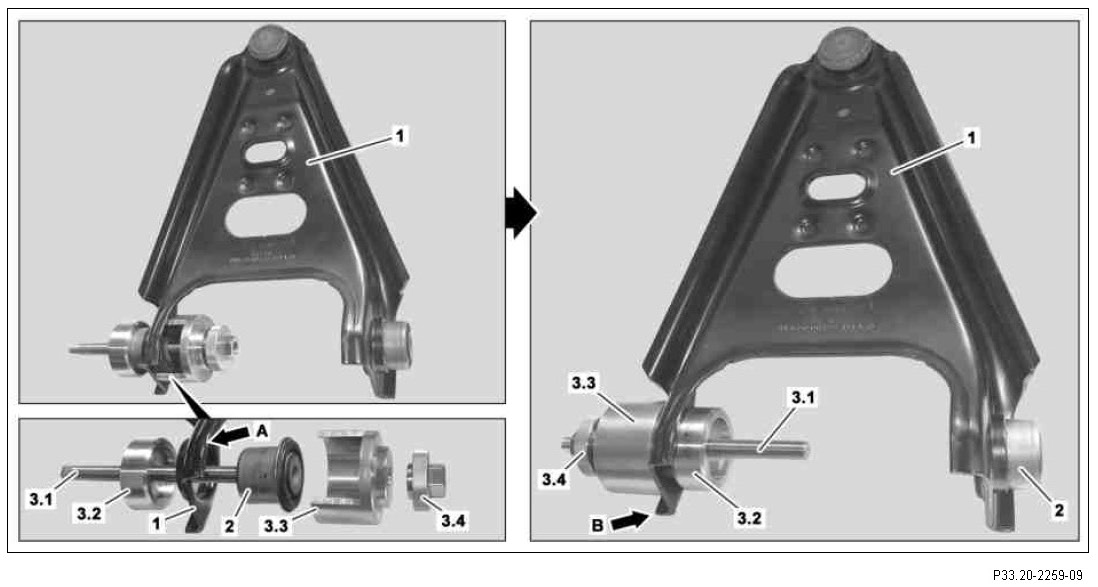

1 Transverse control arm to front axle
2 Rubber bushing
3.1 Threaded rod
3.2 Thrust piece
3.3 Counterholder
3.4 Nut
