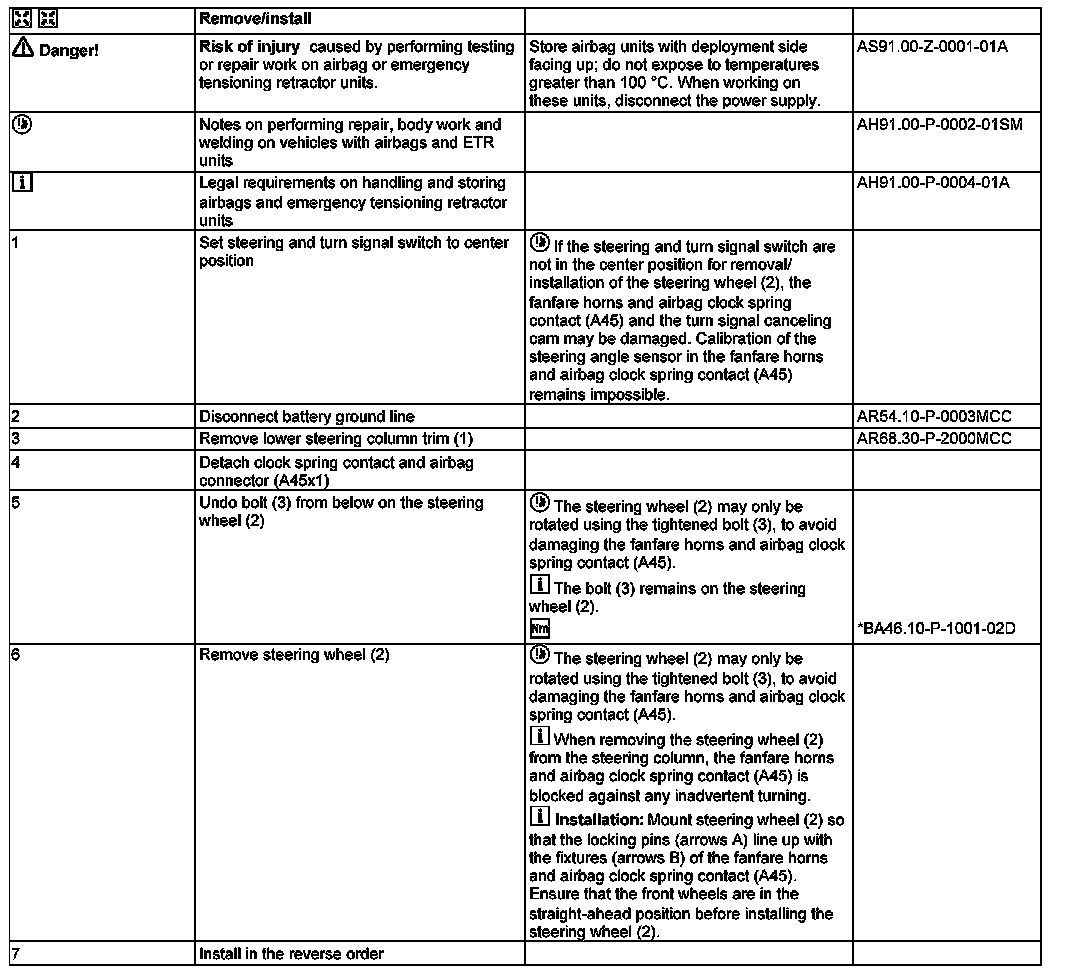

AR46.10-P-0100MCC Remove/Install Steering Wheel
AR46.10-P-0100MCC Remove/Install Steering Wheel

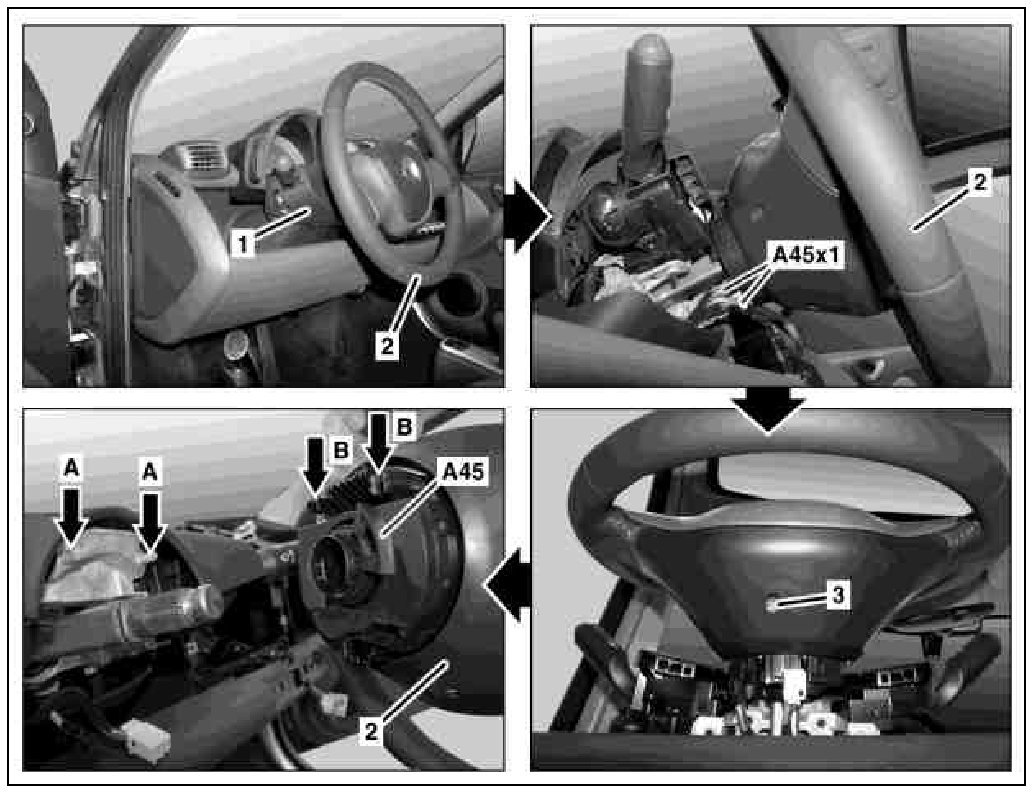

1 Lower steering column trim
2 Steering wheel
3 Screw
A45 Fanfare horns and airbag clock spring contact
A45x1 Clock spring contact and airbag connector
AR46.10-P-0100MCC Remove/Install Steering Wheel
1 Lower steering column trim
2 Steering wheel
3 Screw
A45 Fanfare horns and airbag clock spring contact
A45x1 Clock spring contact and airbag connector
